Mercedes Benz Truck
>>
2008
>>
R 320 CDI (251.122) V6-3.0L DSL Turbo (642.950)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>
System Specifications
>>
BA62.30-P-1000-01E Crossmember and Front Reinforcement
BA62.30-P-1000-01E Crossmember and Front Reinforcement
BA62.30-P-1000-01E Crossmember And Front Reinforcement

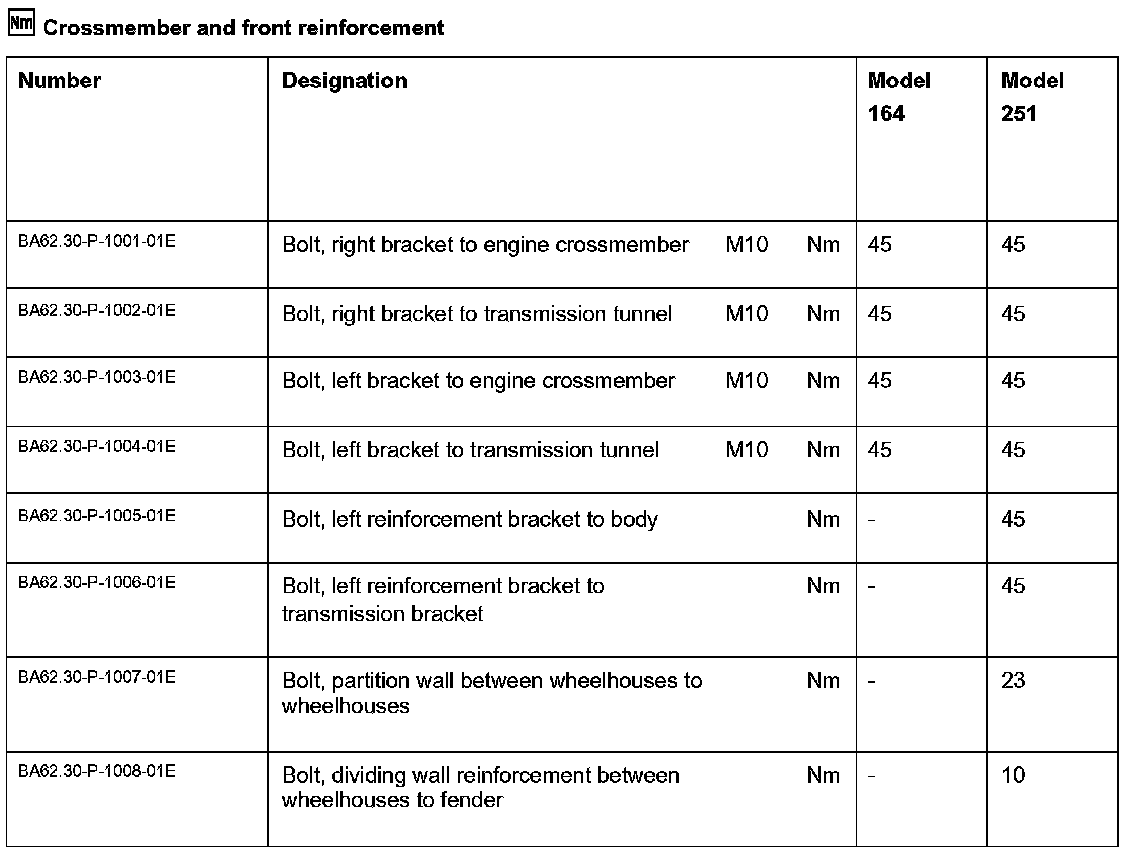

Crossmember And Front Reinforcement:
