BE40.30-P-1000-06I Test Values For Distance and Comparison Measurement on Front Axle



BE40.30-P-1000-06I Test values for distance and comparison measurement on front axle

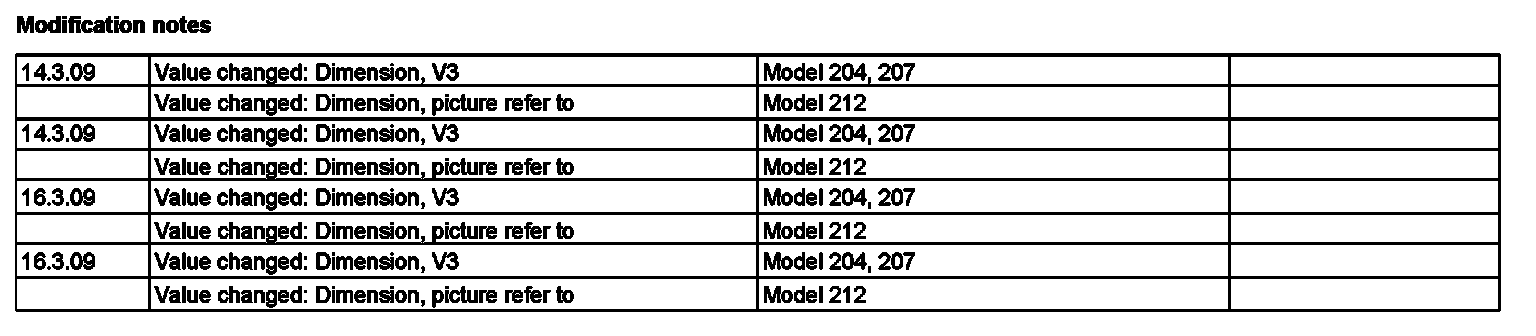

Modification Notes:

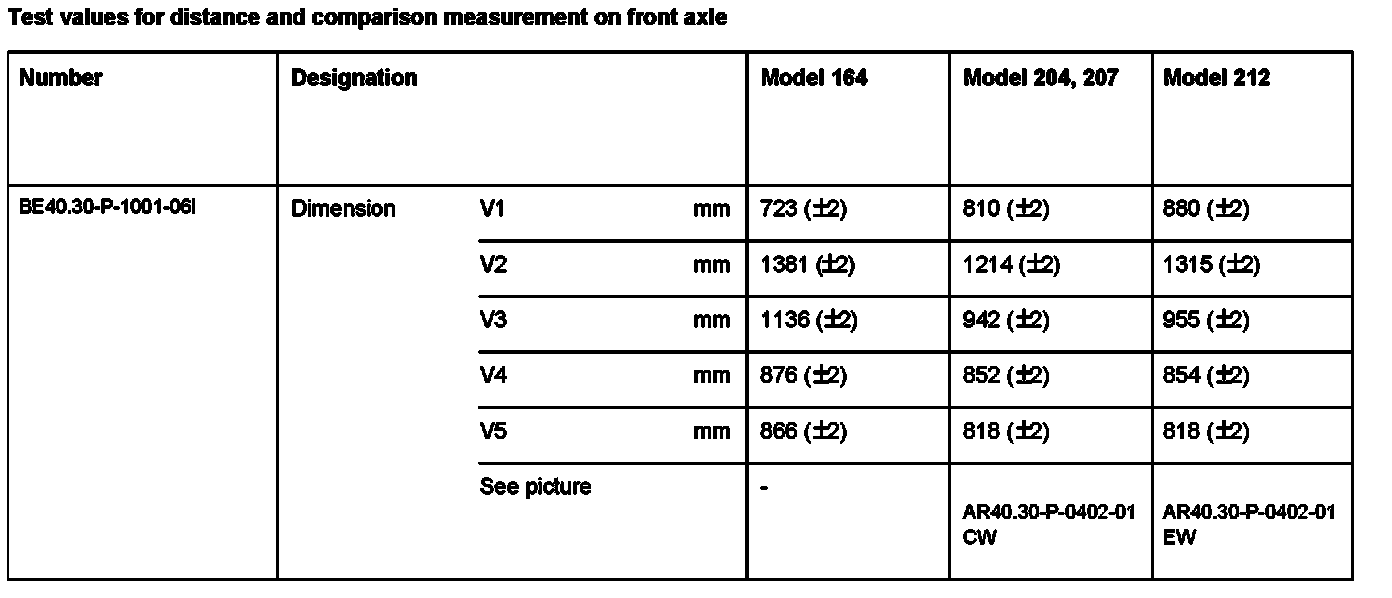

Test Values For Distance And Comparison Measurements On Front Axle:

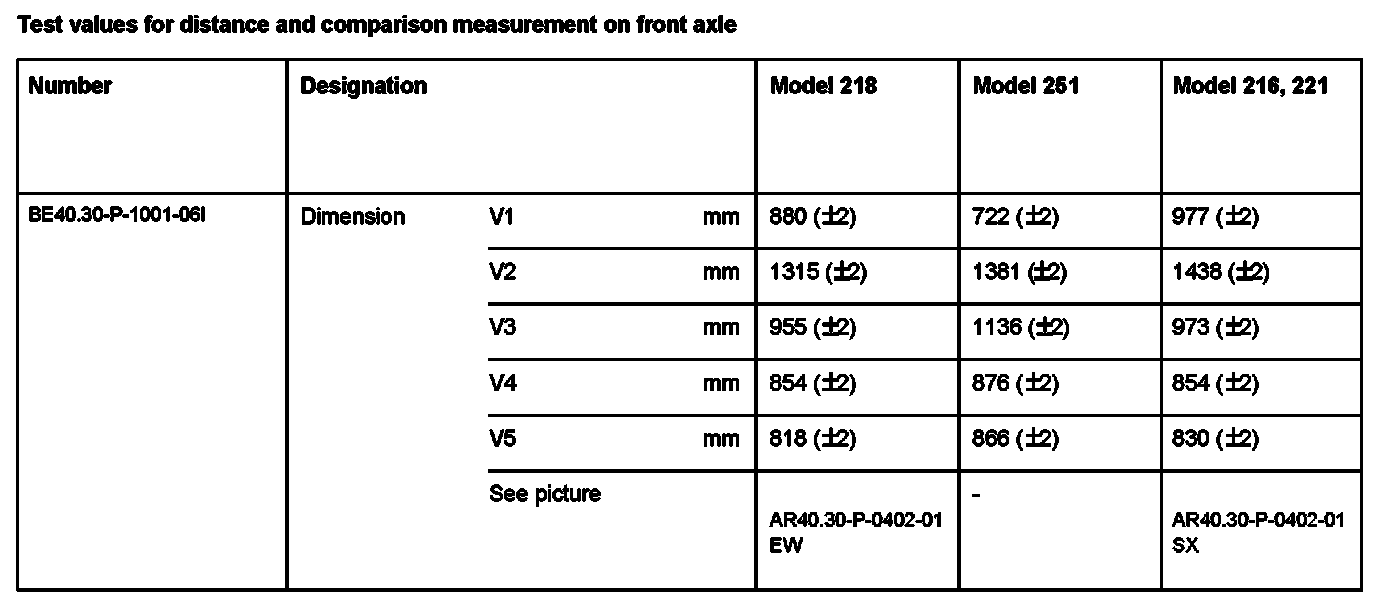

Test Values For Distance And Comparison Measurements On Front Axle:
