Rain Sensor: Service and Repair
AR82.30-P-7800RT Remove/Install Rain/light Sensor

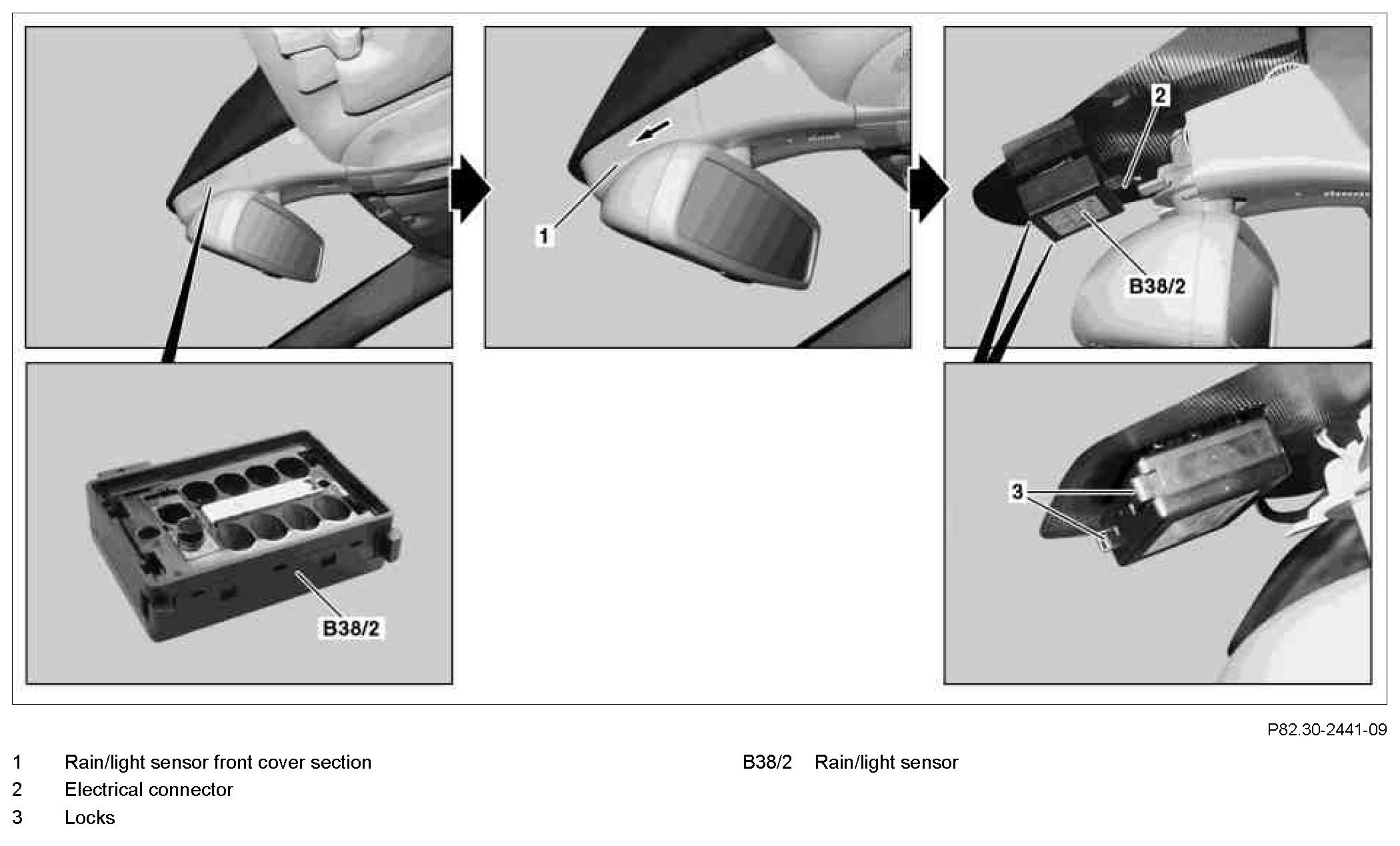

Component Identification:

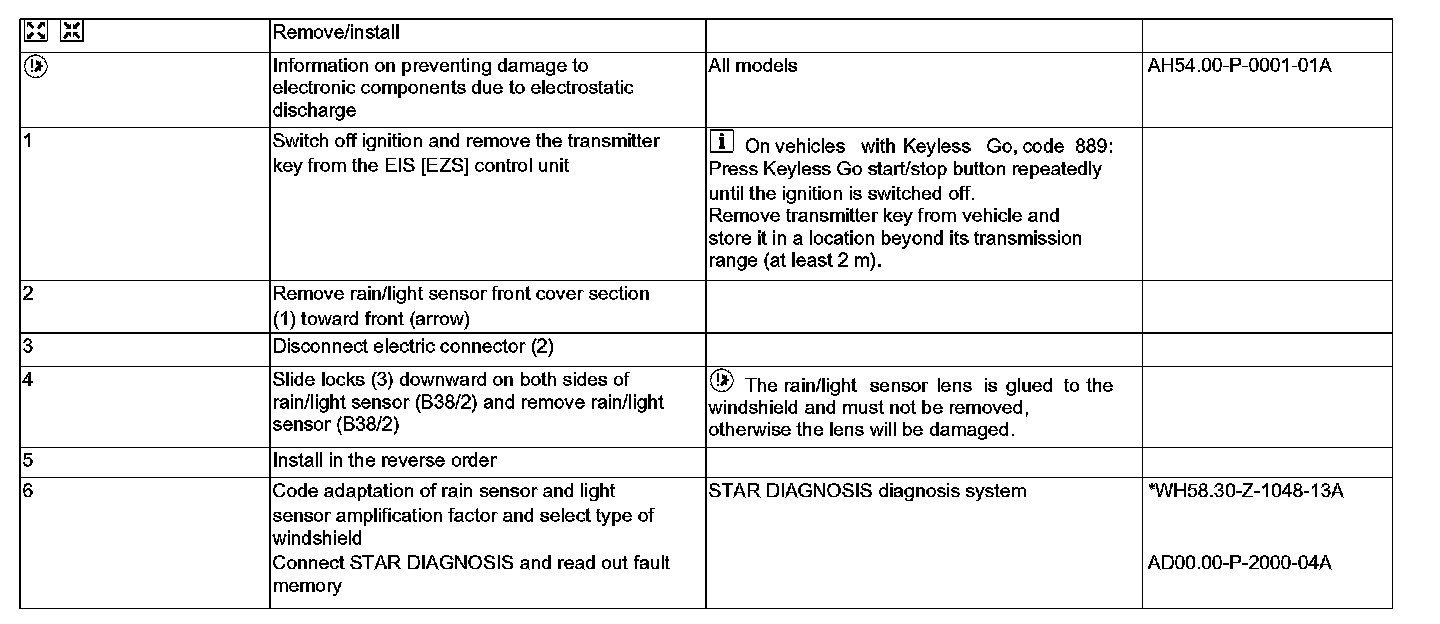

Steps 1 - 6:

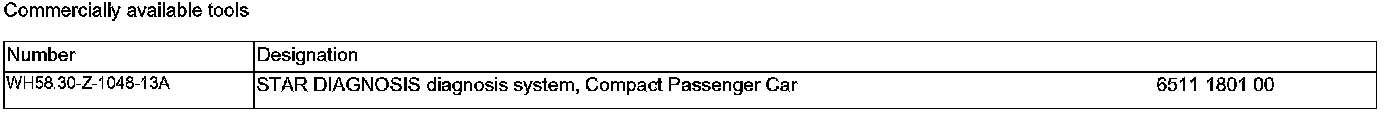

Commercially Available Tools:
