AR91.60-P-0810RT Remove/Install WSS Sensor



AR91.60-P-0810RT Remove/Install WSS Sensor
- Front seat on passenger side only

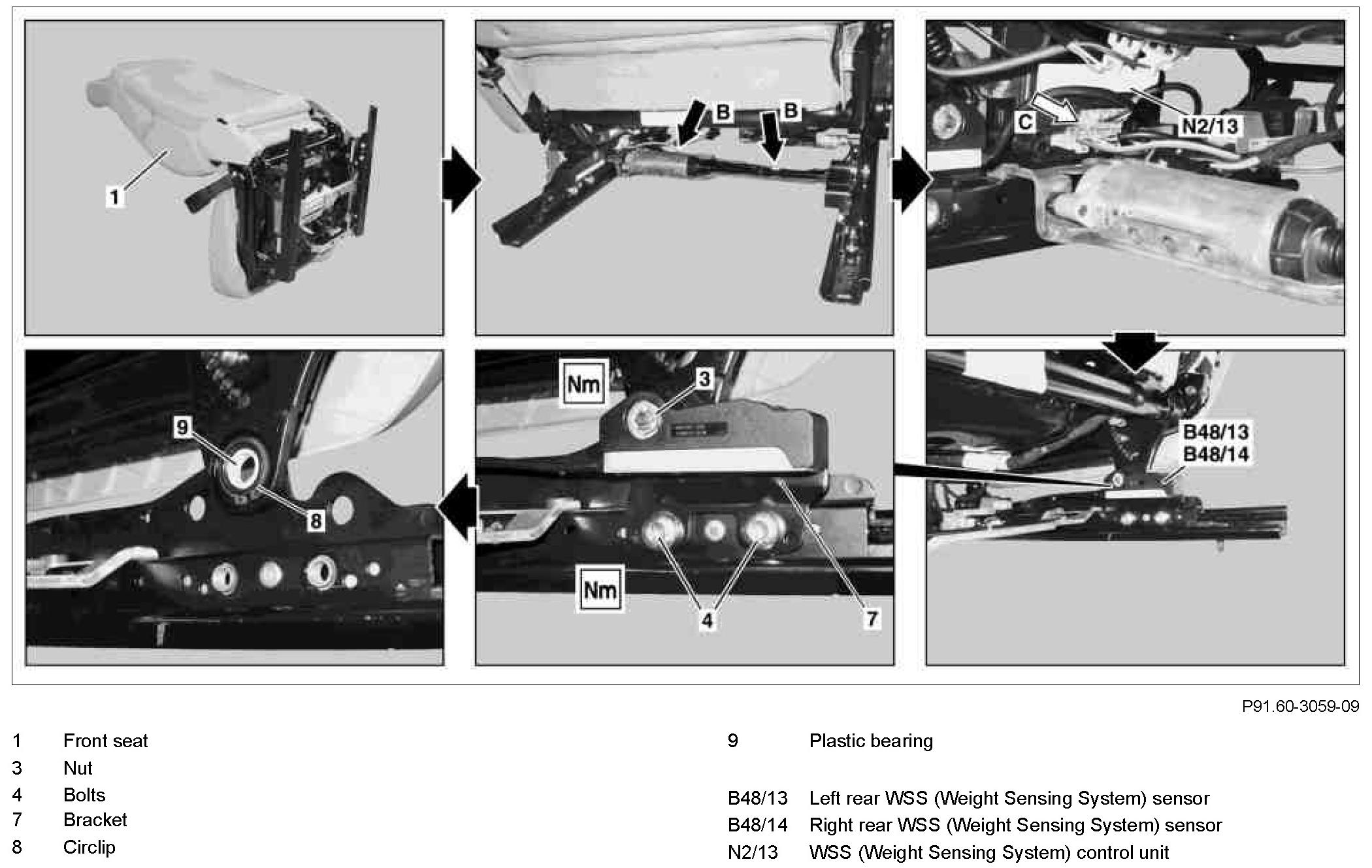

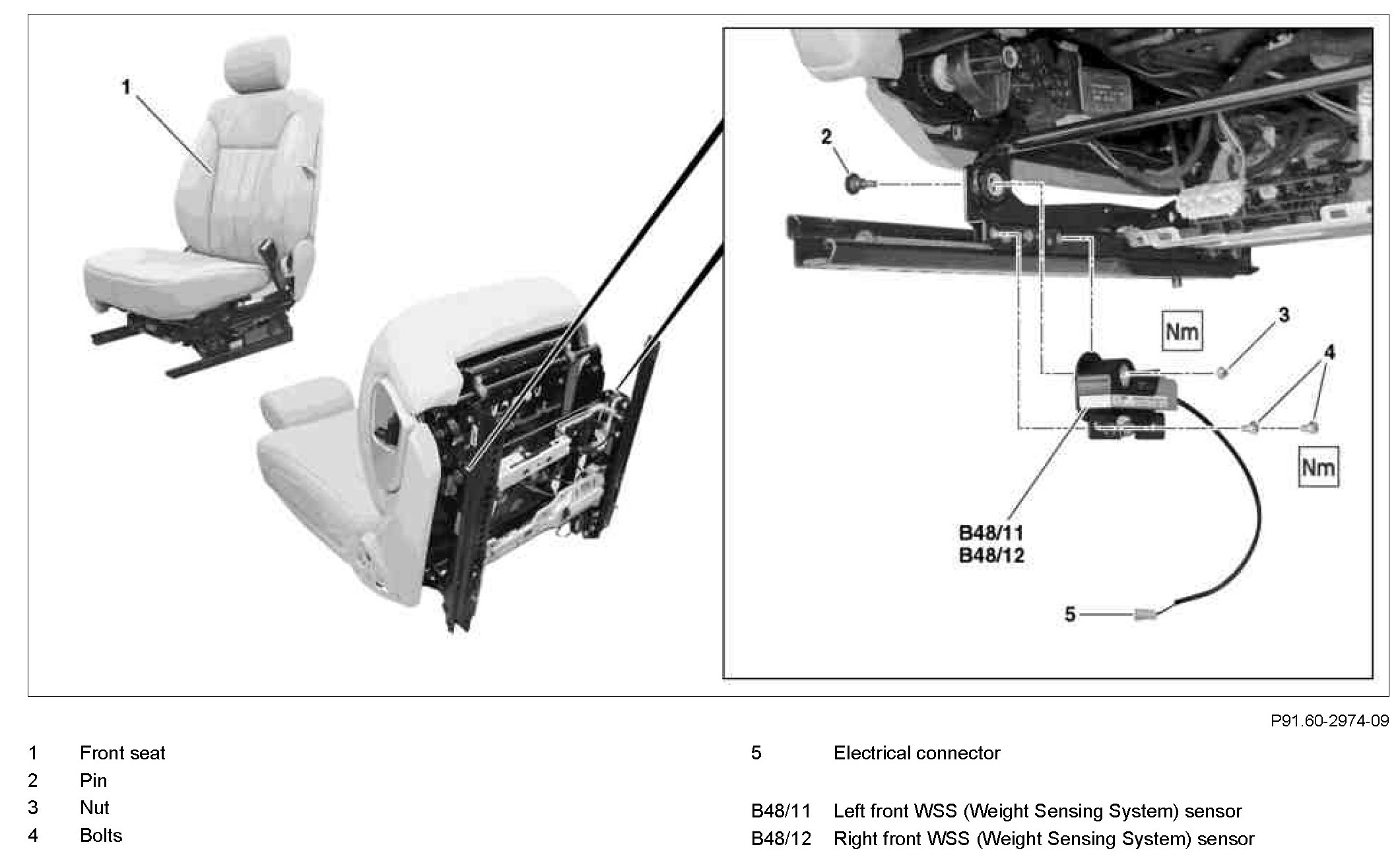

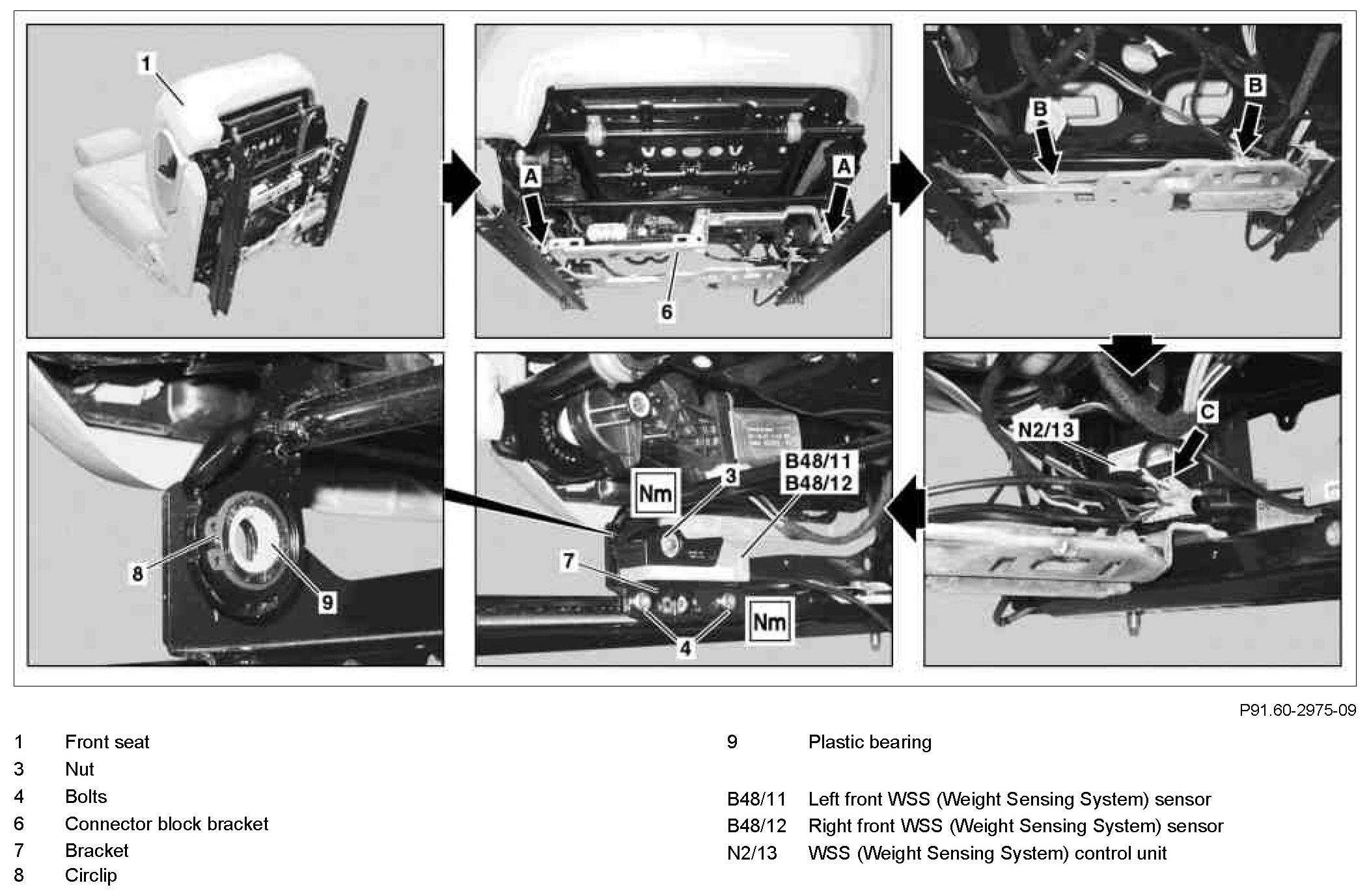

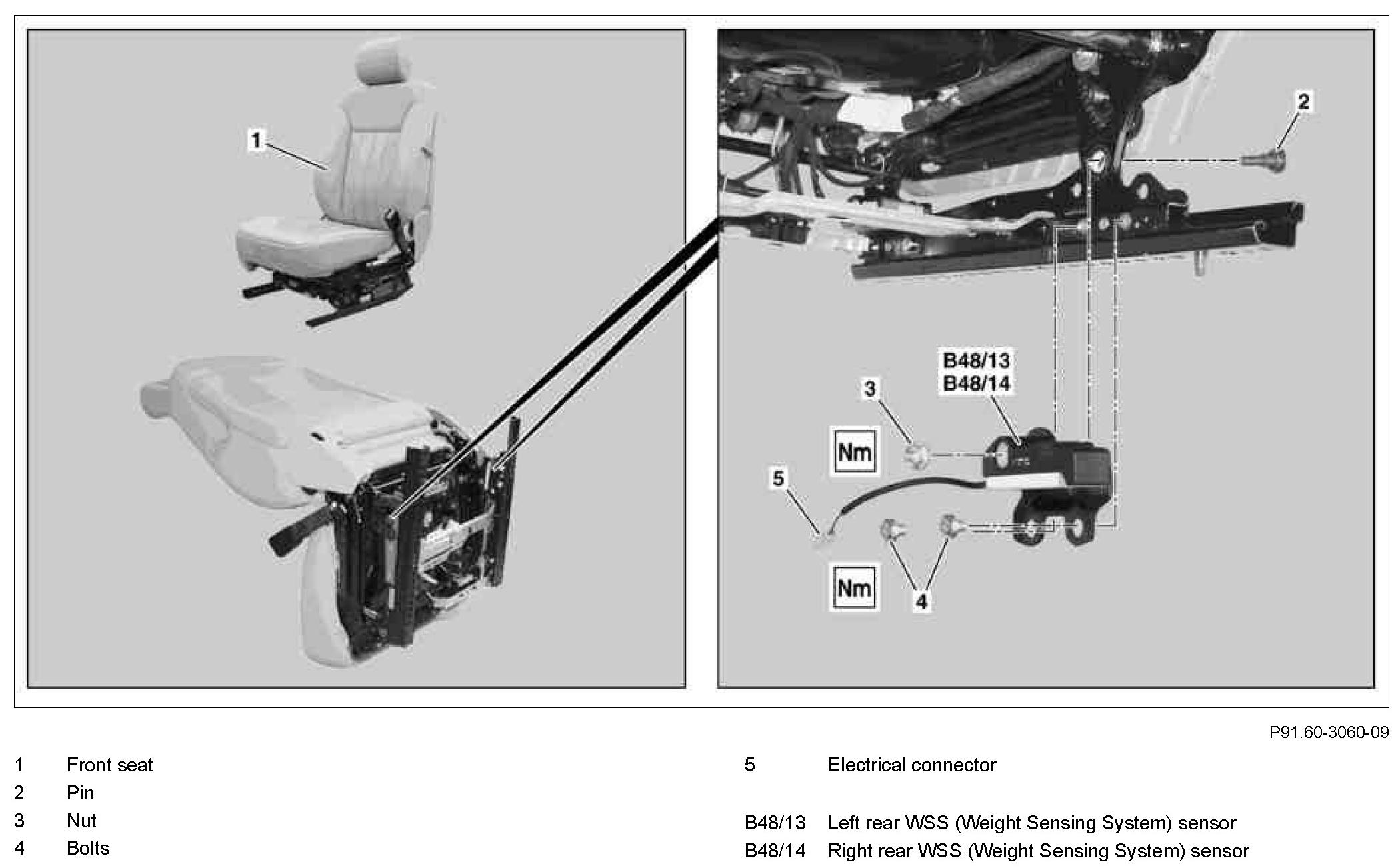

Component Identification:




Component Identification:




Component Identification:




Component Identification:

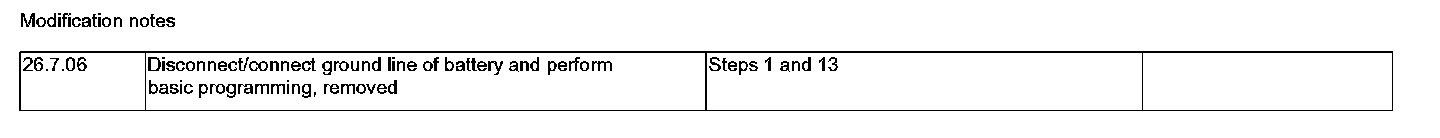

Modification Notes:

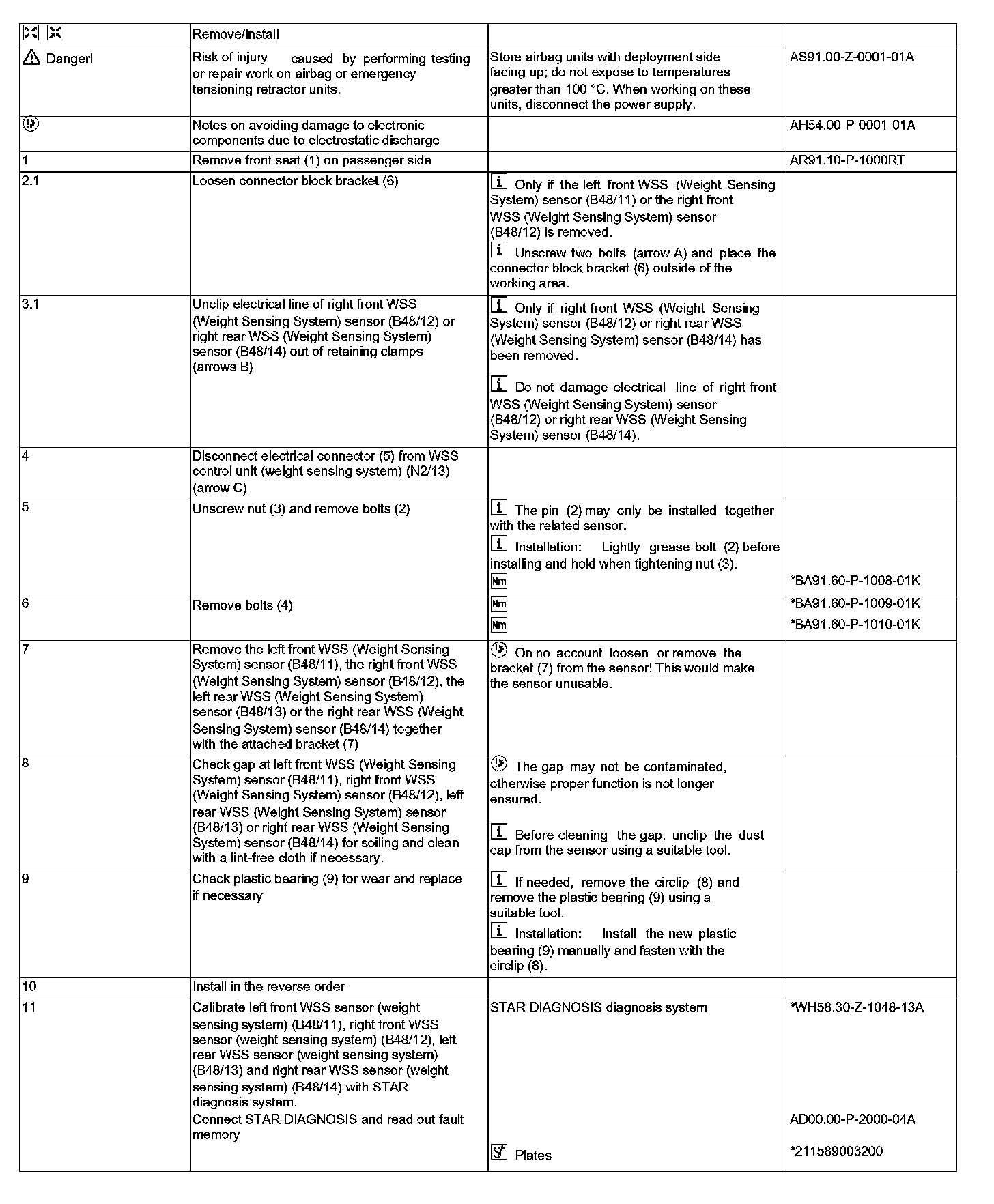

Steps 1 - 11:

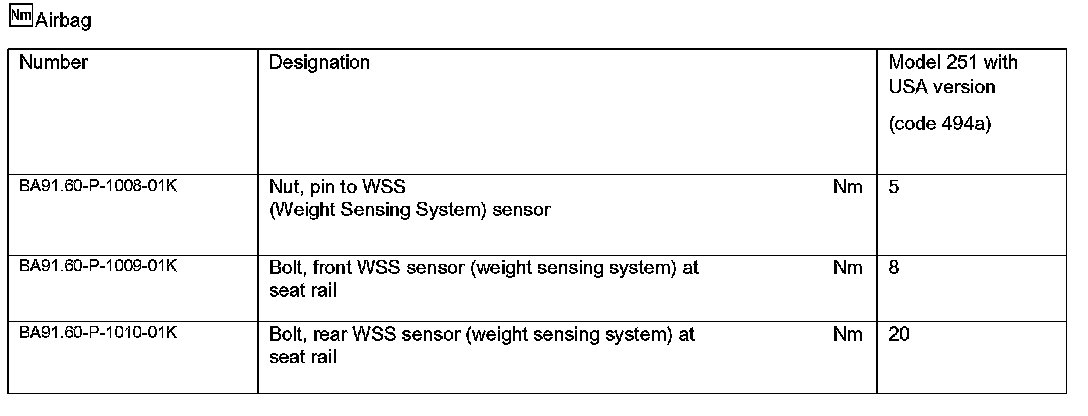

Airbag:

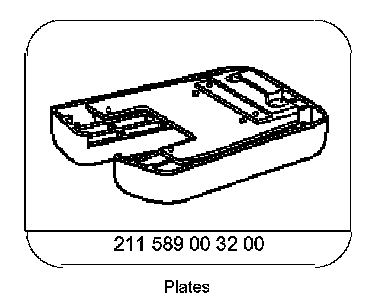

Special Tools:

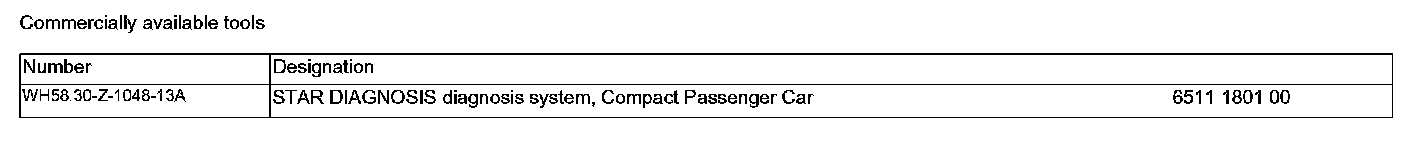

Commercially Available Tools:
