AR91.60-P-0730RT Remove/Install Sensor For Sidebag/Windowbag
AR91.60-P-0730RT Remove/Install Sensor For Sidebag/Windowbag
AR91.60-P-0730RT Remove/Install Sensor For Sidebag/Windowbag

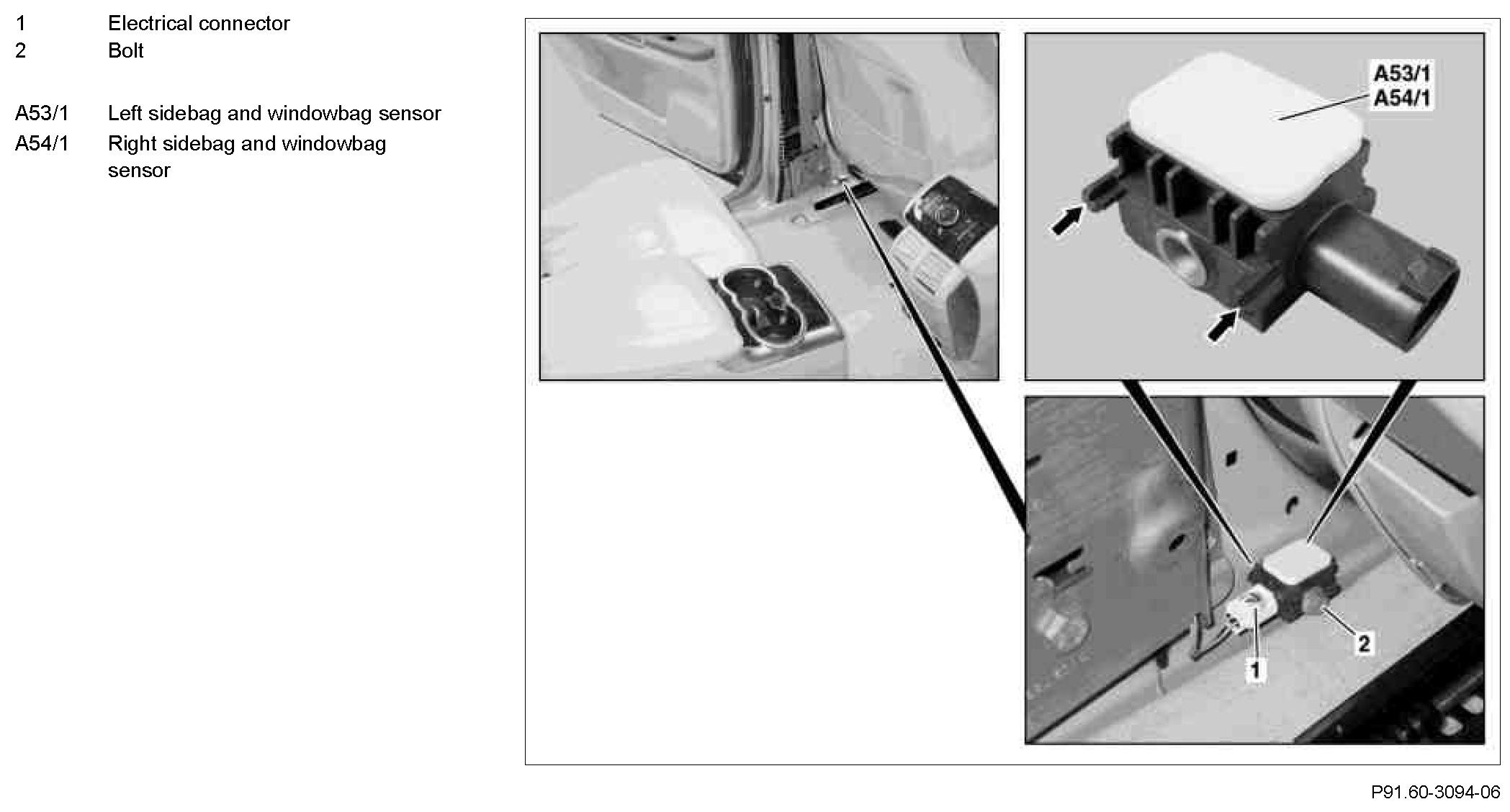

Component Identification:
Modification Notes:

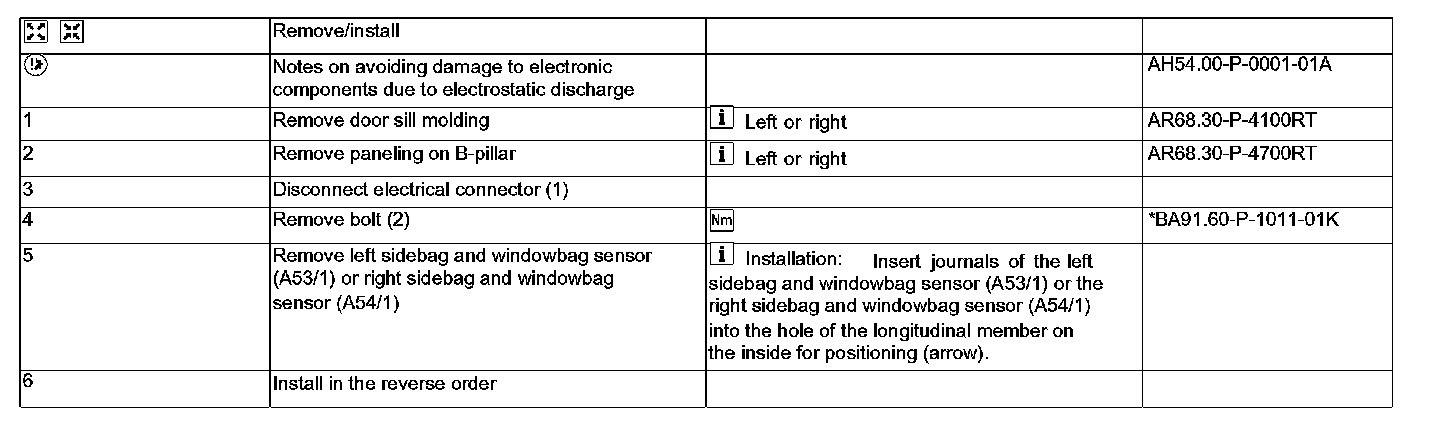

Steps 1 - 6:

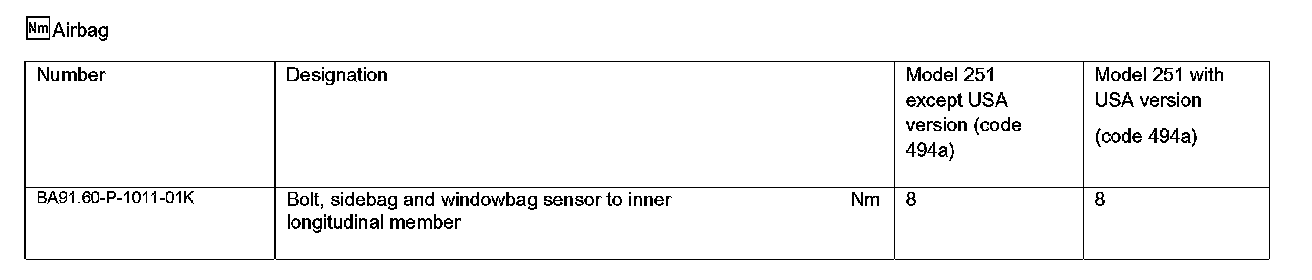

Airbag:
