GF83.57-P-2127RTK In-Car Temperature Sensor, Component Description

GF83.57-P-2127RTK In-car Temperature Sensor, Component Description
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

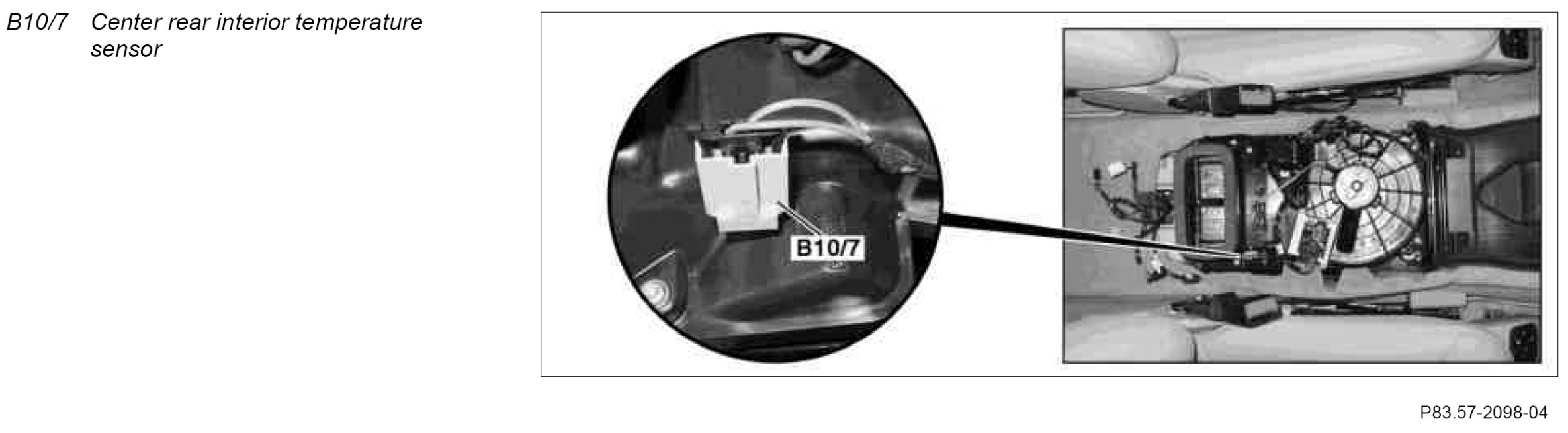

Component Identification:

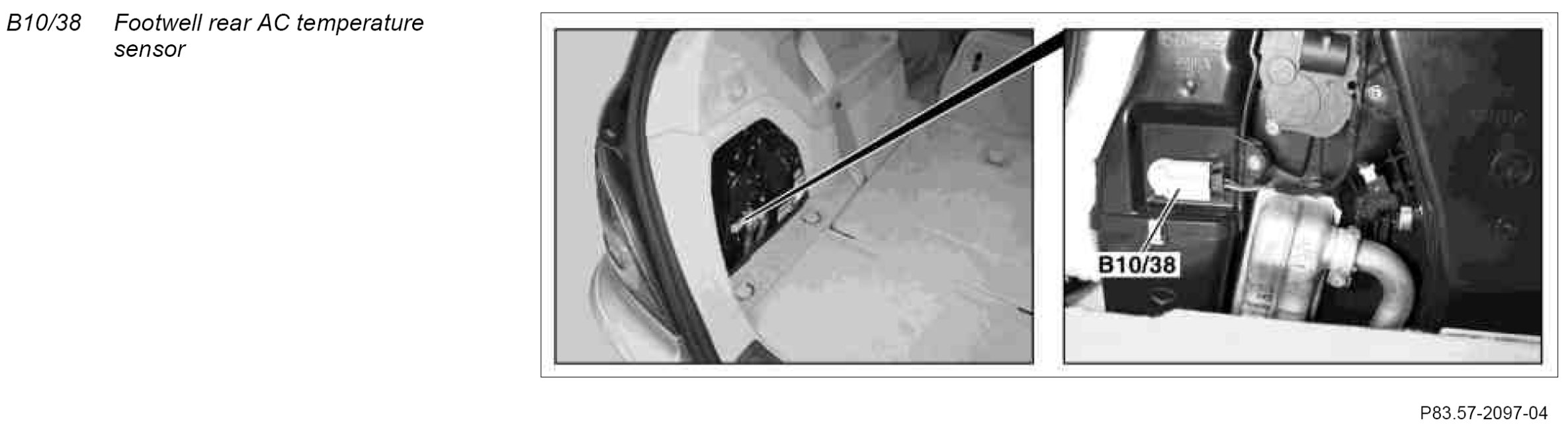

Component Identification:

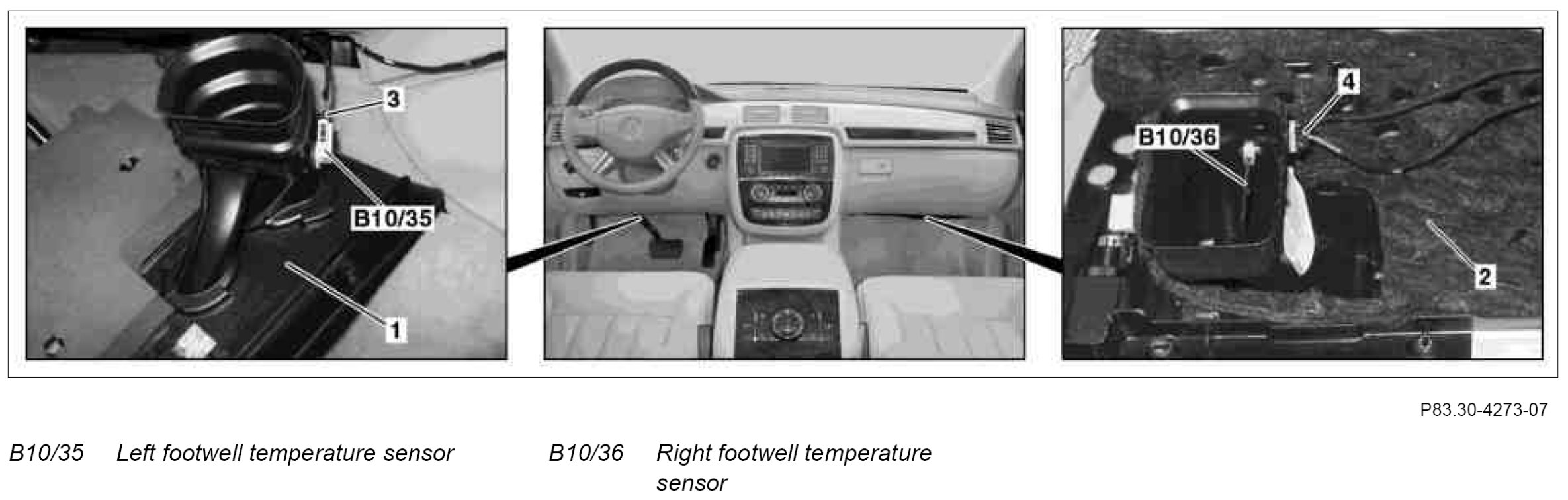

Component Identification:

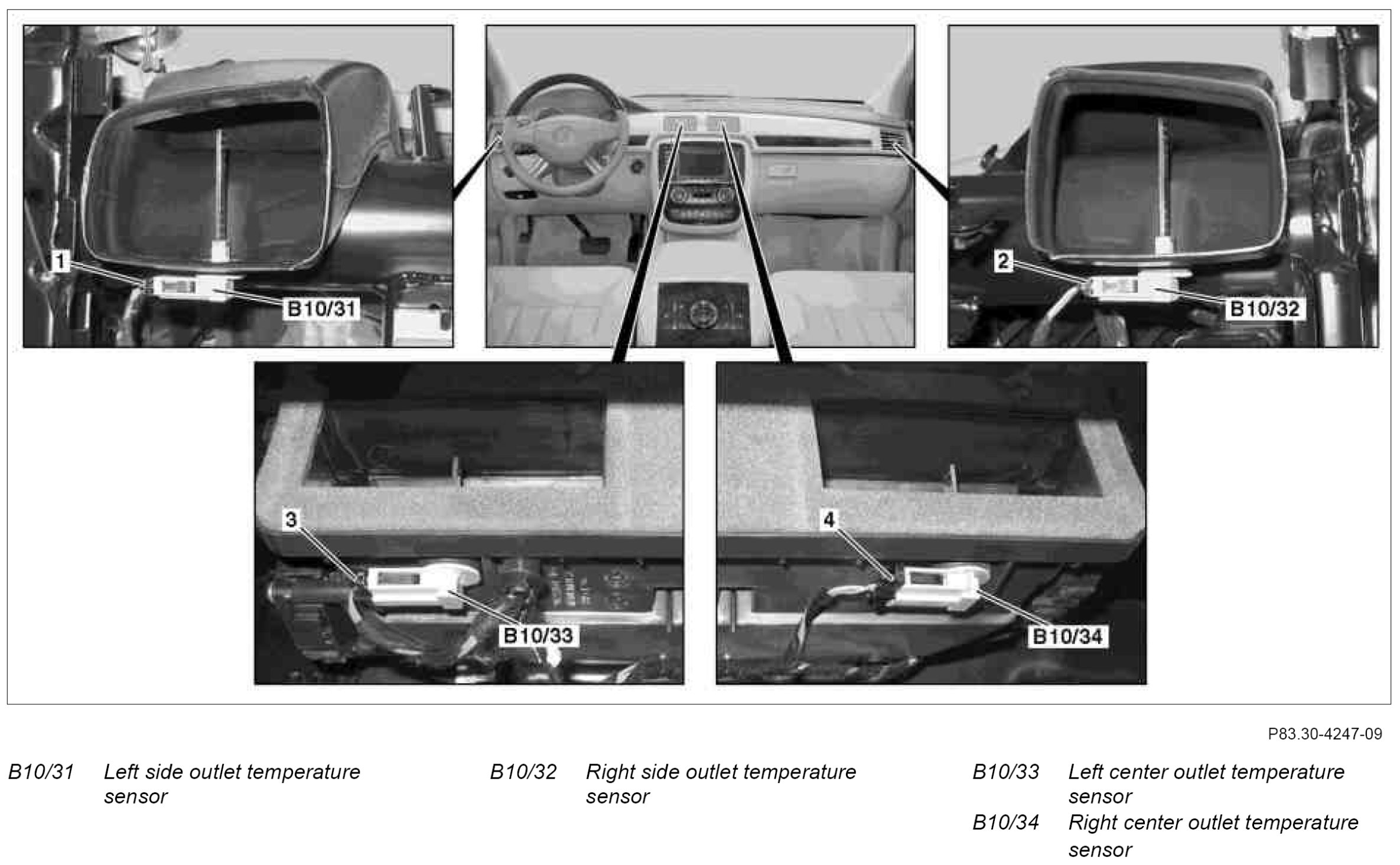

Component Identification:

Task
The temperature sensors measure the temperature of the discharged air at the particular air flap and forward them to the comfort AAC [KLA] control and operating unit (N22/7).

The comfort AAC control and operating unit compares the measured temperature value of the discharged air to the setting on the temperature selector wheel. The blending air flap is readjusted, depending on the result. In addition, this also measures the recirculated interior temperature.
