Ambient Temperature Sensor / Switch HVAC: Service and Repair
AR83.70-P-5975RT Remove/Install Temperature Sensor

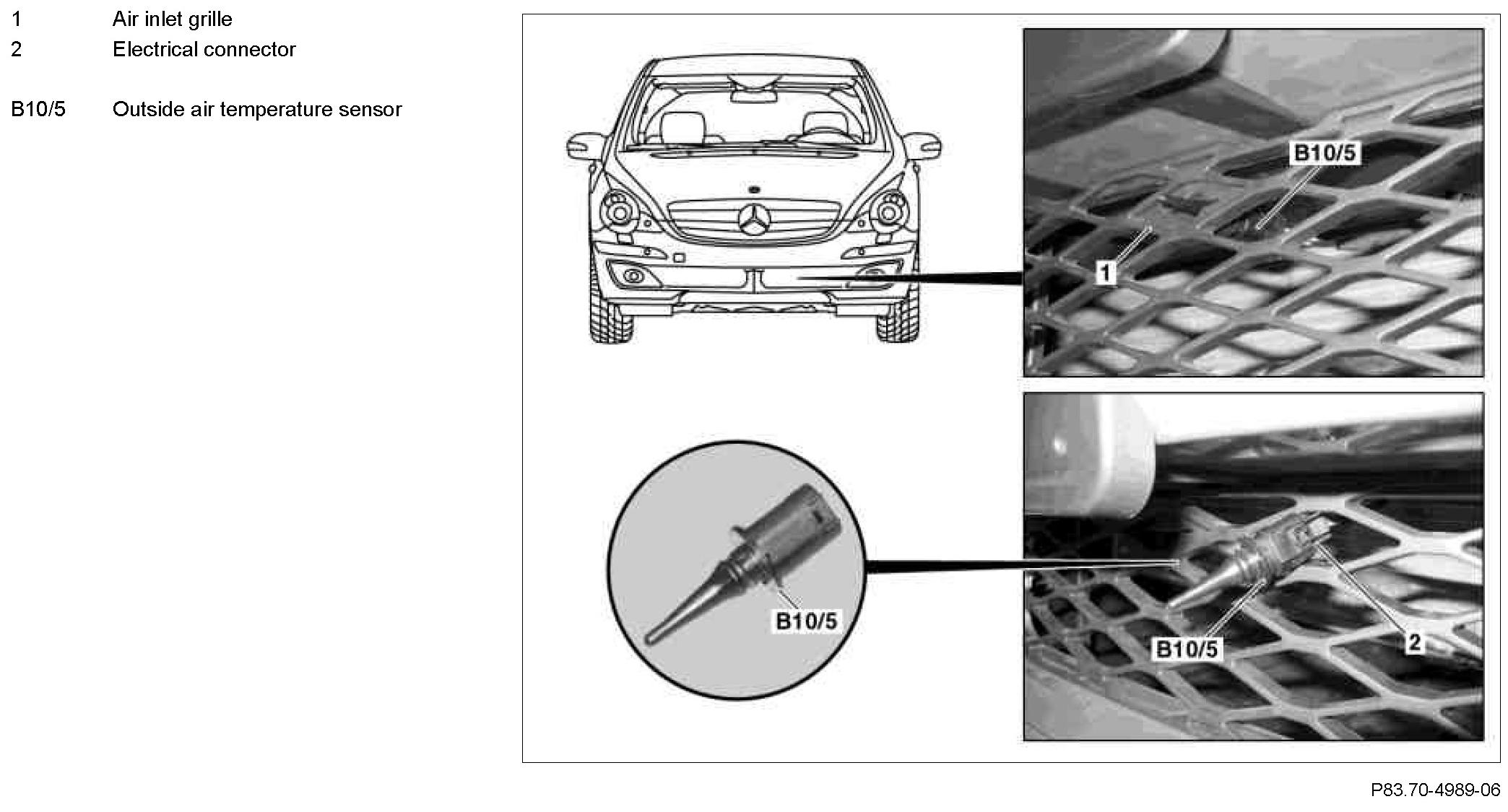

Component Identification:

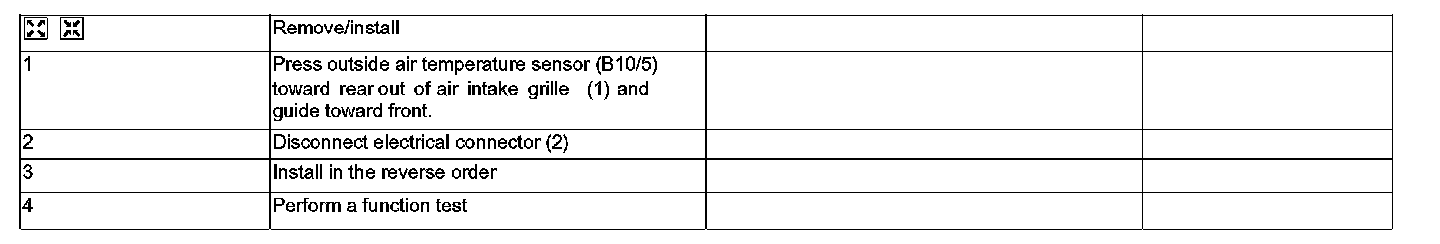

Steps 1 - 4:
