GF83.57-P-4000RT Outside Air Temperature Sensor, Component Description

GF83.57-P-4000RT Outside Air Temperature Sensor, Component Description

MODEL 251.1 /0 up to Model Year 8







B14 Outside temperature display temperature sensor

Location

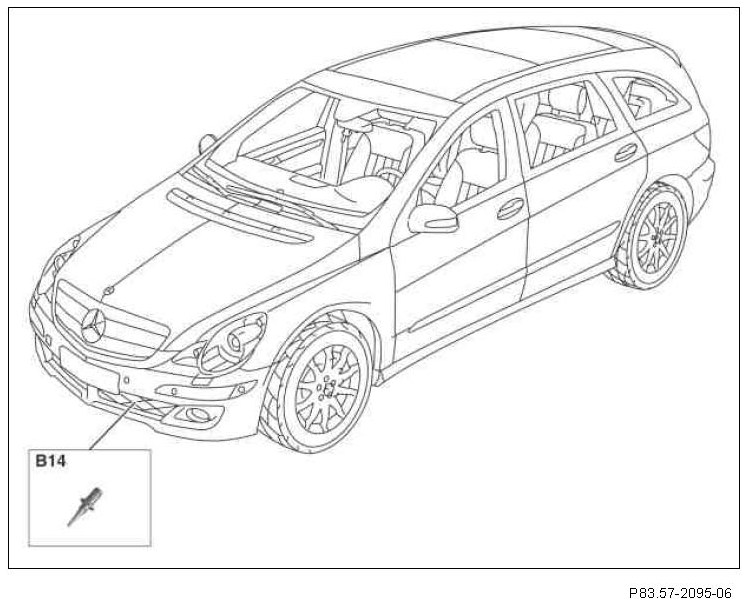

The Outside temperature indicator temperature sensor is located in the front left bumper.

Task
To record the outside temperature.

Function
The outside temperature indicator temperature sensor is an NTC resistance. This changes its resistance depending on the outside temperature. It is read in by the AAC [KLA] control and operating unit (N22).
