Lateral Accelerometer: Service and Repair



AR42.45-P-0841RT Remove/Install Yaw Rate and Lateral Acceleration Sensor

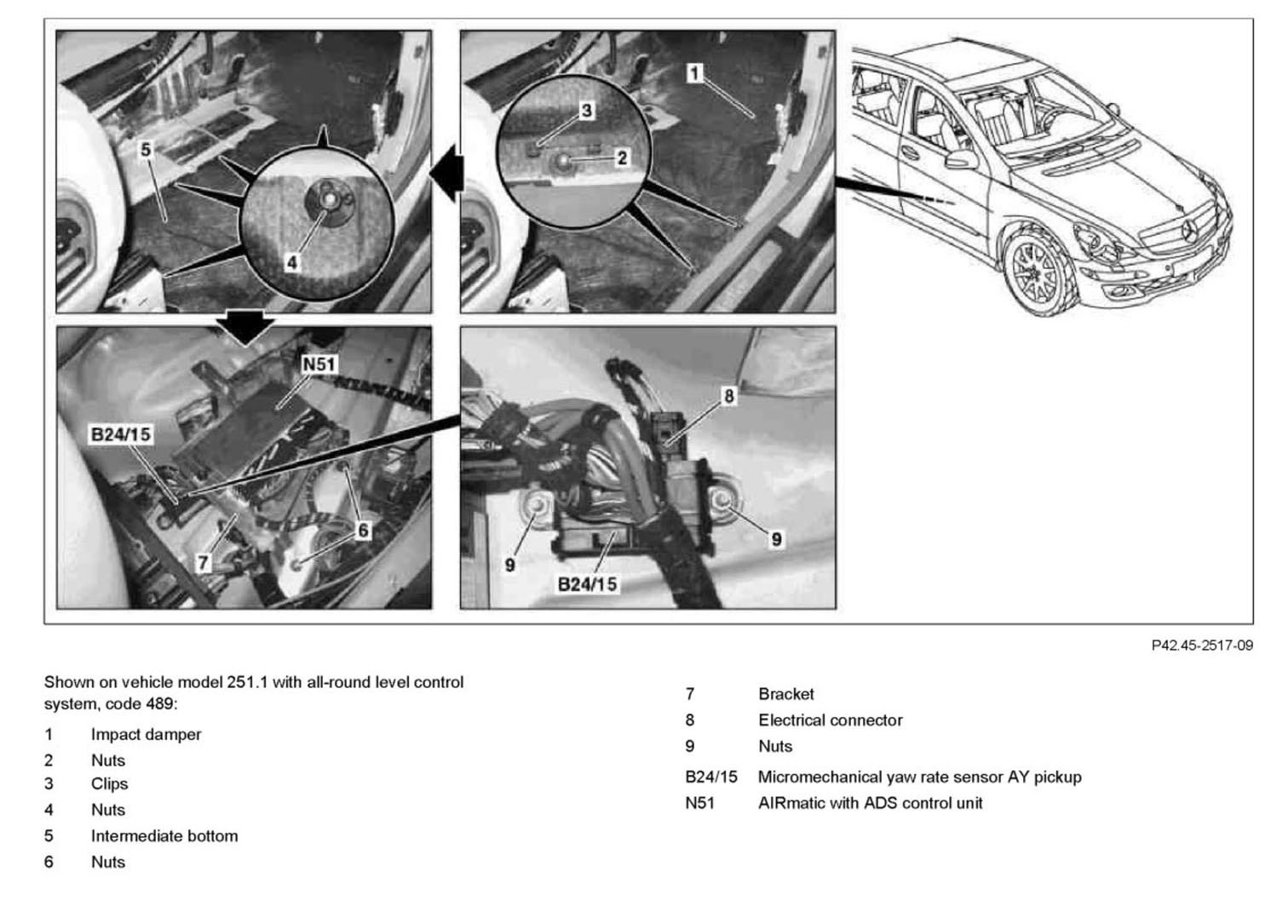

Component Identification:




Steps 1 - 8:

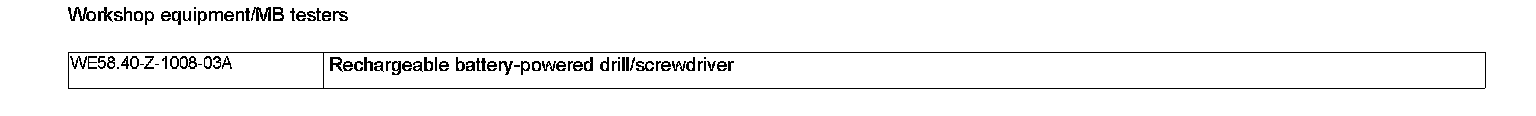

Workshop Equipment/MB Testers:
