GF91.60-P-4036RT WSS Sensor (Weight Sensing System), Component Description

GF91.60-P-4036RT WSS Sensor (Weight Sensing System), Component Description
- with CODE (494) USA version

Component Identification:

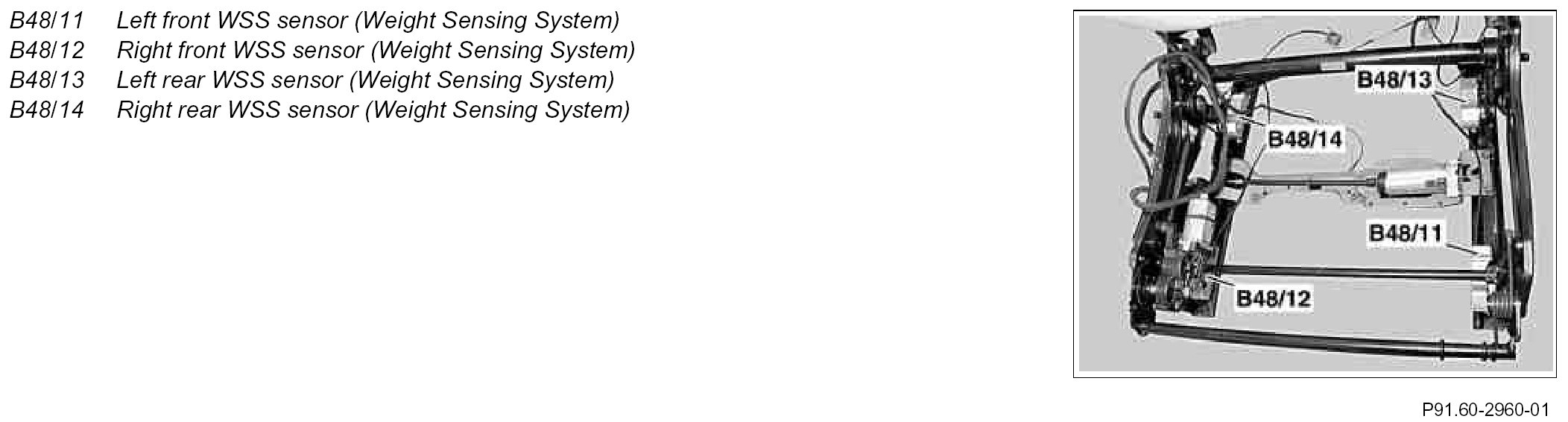

WSS sensors (Weight Sensing System),
^ left front WSS sensor (Weight Sensing System) (B48/11),
^ right front WSS sensor (Weight Sensing System) (B48/12),
^ left rear WSS sensor (Weight Sensing System) (B48/13) and
^ right rear WSS sensor (Weight Sensing System) (B48/14), are located in the passenger seat frame.

The surface weight is detected by the sensors. The detected values are transmitted to the WSS control unit (Weight Sensing System) (N2/13) and used for triggering the restraint system and evaluated.
