Steering Control Module: Service and Repair



AR42.45-P-0820RT Remove/Install Electronic Stability Program (ESP) Control Unit

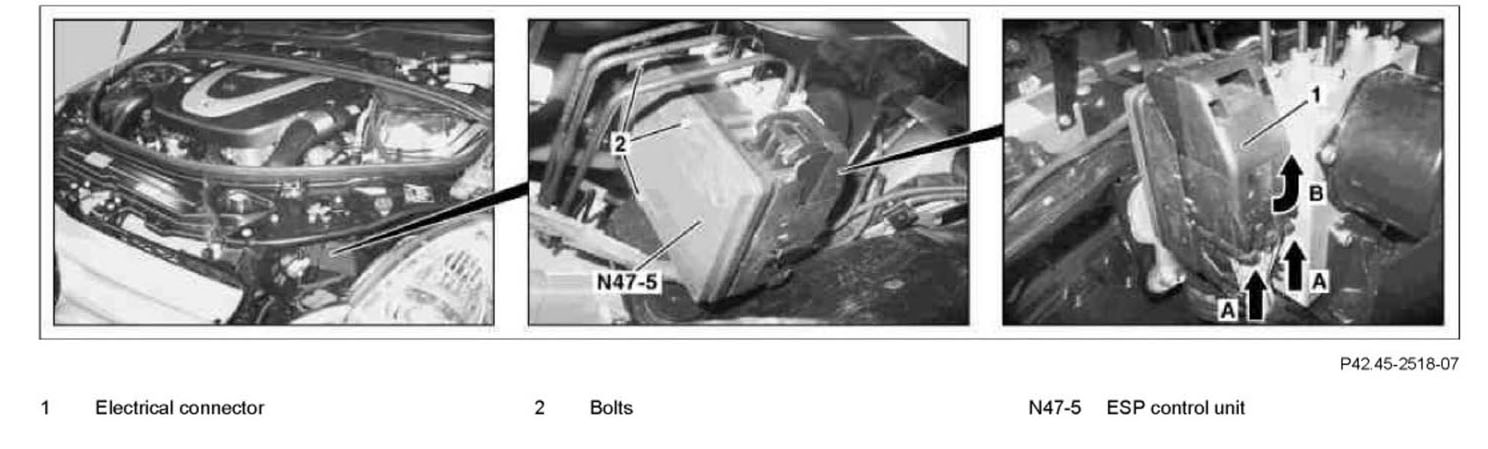

Component Identification:

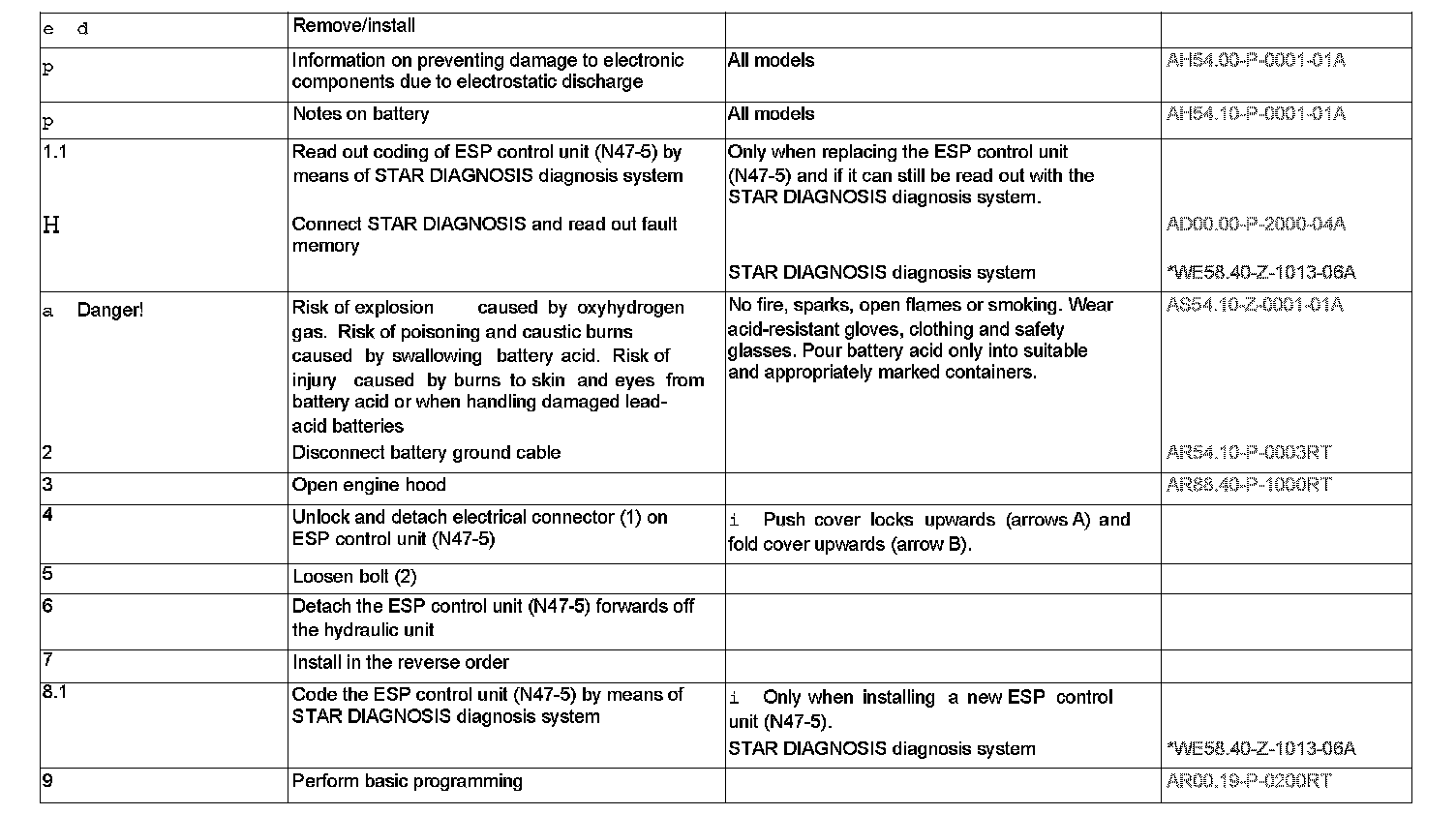

Steps 1 - 9:

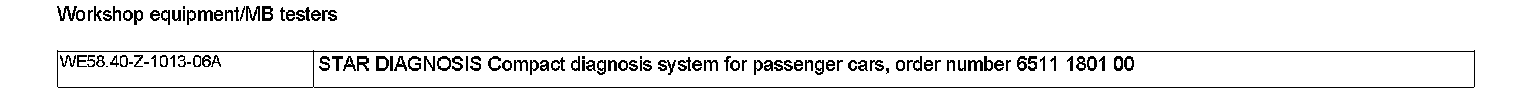

Workshop Equipment/MB Testers:
