AR14.40-P-2020GZB Remove/Install SCR Frame Module Control Unit



AR14.40-P-2020GZB Remove/install SCR frame module control unit
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

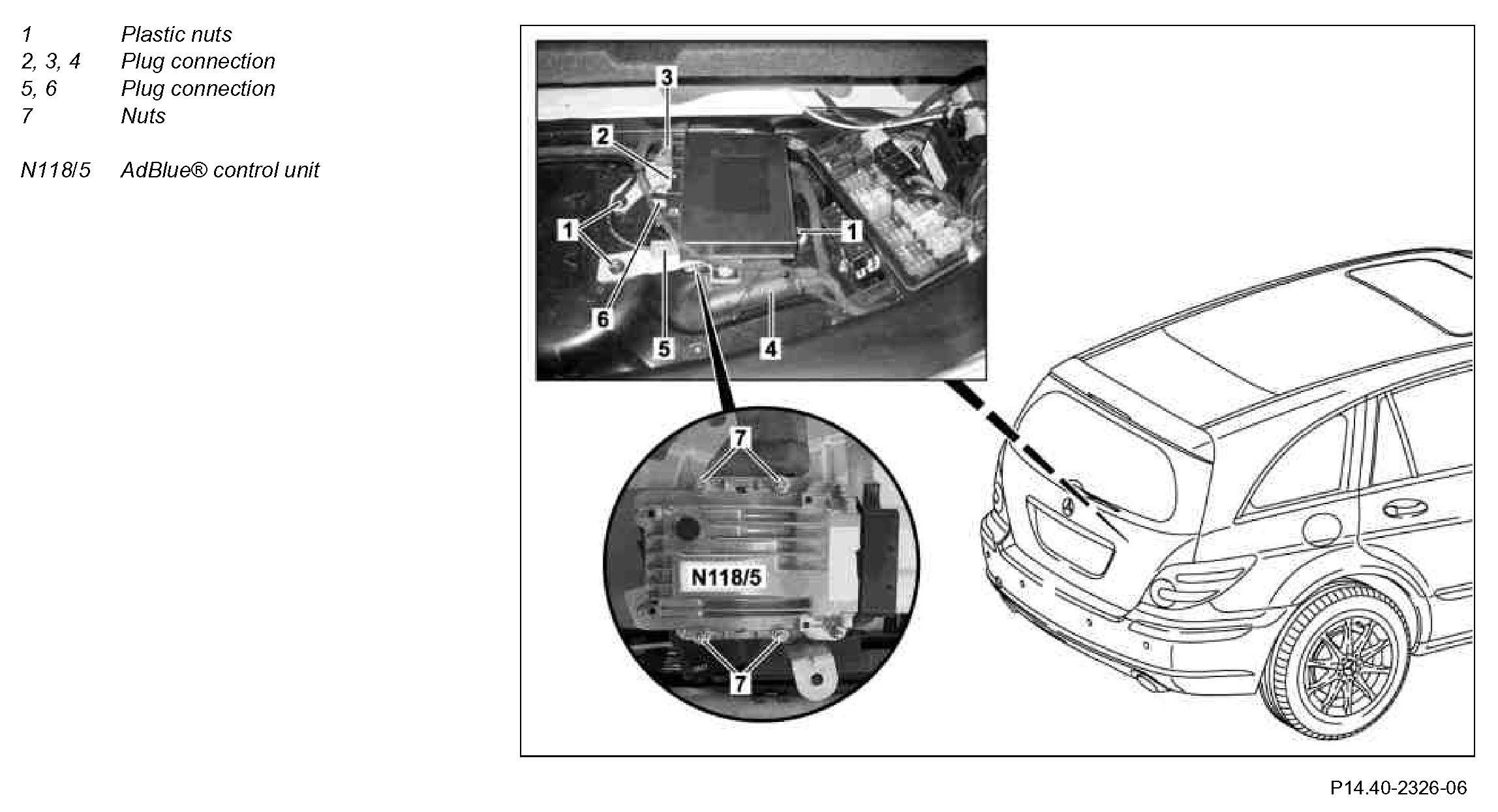

Component Identification:

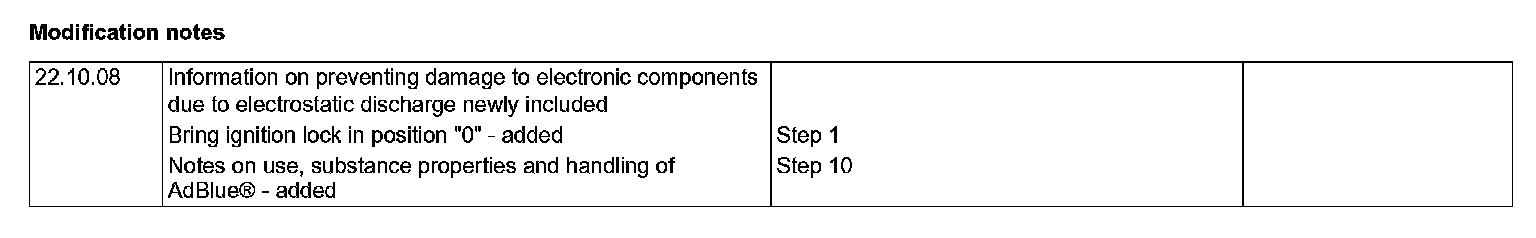

Modification notes:

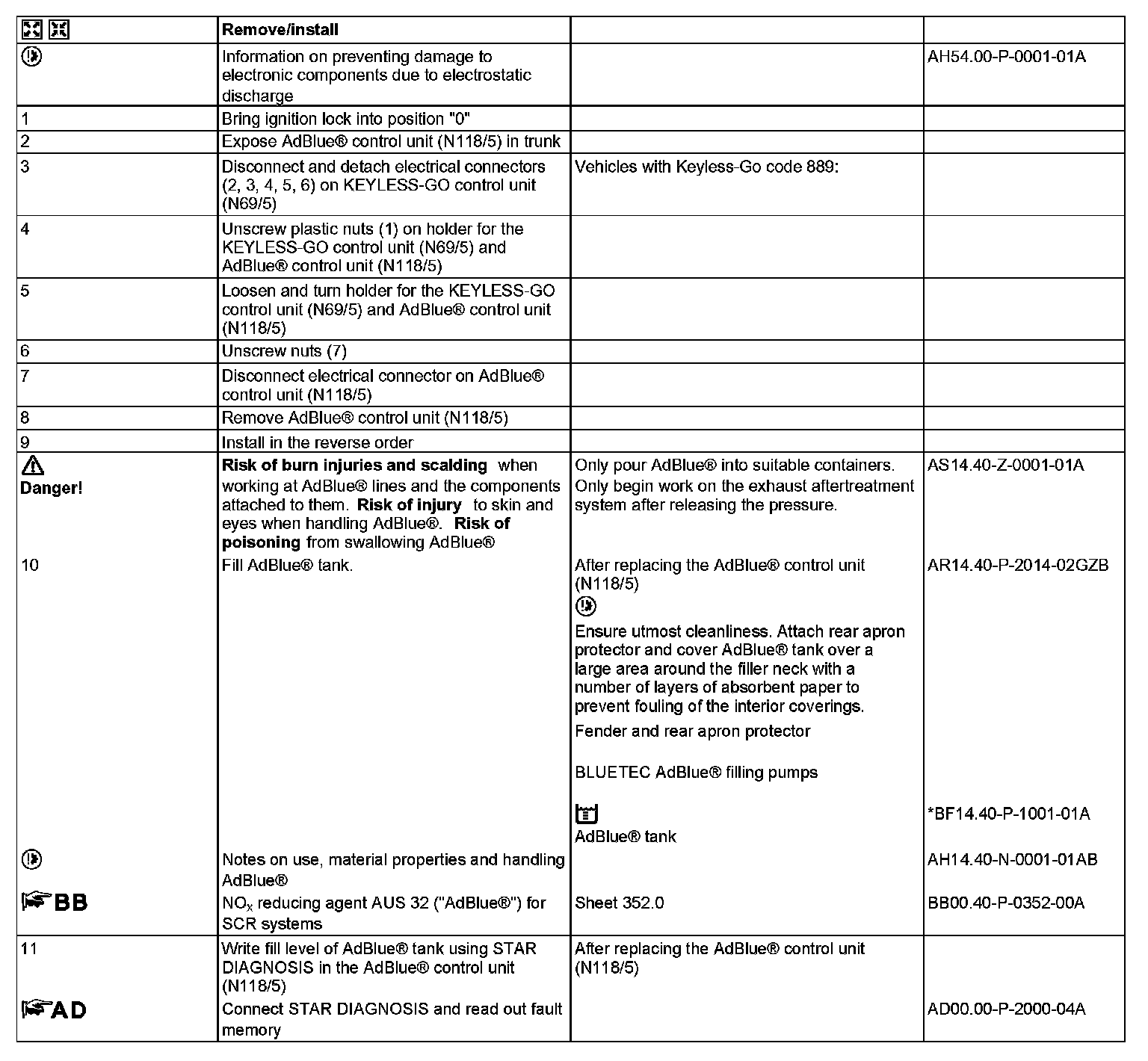

Steps 1-11:

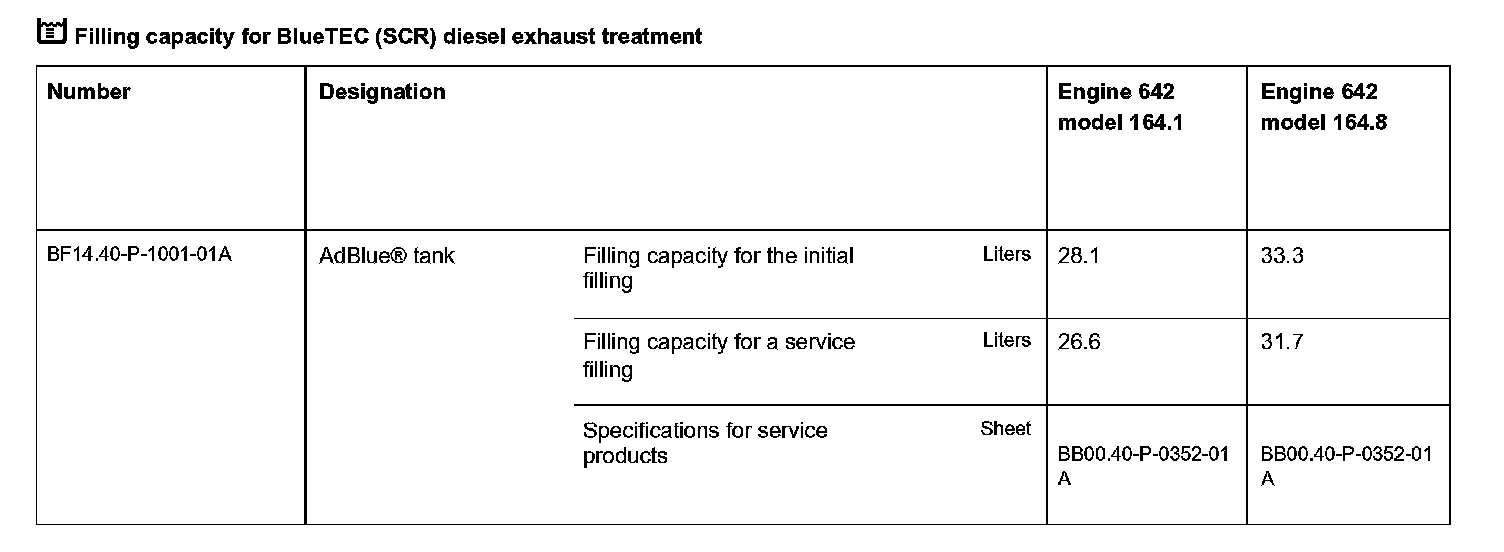

Filling capacity for BlueTEC (SCR) diesel exhaust treatment:

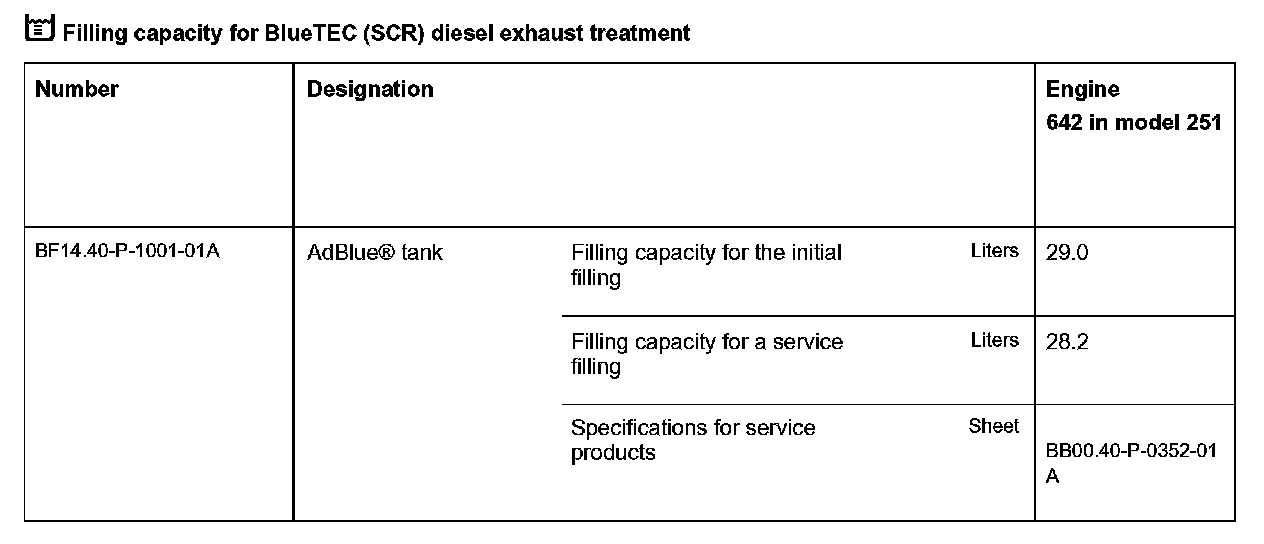

Filling capacity for BlueTEC (SCR) diesel exhaust treatment:
