AR49.10-P-5500RTQ Remove/Install Catalytic Converter
AR49.10-P-5500RTQ Remove/Install Catalytic Converter
AR49.10-P-5500RTQ Remove/install
catalytic converter

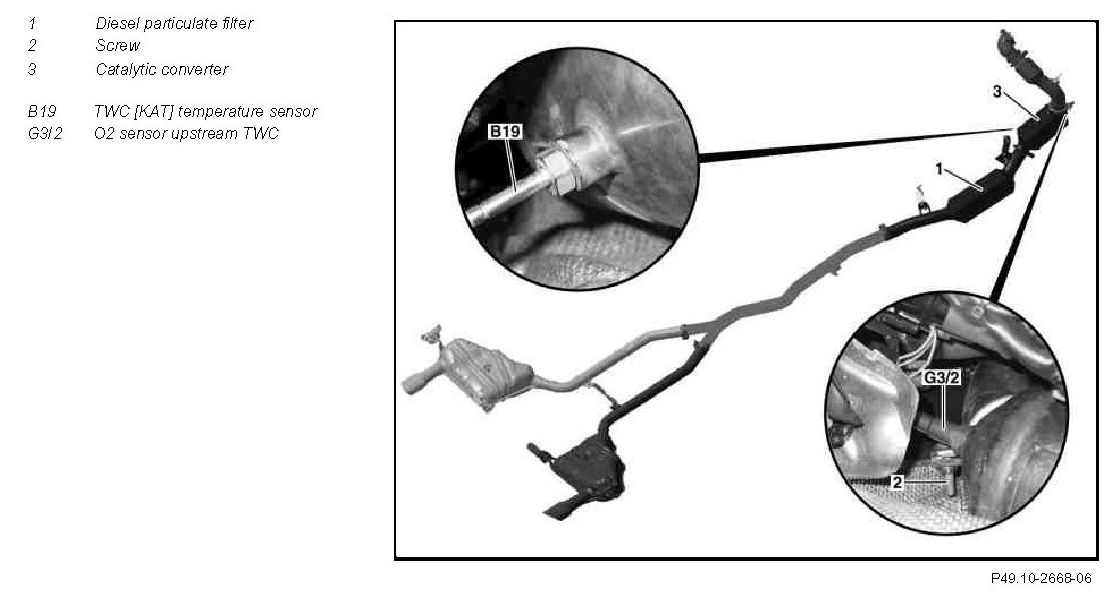

Component Identification:

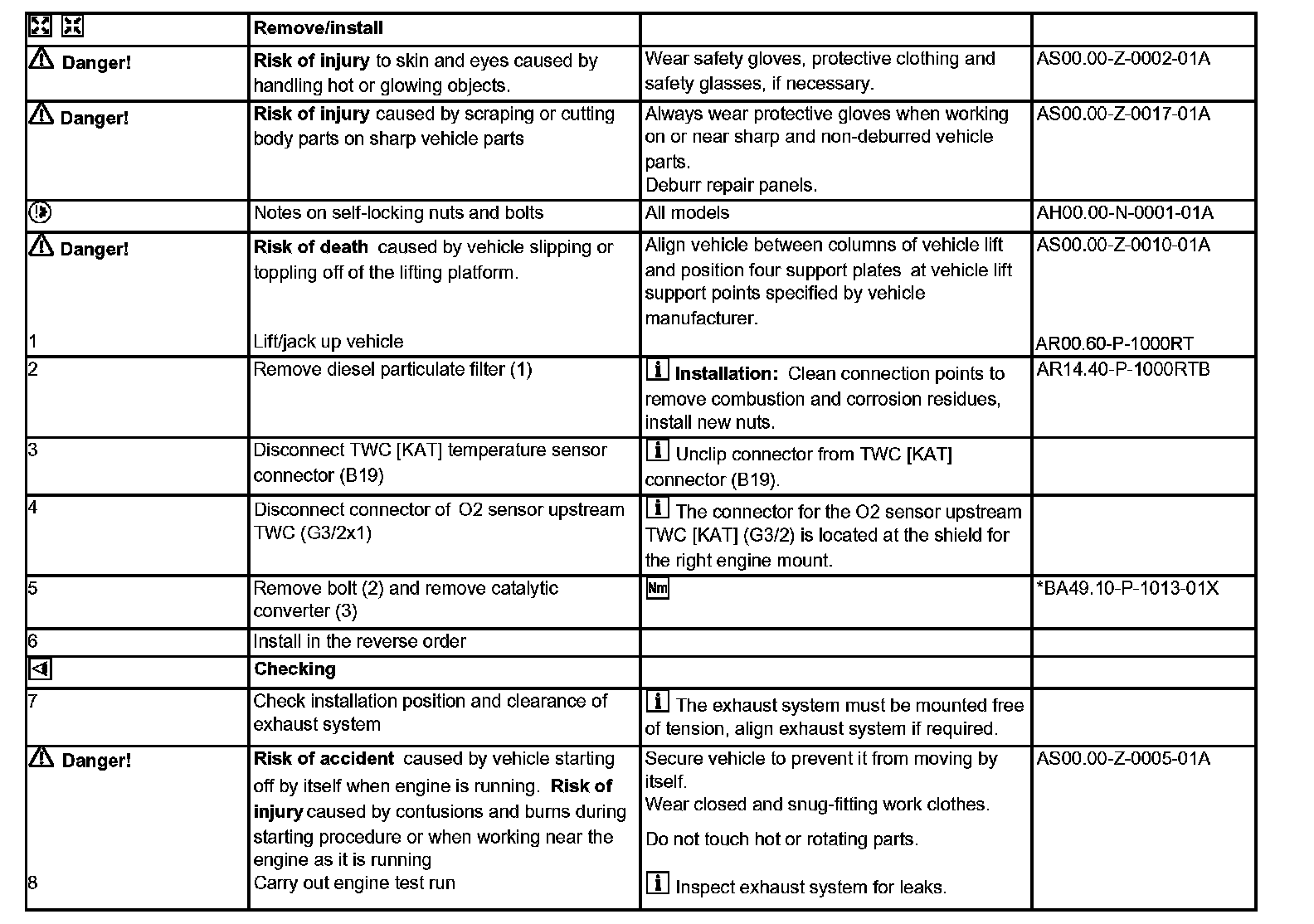

Remove/install Steps 1-8:

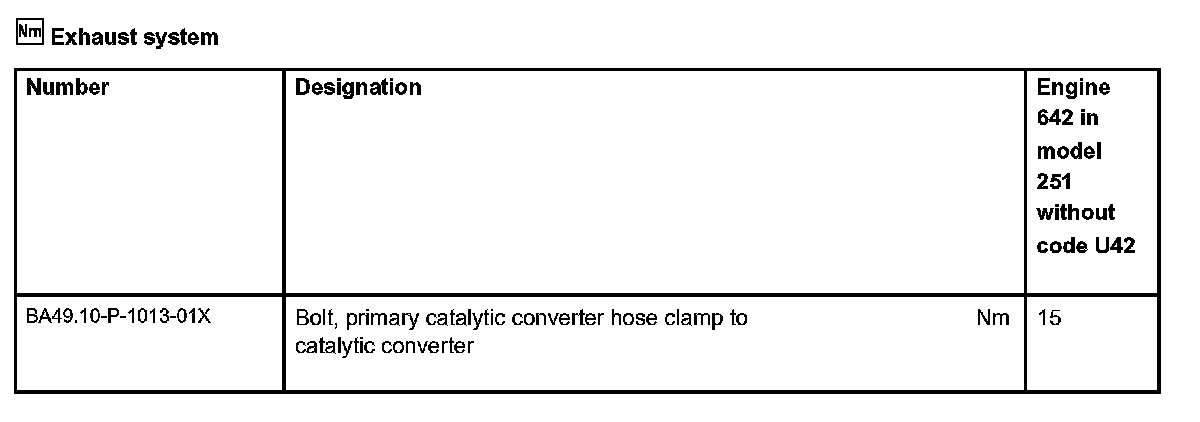

Exhaust system:
