PE07.10-U-2700RAA Electrical Function Schematic For Ignition ON

PE07.10-U-2700RAA Electrical Function Schematic For Ignition ON

ENGINE 642.8 /9 in MODEL 251.0 /1

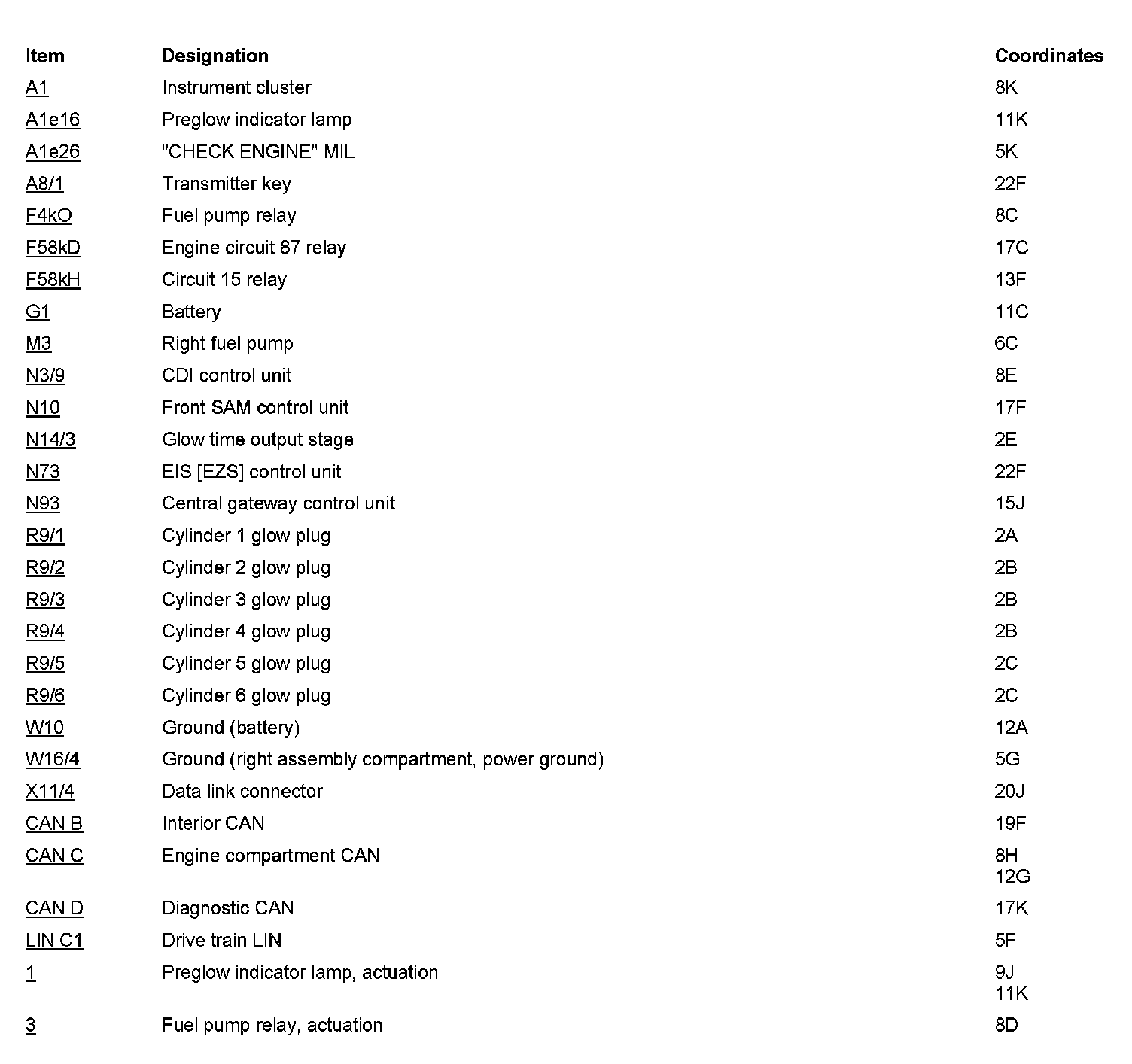

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
