PE07.16-U-2101RAA Common Rail Diesel Injection (CDI) Control Module

PE07.16-U-2101RAA Common Rail Diesel Injection (CDI) Control Module

ENGINE 642.950 in MODEL 251

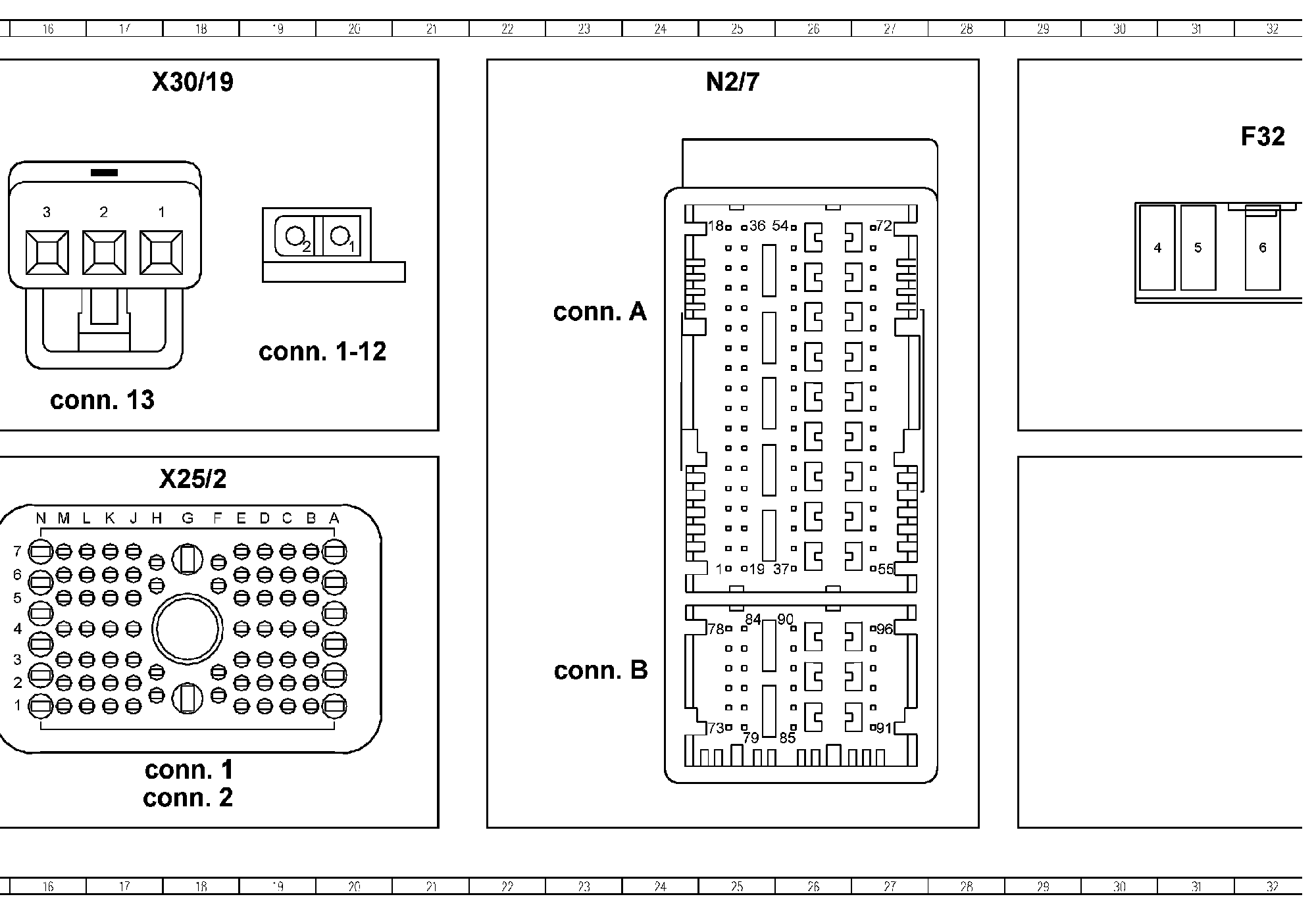

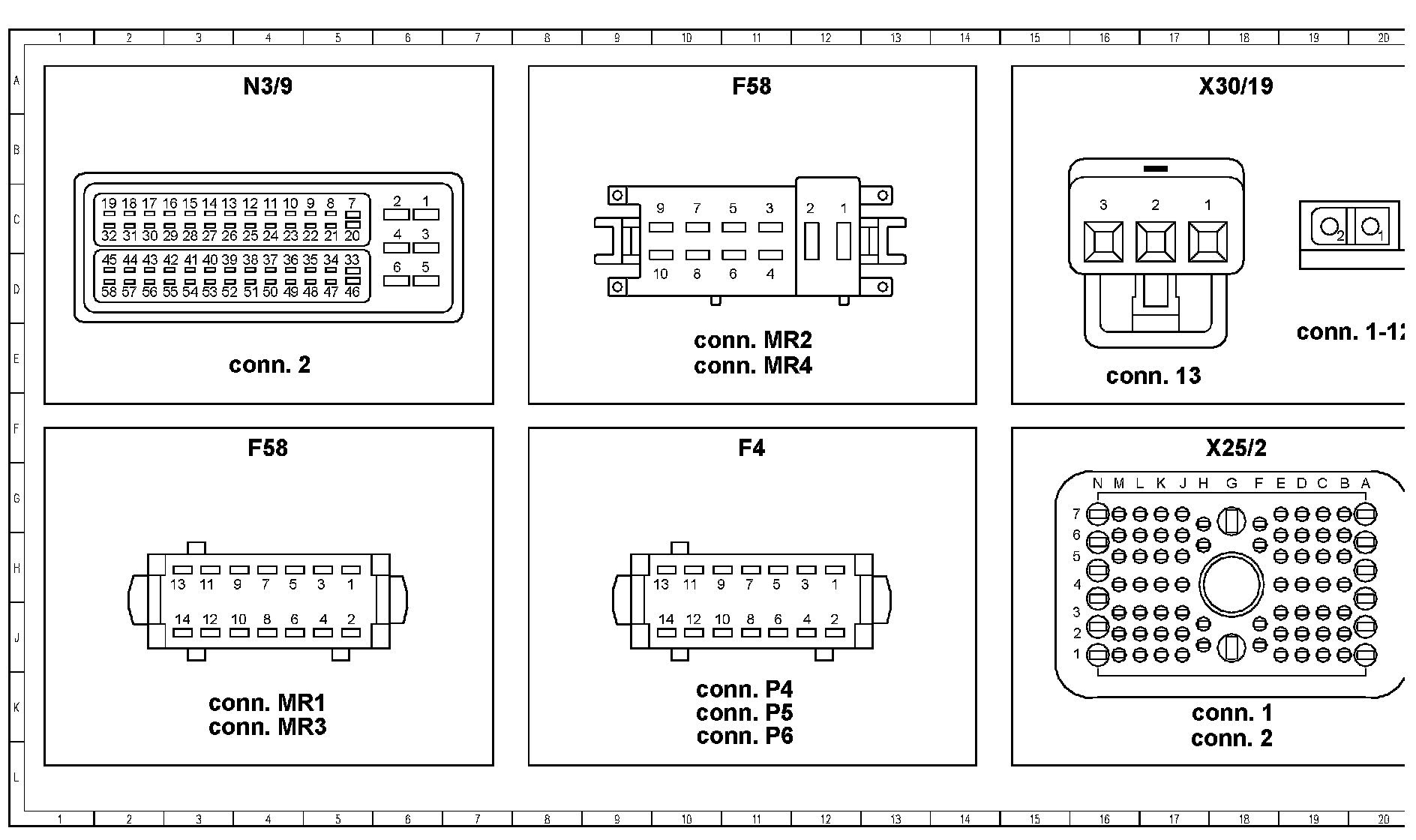

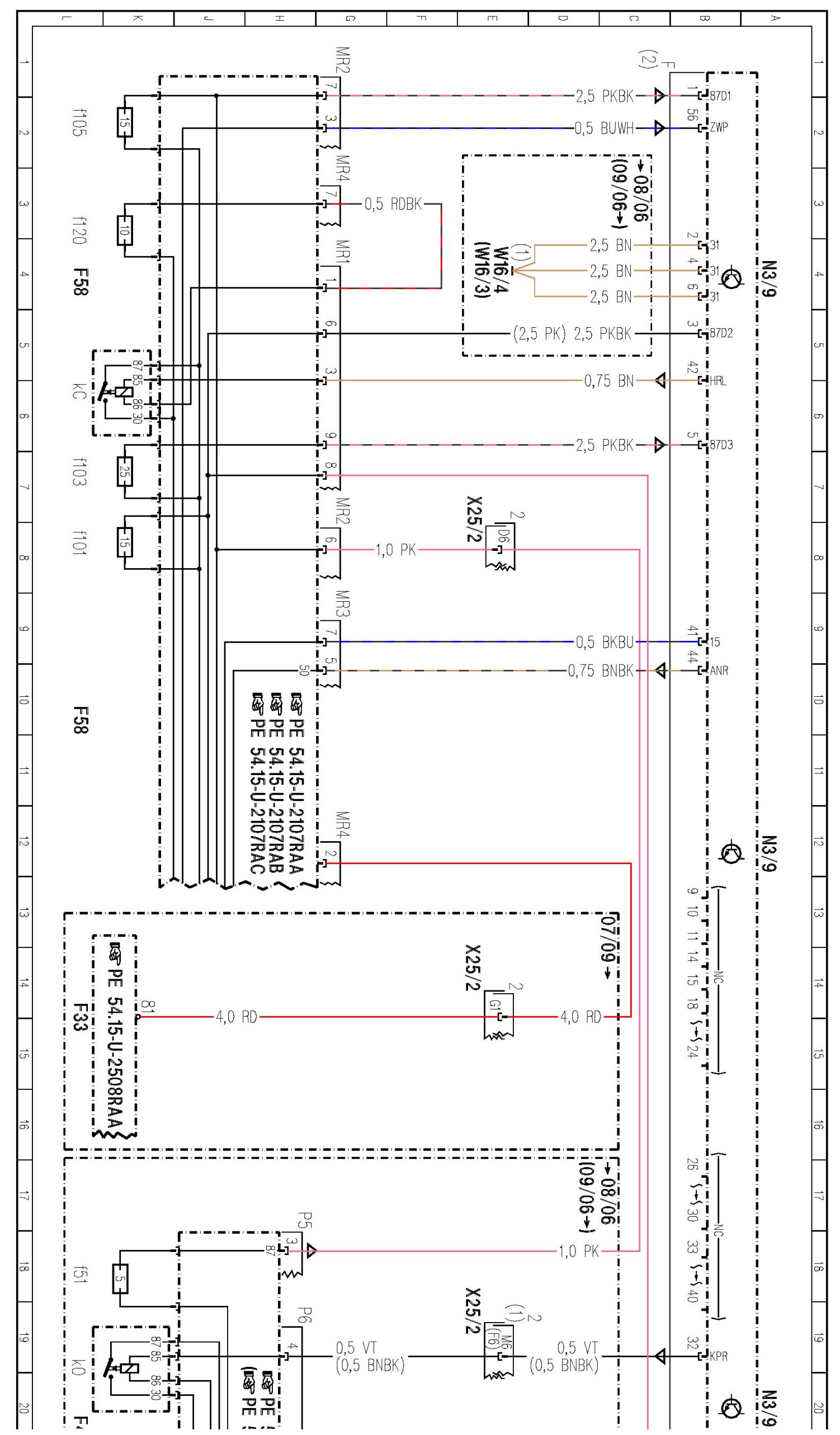

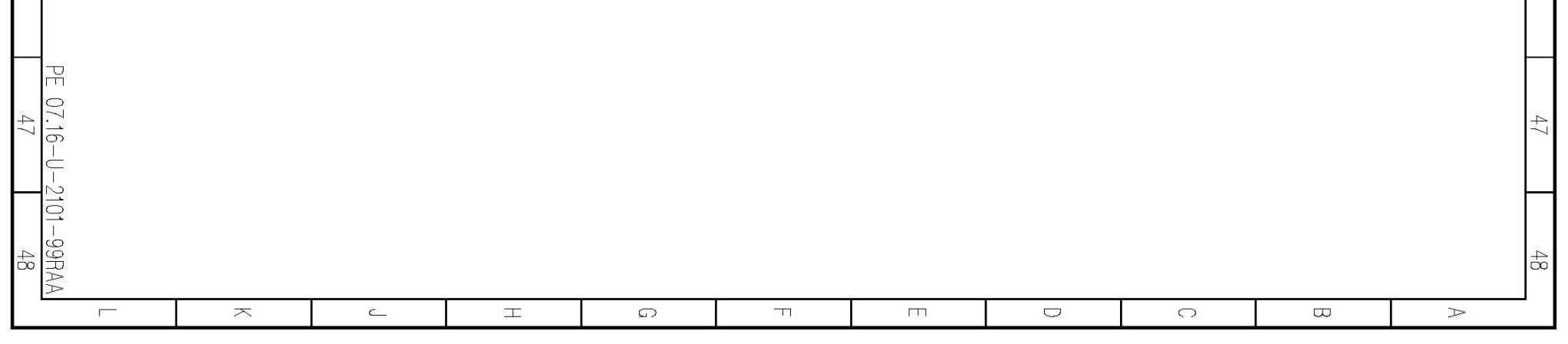

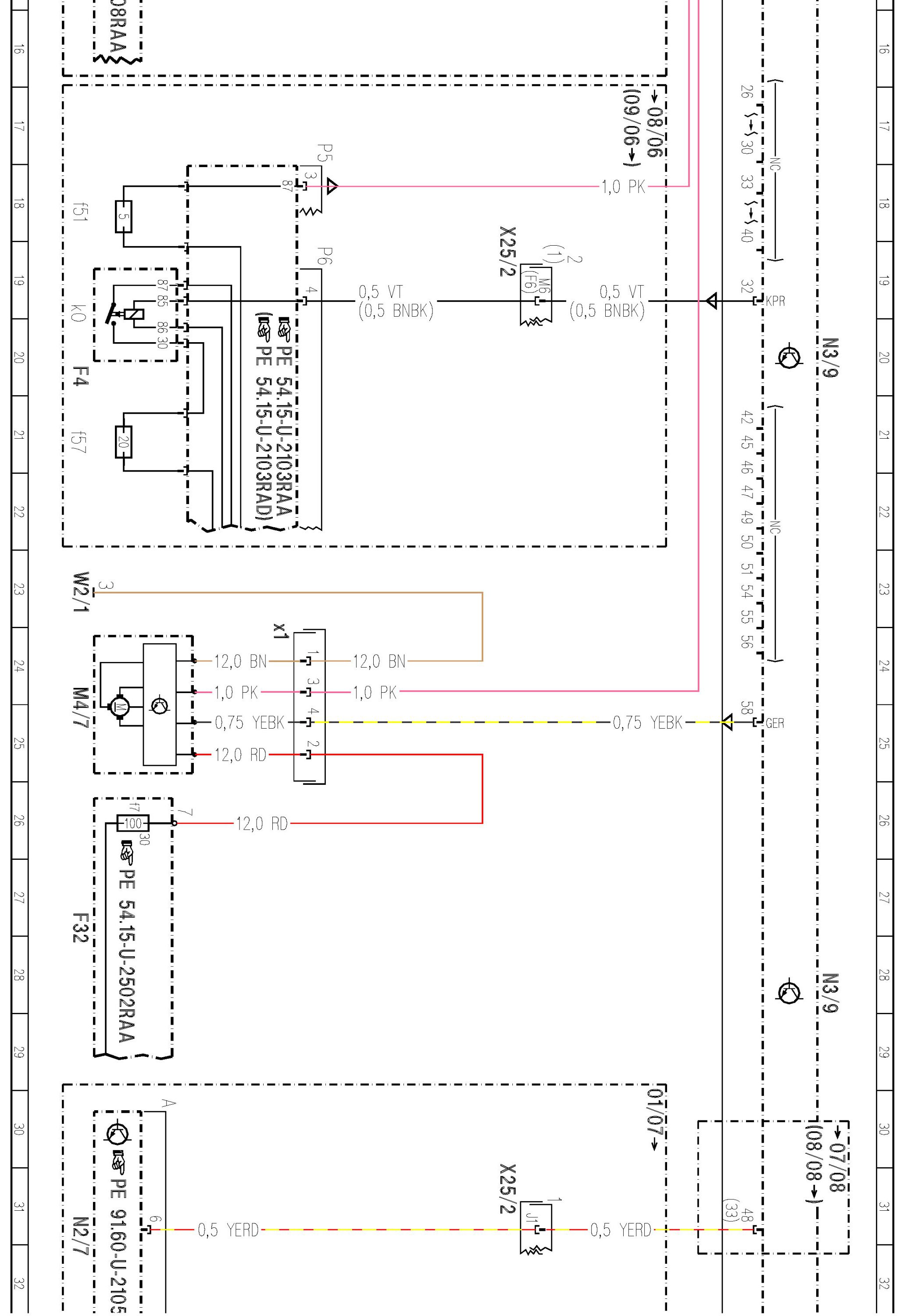

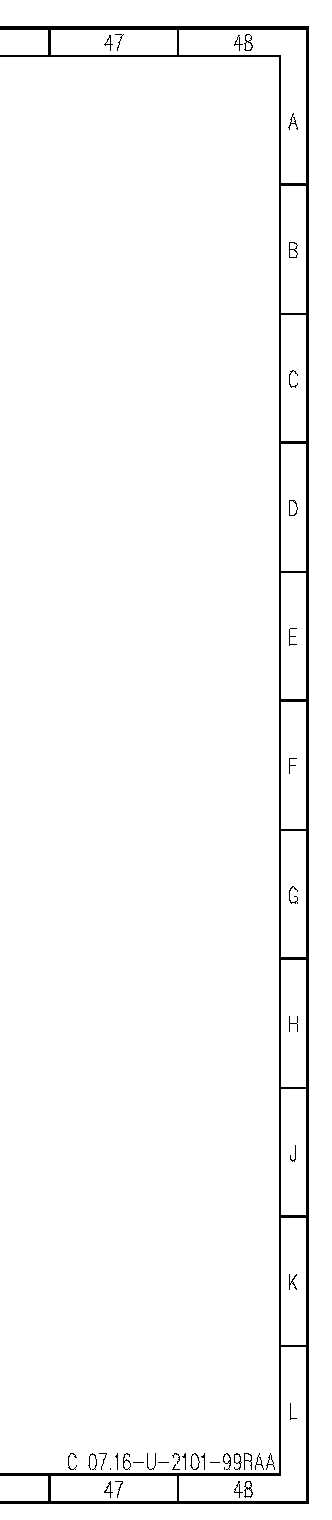

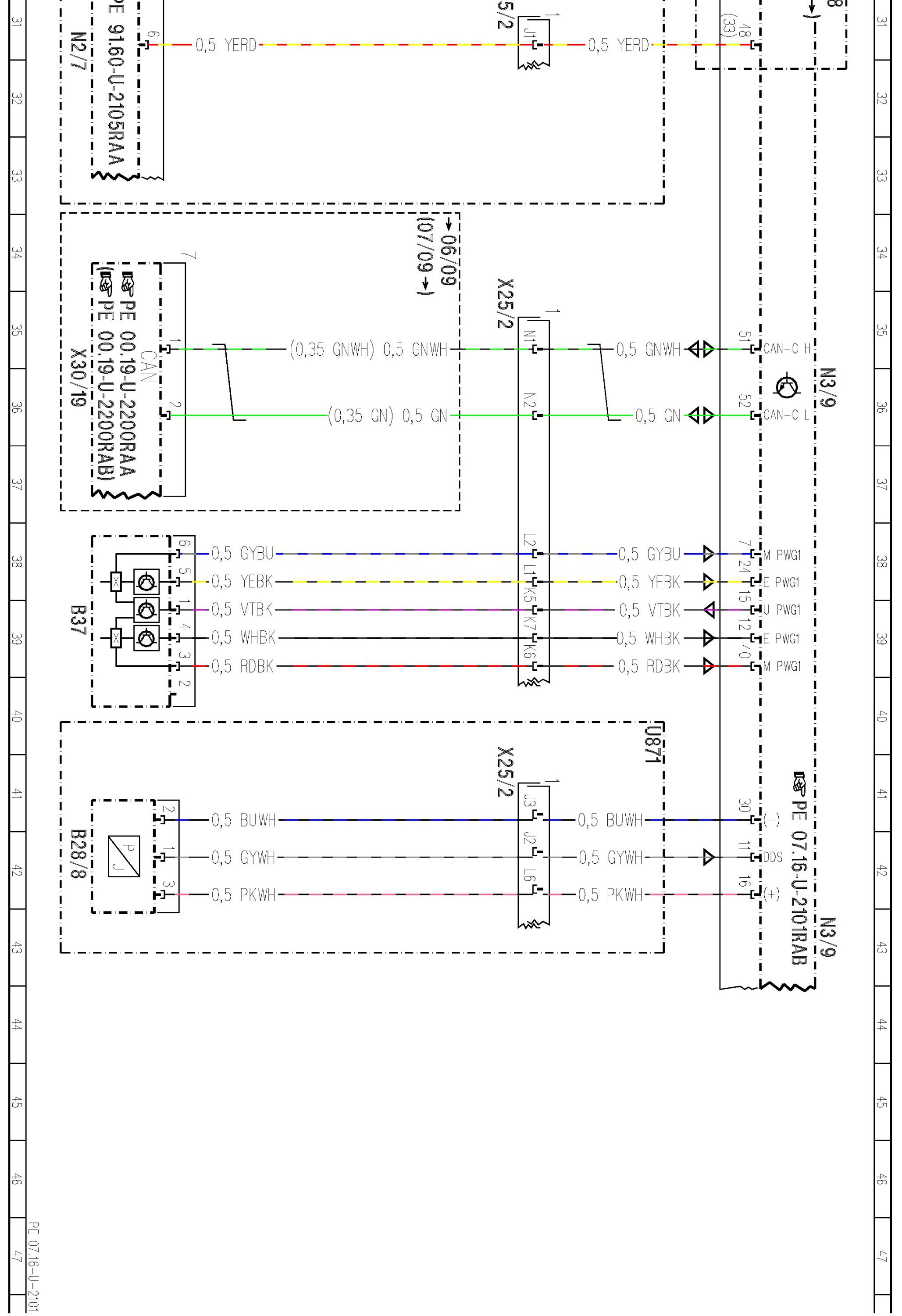

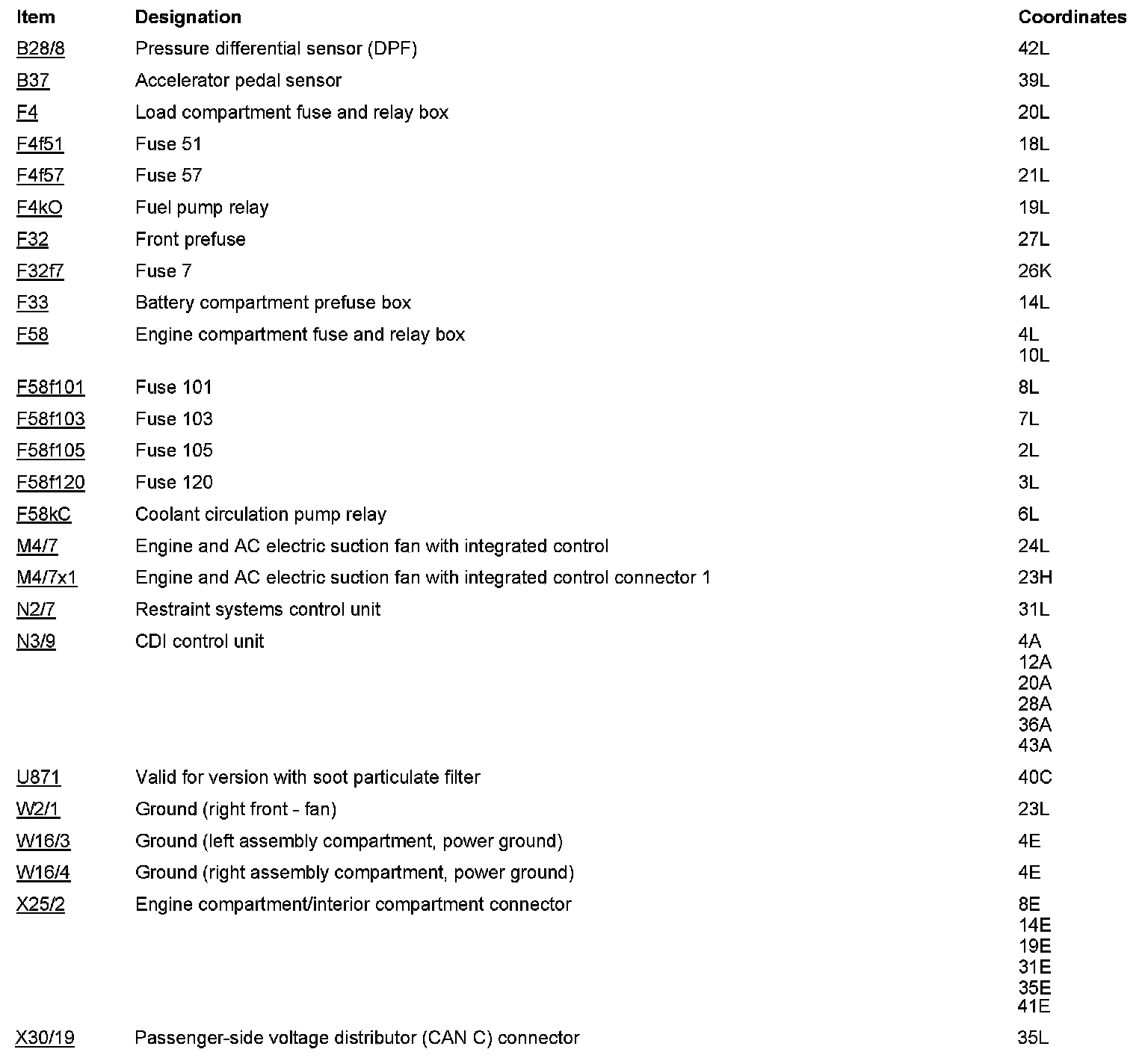

- CR 4.11, control unit N3/9, sheet 1






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
