GF00.20-P-0004-01RT Active Service System (ASSYST Plus) Operating Instructions

GF00.20-P-0004-01RT Active Service System (ASSYST PLUS) Operating Instructions

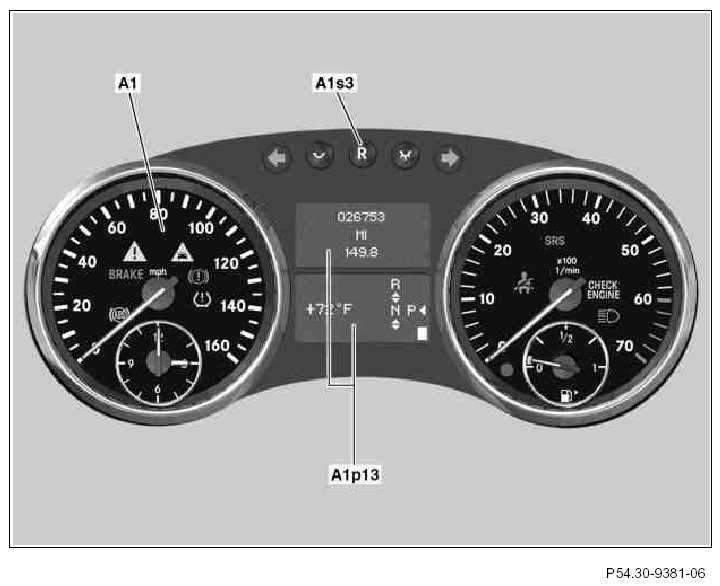

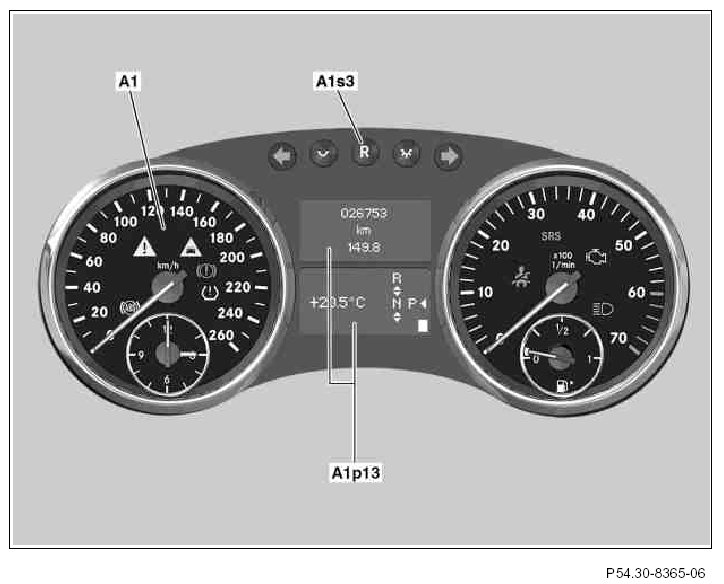

A1 Instrument cluster
A1p13 Multifunction display
A1s3 Trip odometer reset button

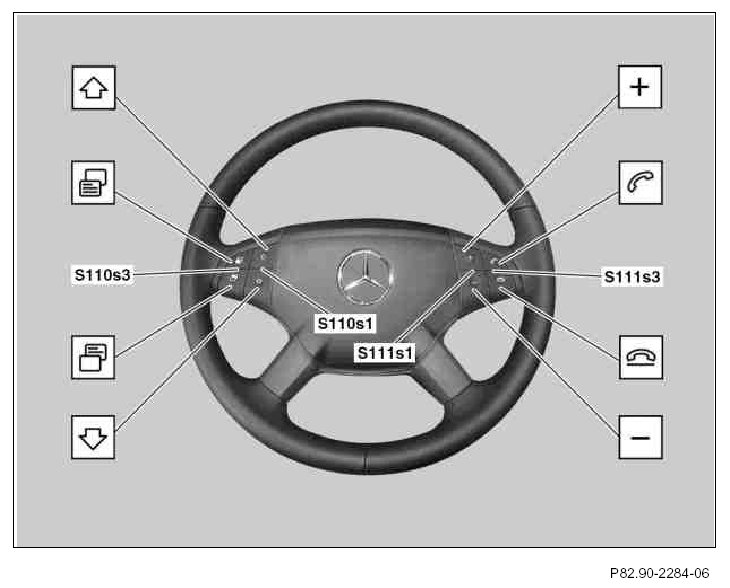

S110s1 Scroll forward/back button
S110s3 System selection button
S111s1 + and -, specific function setting and volume control button
S111s3 Accept/terminate phone call button

General
The Active Service System (ASSYST PLUS) can be used to have information displayed in the multifunction display of the instrument cluster.
The following information can be displayed:
- Service interval indicator
- Remaining distance
- Remaining time
- Fault and warning message on engine oil
- Oil level measurement messages initiated by driver
- Service memory full

The Active Service System (ASSYST PLUS) is operated using the trip odometer reset button in the top center of the instrument cluster.

The warning indicators have differently colored backgrounds:
- White = priority 3
- Red = priority 2
- Red = Priority 1 (cannot be acknowledged)

The messages in the multifunction display are divided into 3 categories according to their priority. Messages in categories 2 and 3 can be acknowledged by the driver using the trip odometer reset button. Messages of category 1 (highest priority) cannot be acknowledged.
