GF82.10-P-2009RTX Headlamp Control, Function

GF82.10-P-2009RTX Headlamp Control, Function

General driving light actuation function sequence

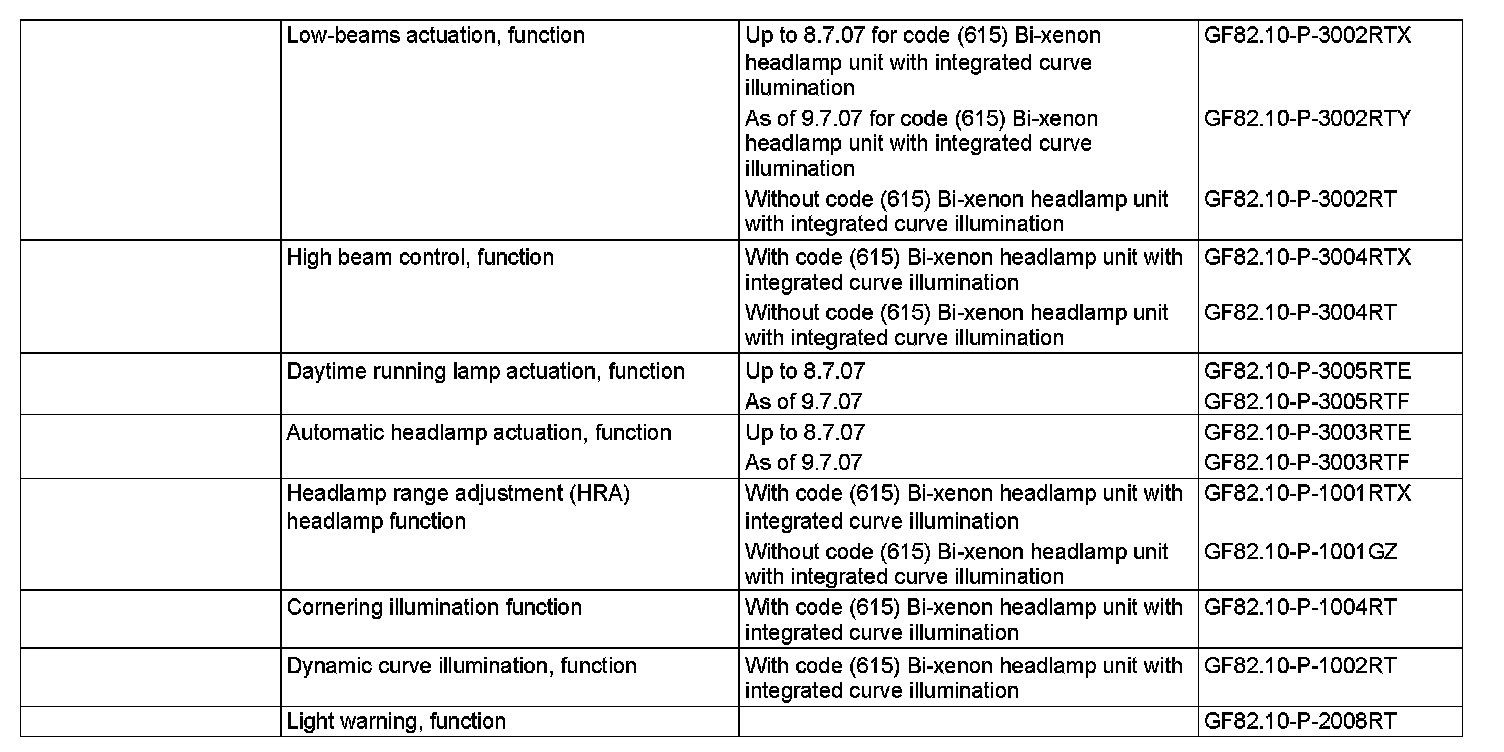

The driving light actuation consists of several subfunctions. These are:
^ Low beam actuation
^ High-beams actuation
^ Daytime running lamps actuation
^ Automatic driving lights on
^ Manual headlamp range adjustment
(without code (615) Bi-xenon headlamp unit with integrated curve illumination)
^ Automatic headlamp range adjustment
(for code (615) Bi-xenon headlamp unit with integrated curve illumination)
^ Light warning
^ Cornering illumination
(for code (615) Bi-xenon headlamp unit with integrated curve illumination)
^ Dynamic curve illumination
(for code (615) Bi-xenon headlamp unit with integrated curve illumination)
