AR03.20-P-1000GZB Remove/install
balance shaft
Component Identification:

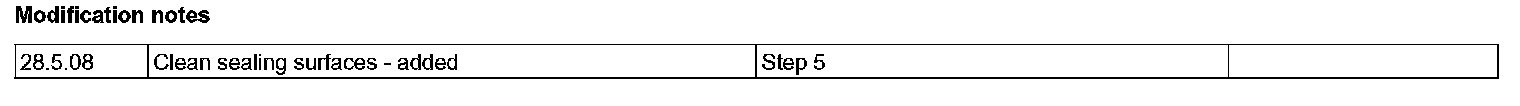

Modification notes:

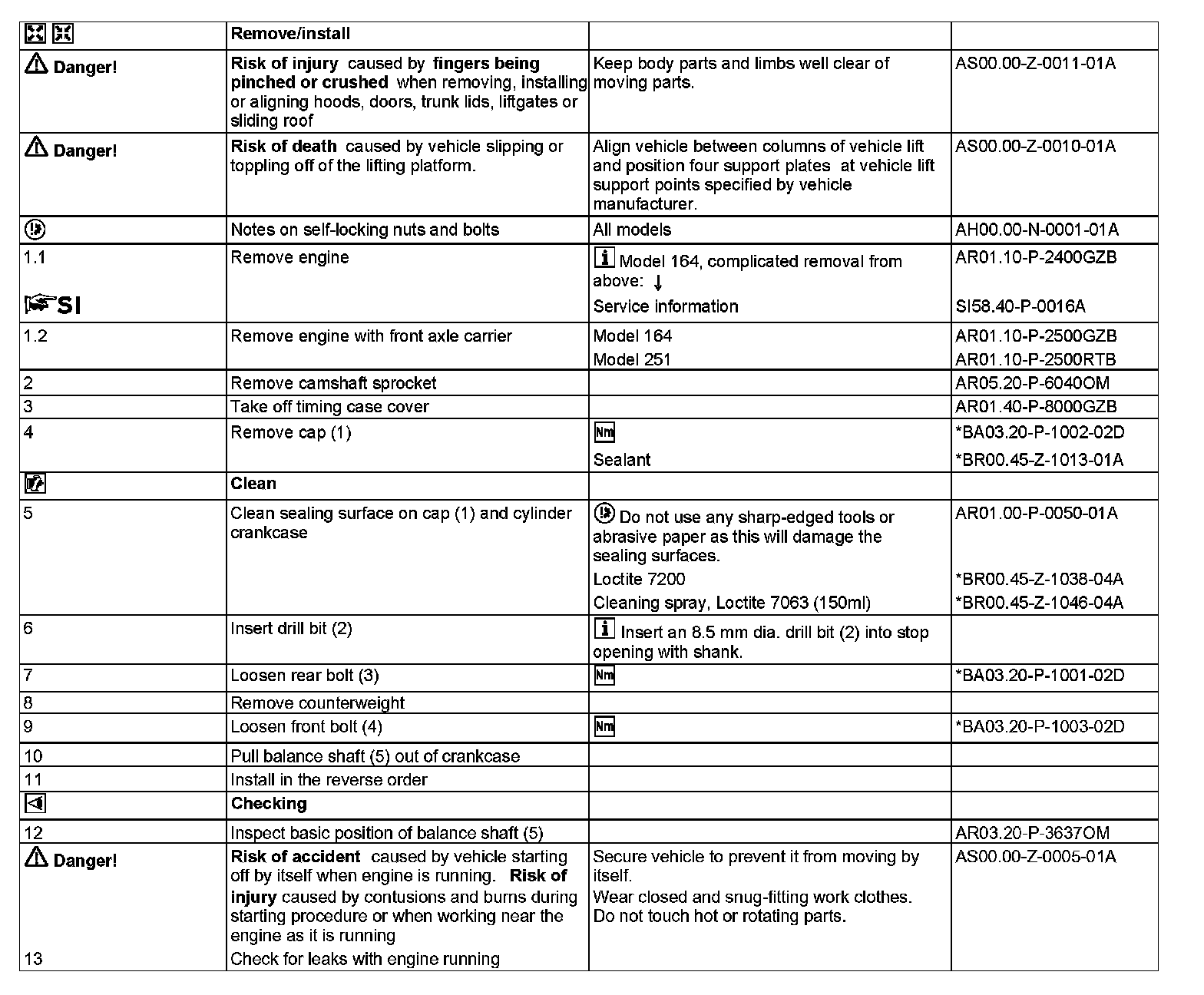

Steps 1.1-13:
Balance shaft:
Repair materials:
