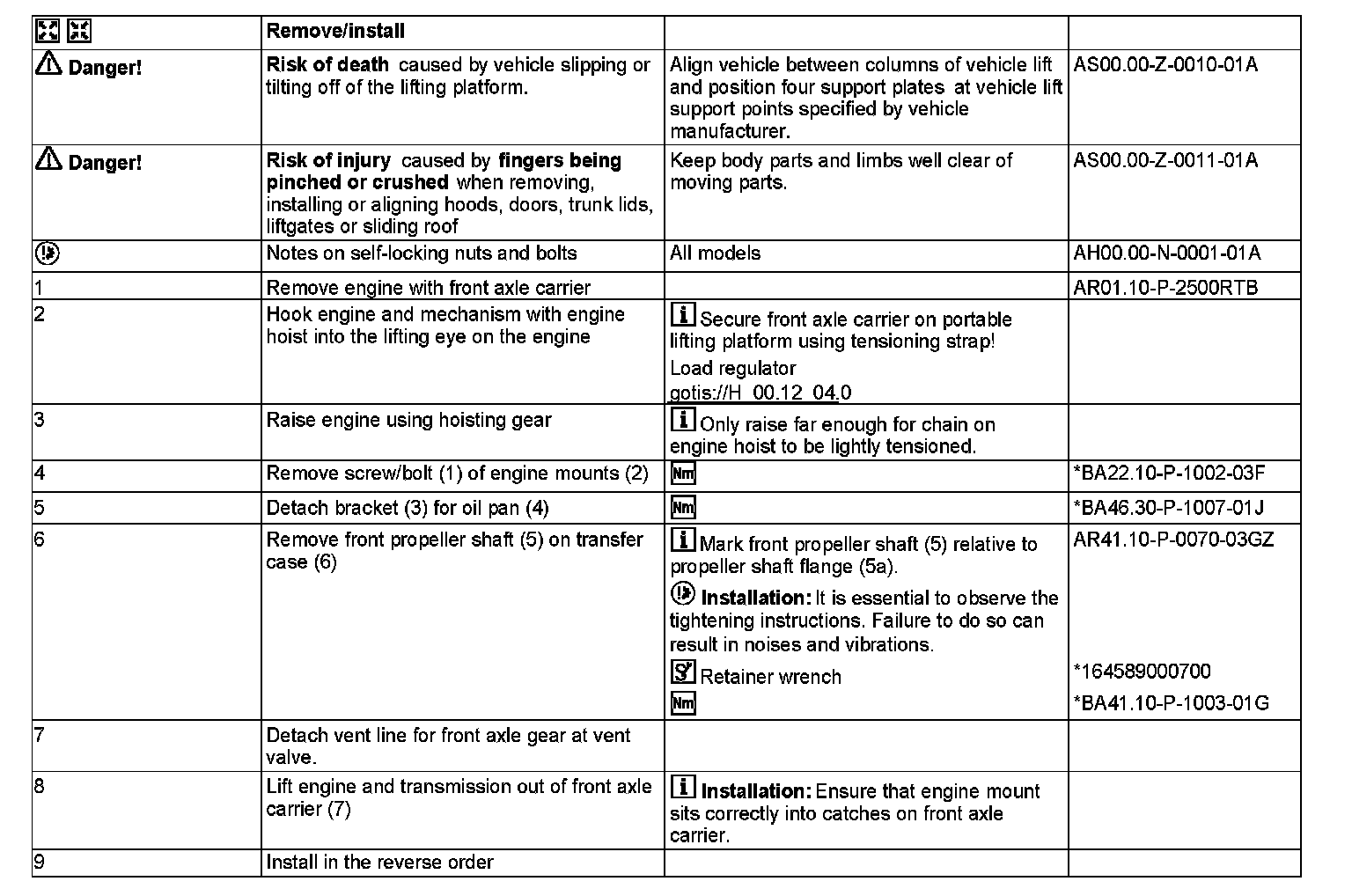

AR01.10-P-2510RTB Remove/Install Engine From/Onto Front Axle Carrier

AR01.10-P-2510RTB Remove/Install Engine From/Onto Front Axle Carrier
ENGINES 642.950 in MODEL 251.020 /022 /122





1 Screw/bolt

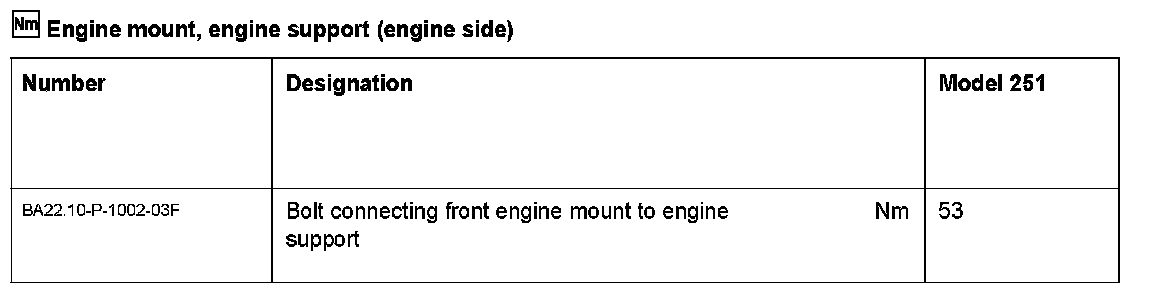

2 Engine mount
3 Bracket
4 Oil pan

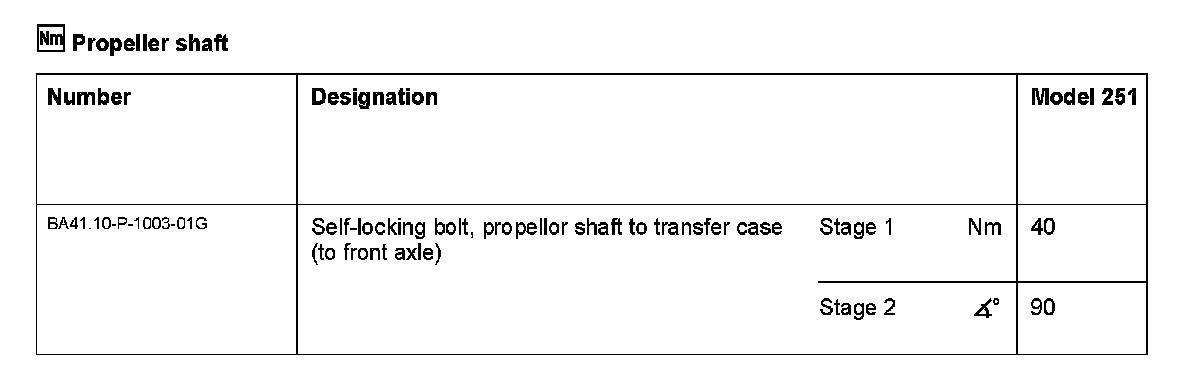

5 Front propeller shaft
5a Propeller shaft flange
6 Transfer case
7 Front axle carrier




















164 589 00 07 00
Retainer wrench
