AR18.10-P-21400M Replace the Oil Pump Chain



AR18.10-P-21400M Replace the oil pump chain

Component Identification:

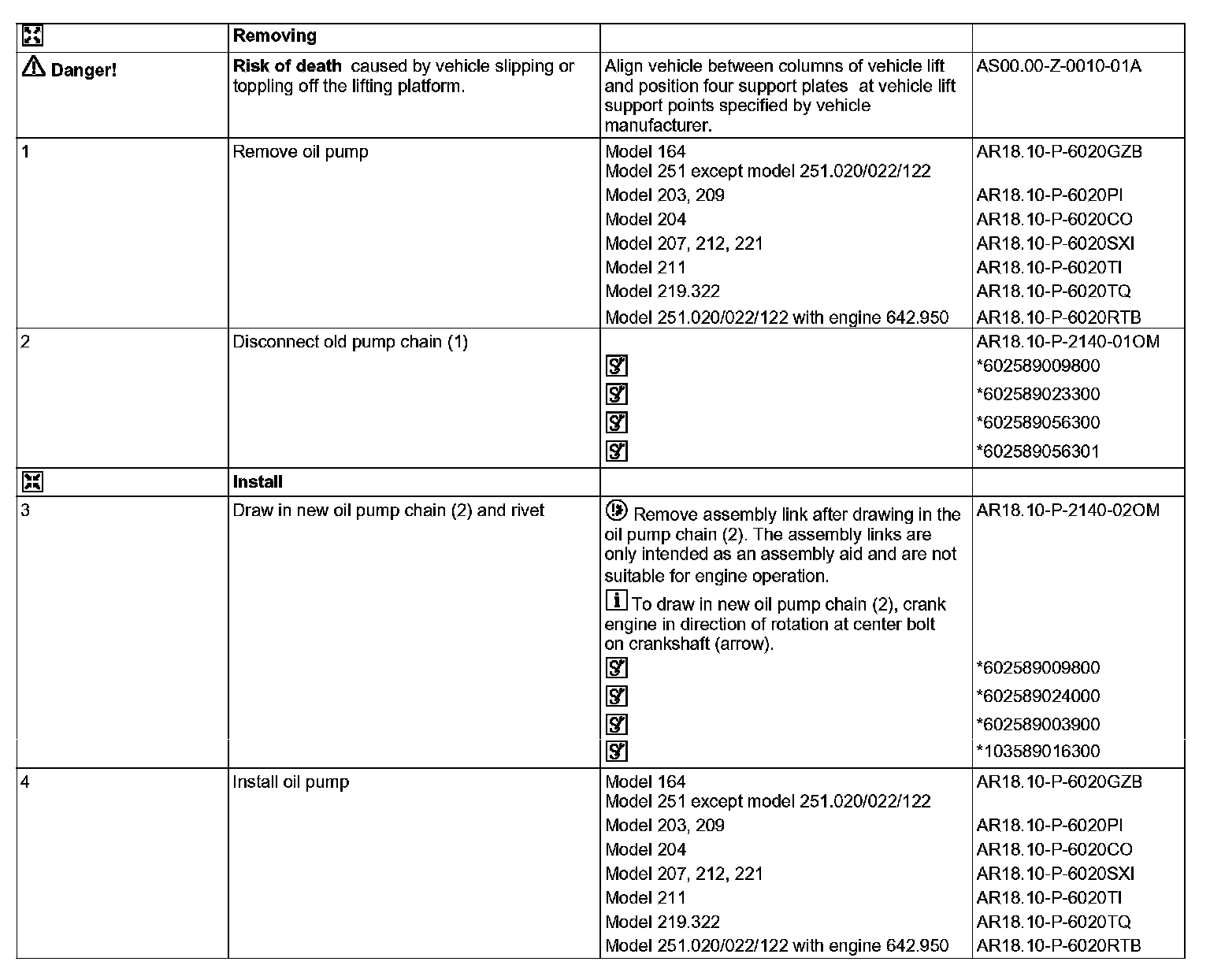

Steps 1-4:




Special Tools:
