System Diagram

PE15.20-U-2051RAA Electrical Function Schematic For Preheating

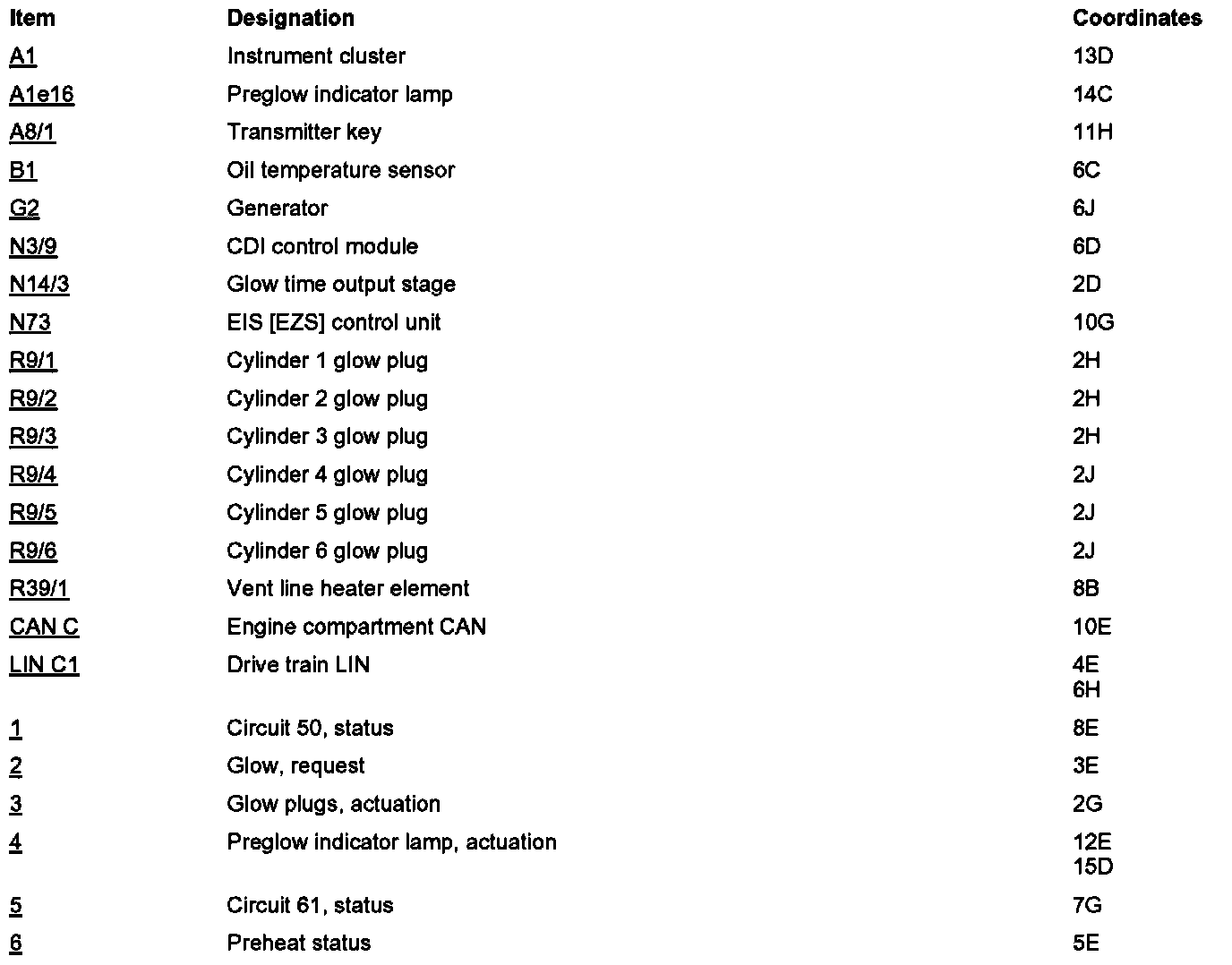

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
