PE82.60-U-2050RAA Function Diagram of Electrical System of Radio

PE82.60-U-2050RAA Function Diagram of Electrical System of Radio
- with CODE (530) COMAND APS USA (with navigation system)
- up to model year 2008

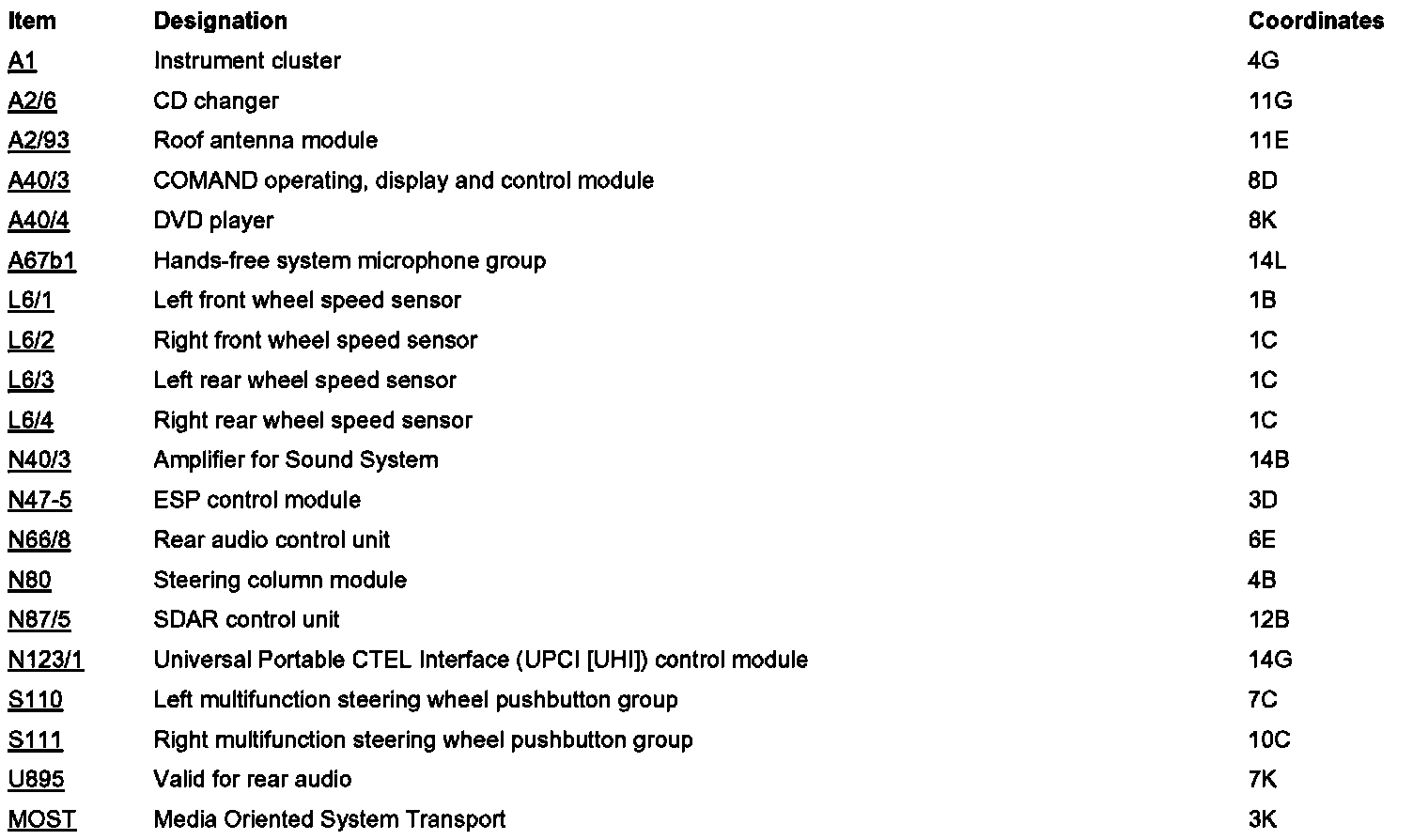

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
