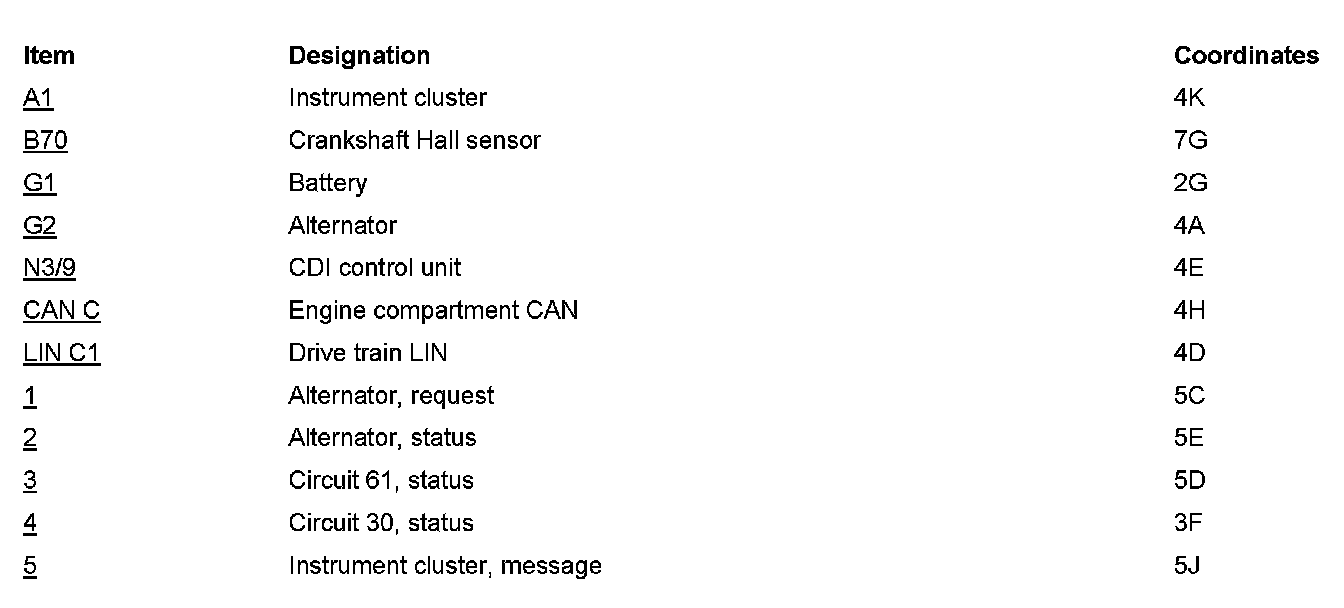

PE07.10-U-2709RAA Electrical Function Schematic For Alternator Interface

PE07.10-U-2709RAA Electrical Function Schematic For Alternator Interface

ENGINE 642.8 /9 in MODEL 251.0 /1










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
