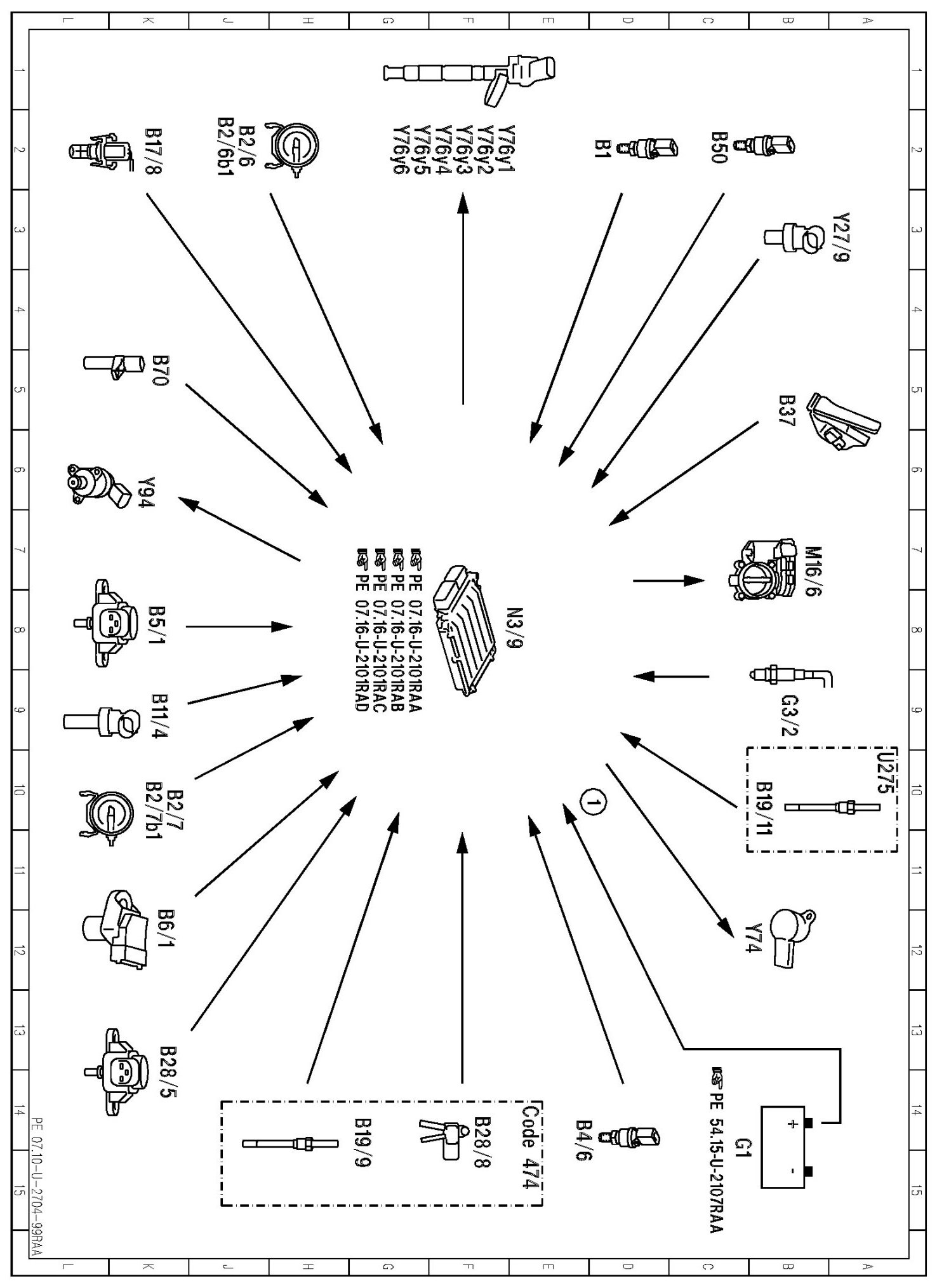

PE07.10-U-2704RAA Electrical Function Diagram For Injection Control

PE07.10-U-2704RAA Electrical Function Diagram For Injection Control

ENGINE 642.8 /9 in MODEL 251.0 /1 MY










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
