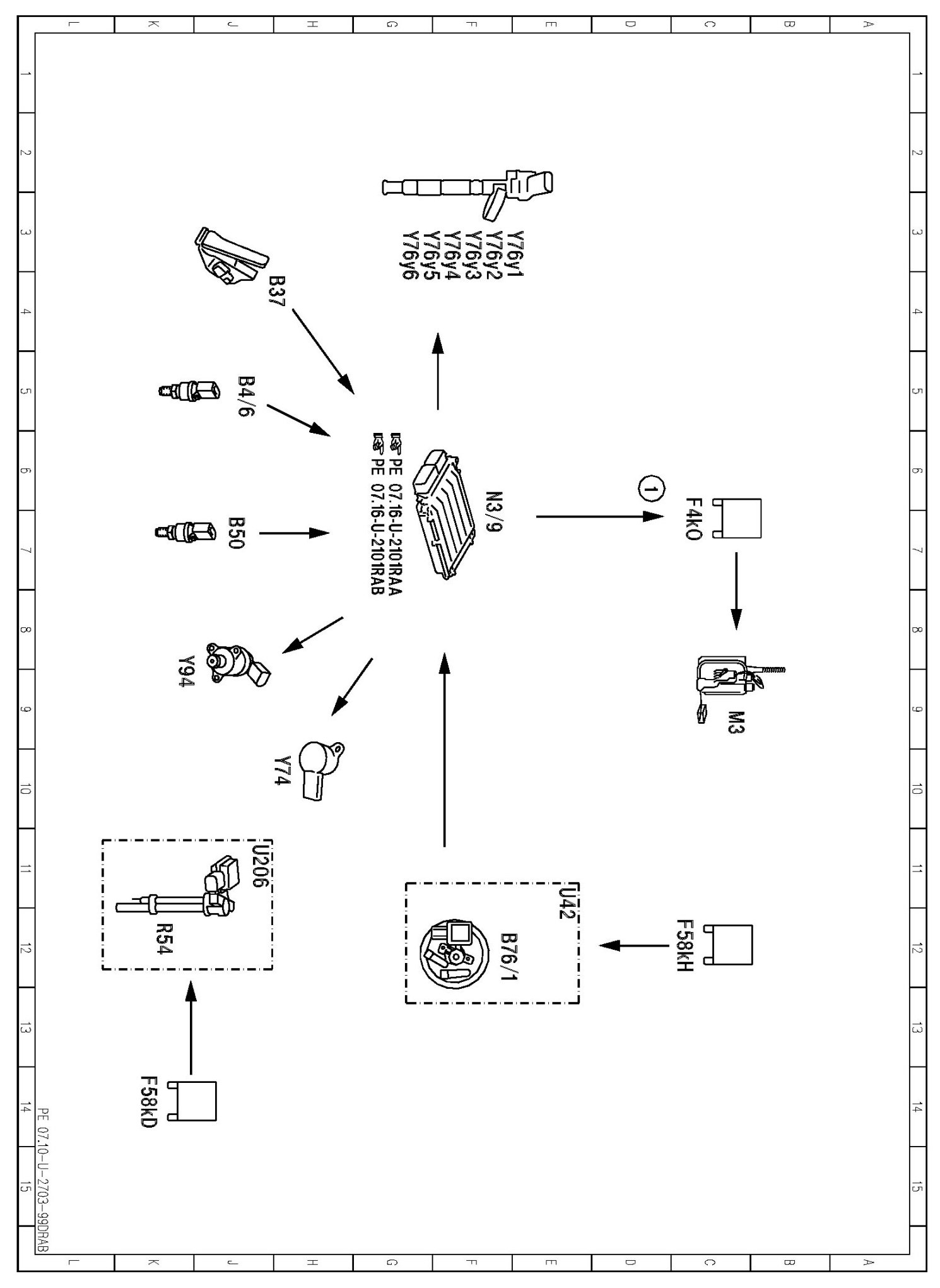

PE07.10-U-2703RAB Electrical Function Schematic For Fuel Supply

PE07.10-U-2703RAB Electrical Function Schematic For Fuel Supply

ENGINE 642.9 in MODEL 251.0 /1

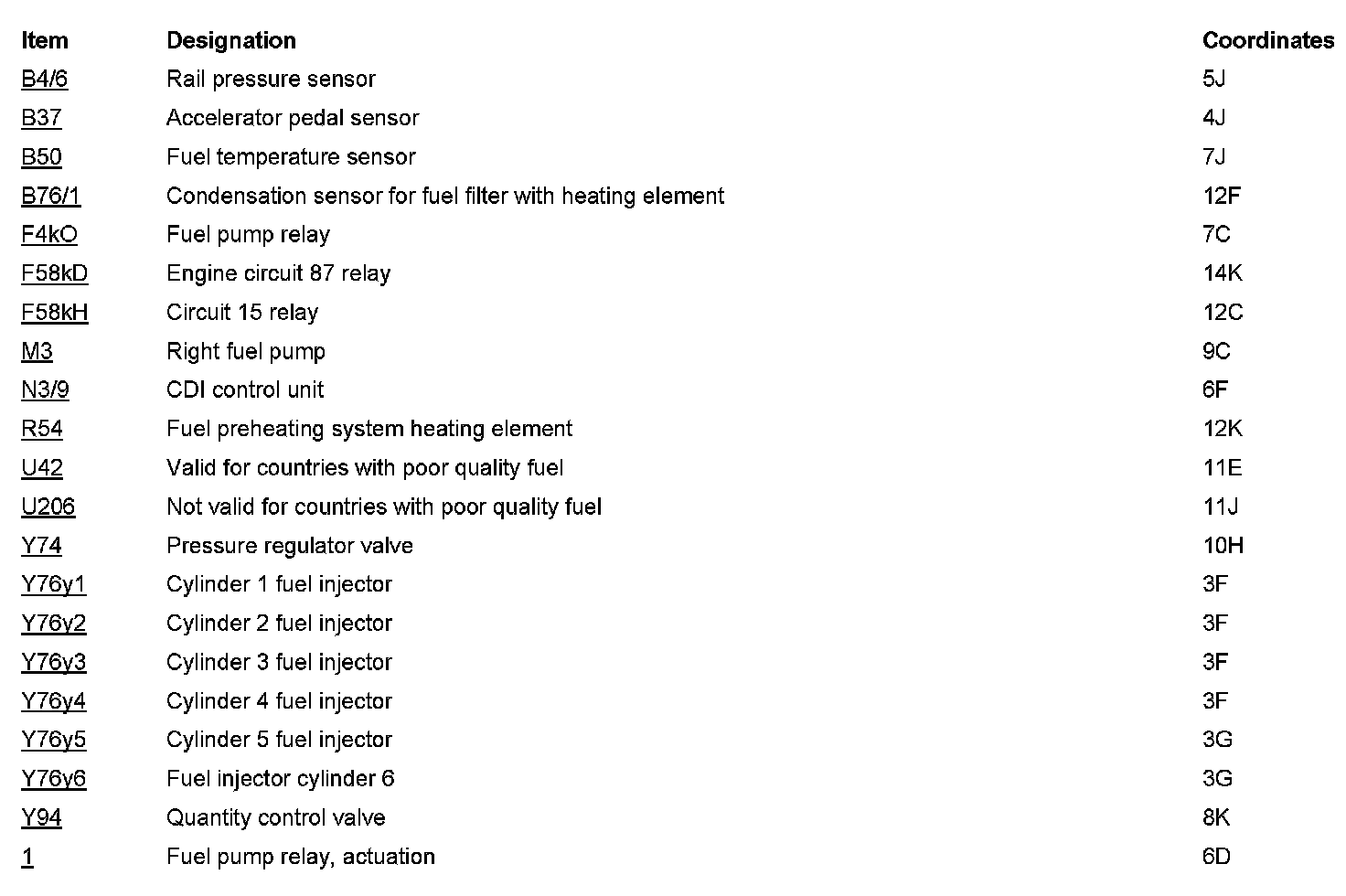

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
