PE82.70-P-2060RAB Electrical Function Diagram For Mobile Phone Setting Up Call and Ending Call

Electrical Function Diagram For Mobile Phone Setting Up Call And Ending Call PE82.70-P-2060RAB

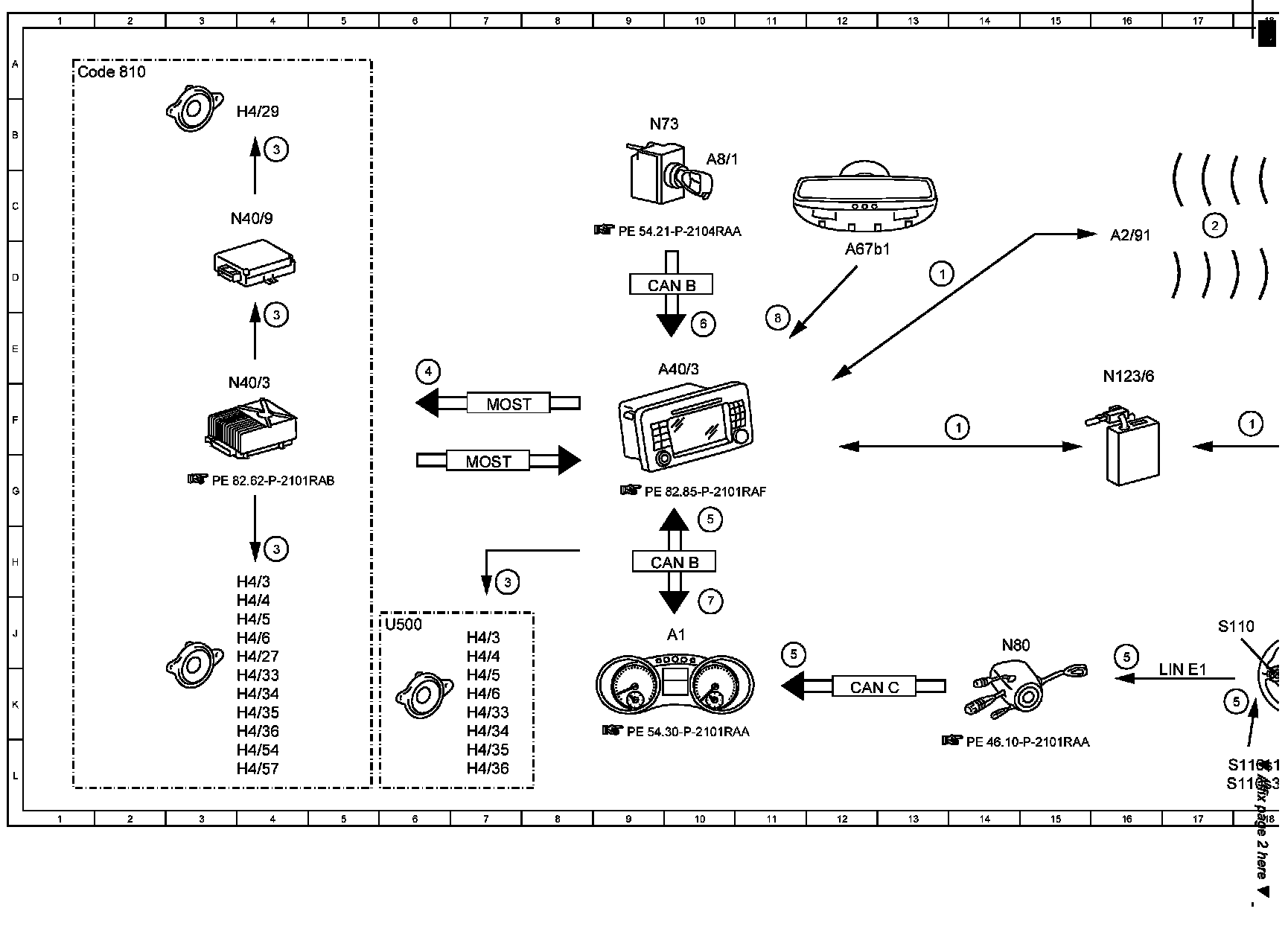

Function Diagram (Part 1):

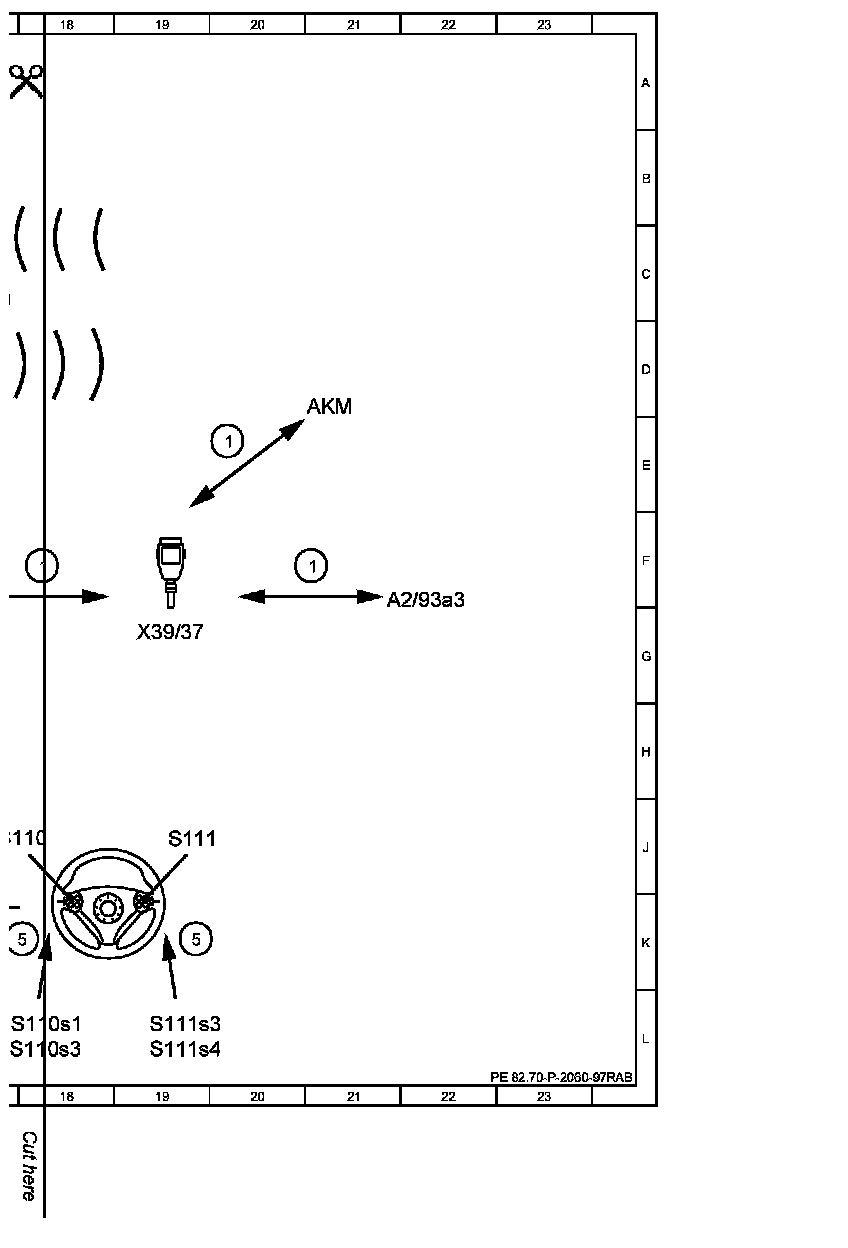

Function Diagram (Part 2):

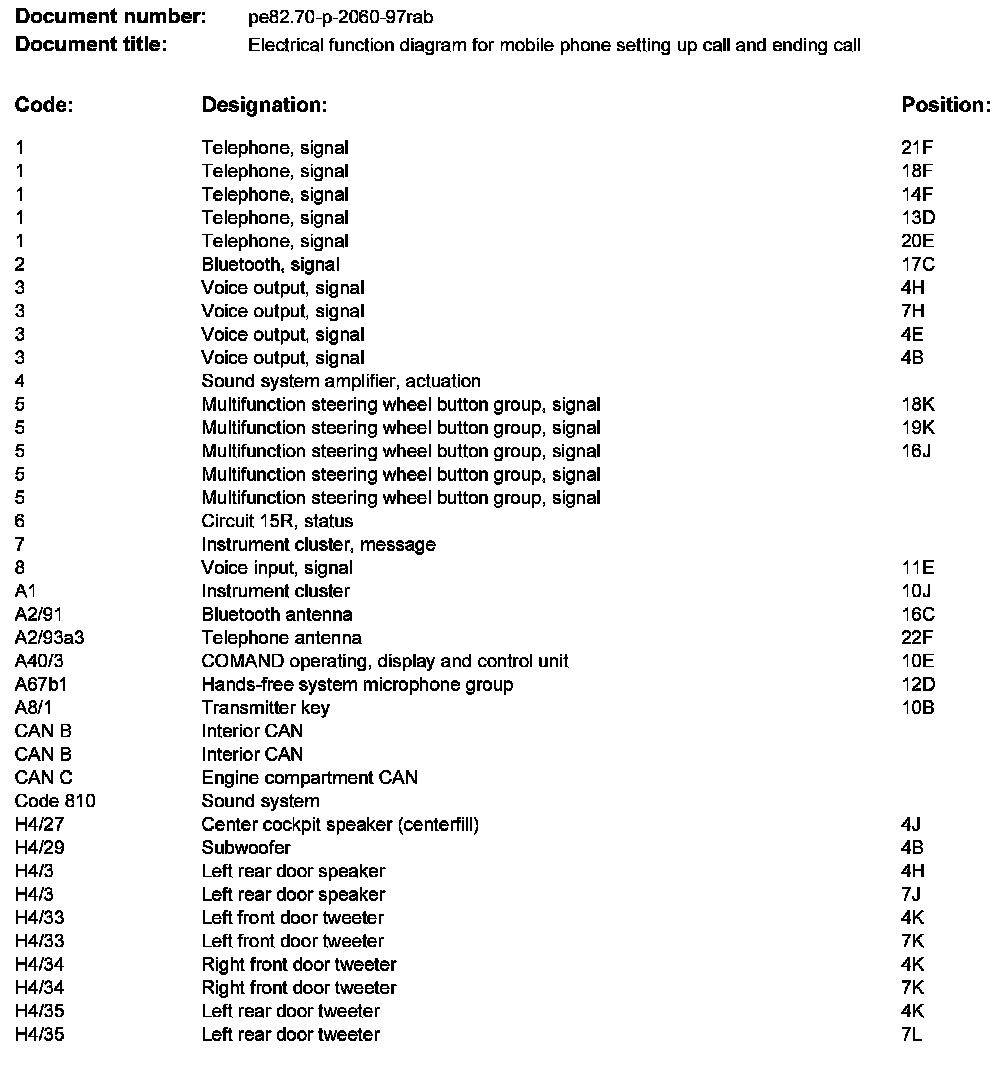

Component Description/Coordinates, 1 To H4/35:

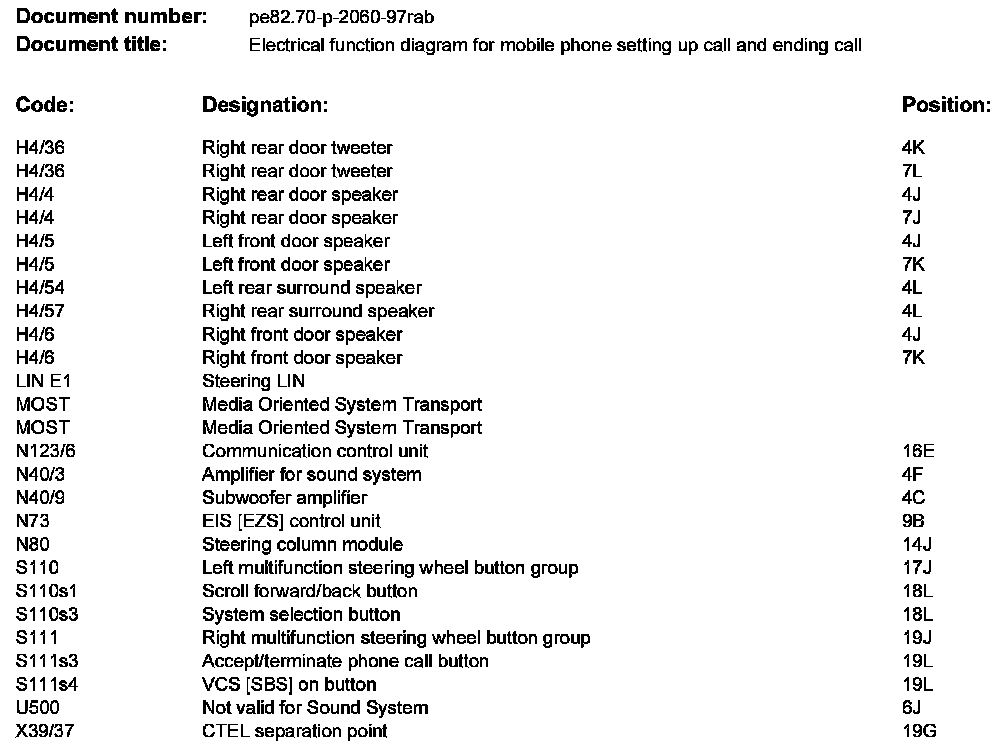

Component Description/Coordinates, H4/36 To X39/37:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
