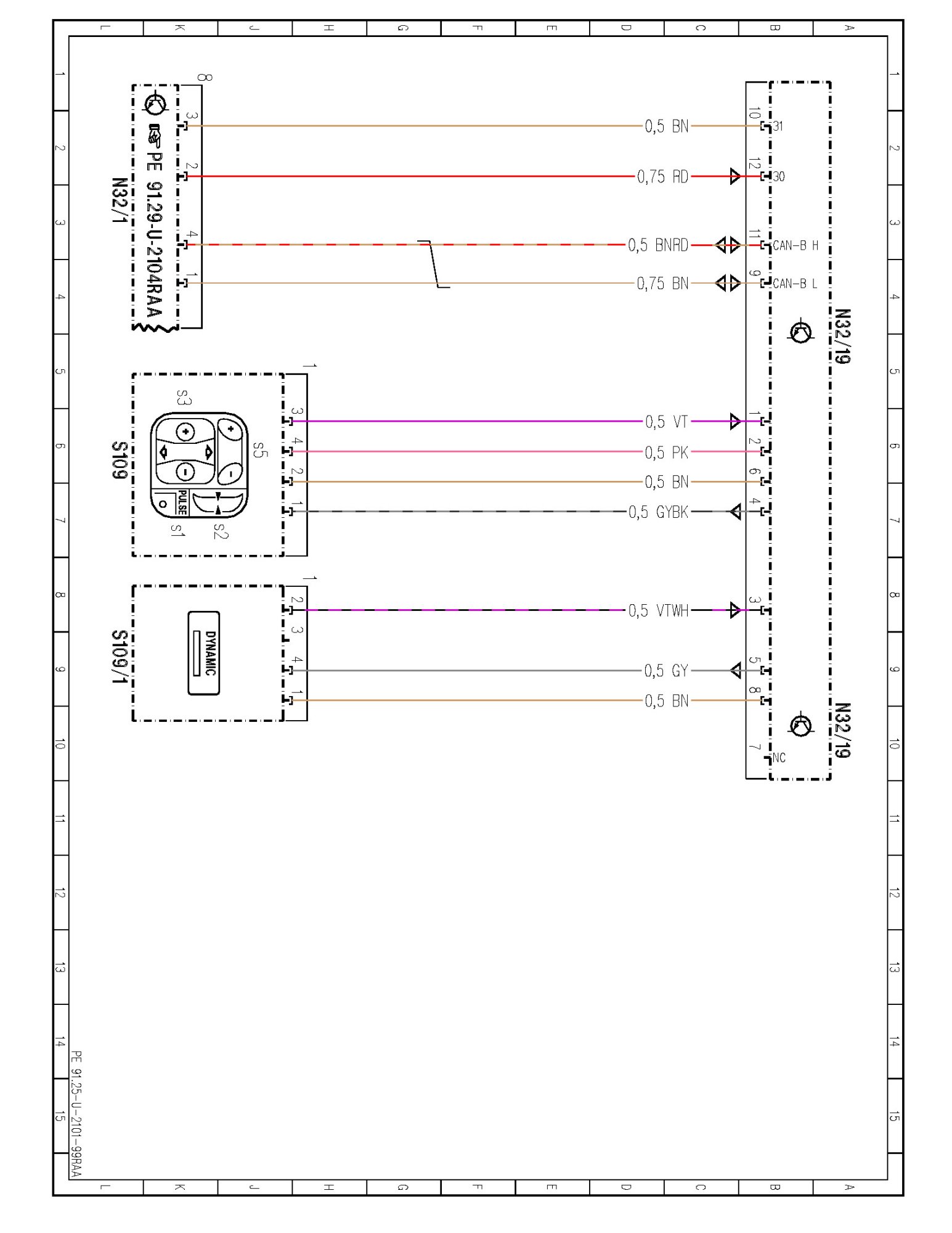

PE91.25-U-2101RAA Left Front Dynamic Seat Control Module



PE91.25-U-2101RAA Left Front Dynamic Seat Control Module
- with CODE (433) Left front multicontour seat
- Control unit N32/19










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
