Electrical Diagrams

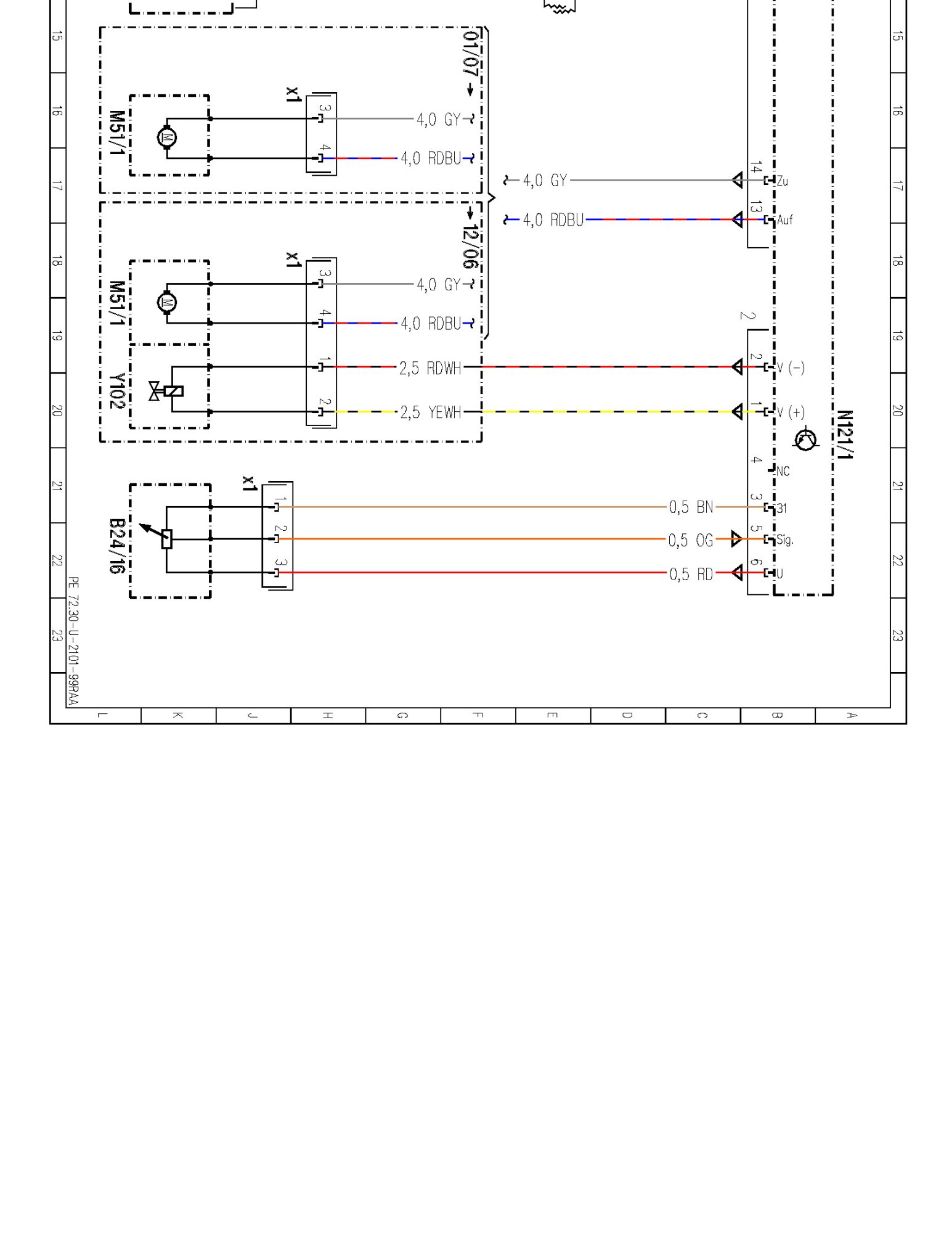

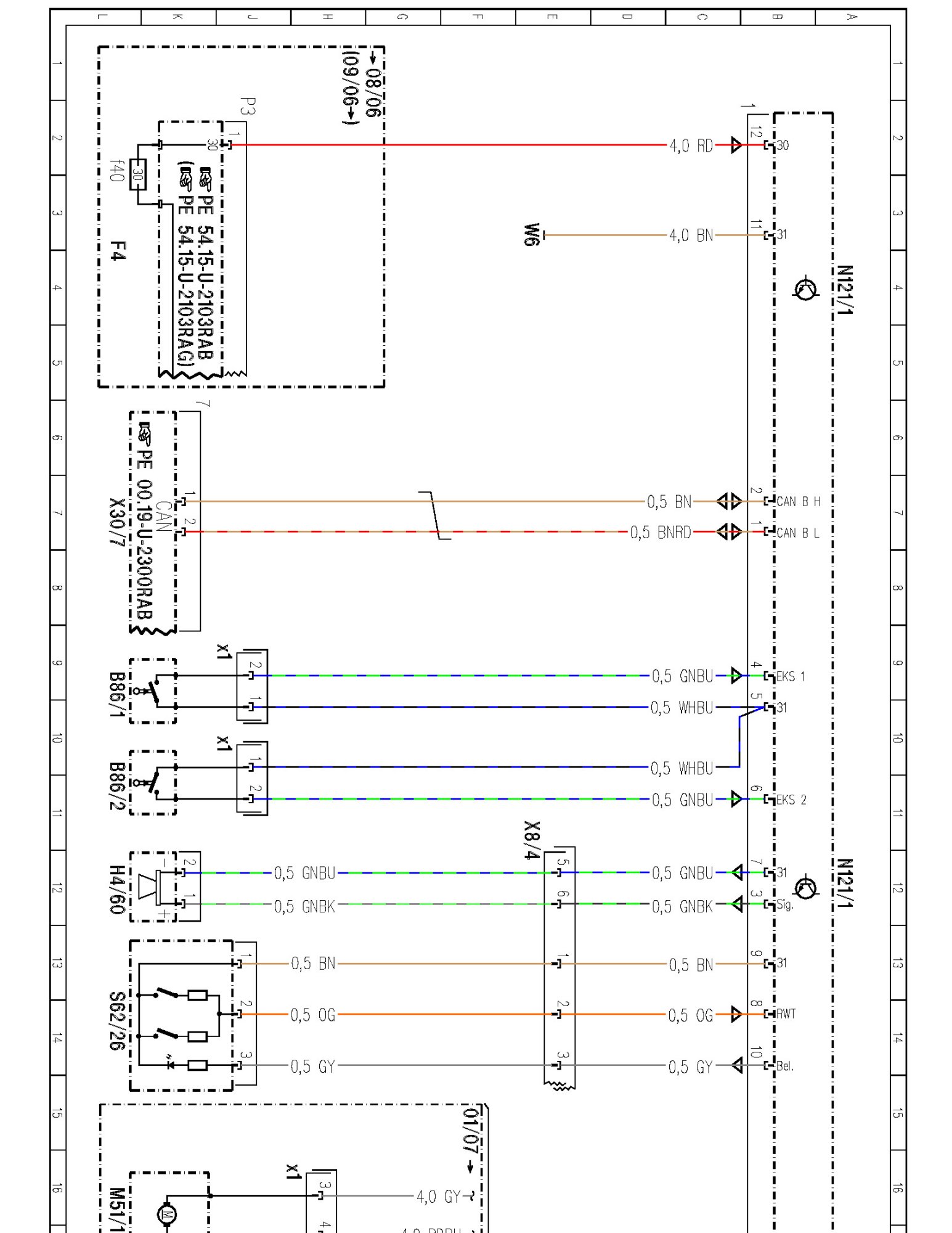

PE72.30-U-2101RAA Remote Trunk Locking Control Module
- with CODE (890) Automatic rear-end door
- control unit N121/1
- up to model year 08

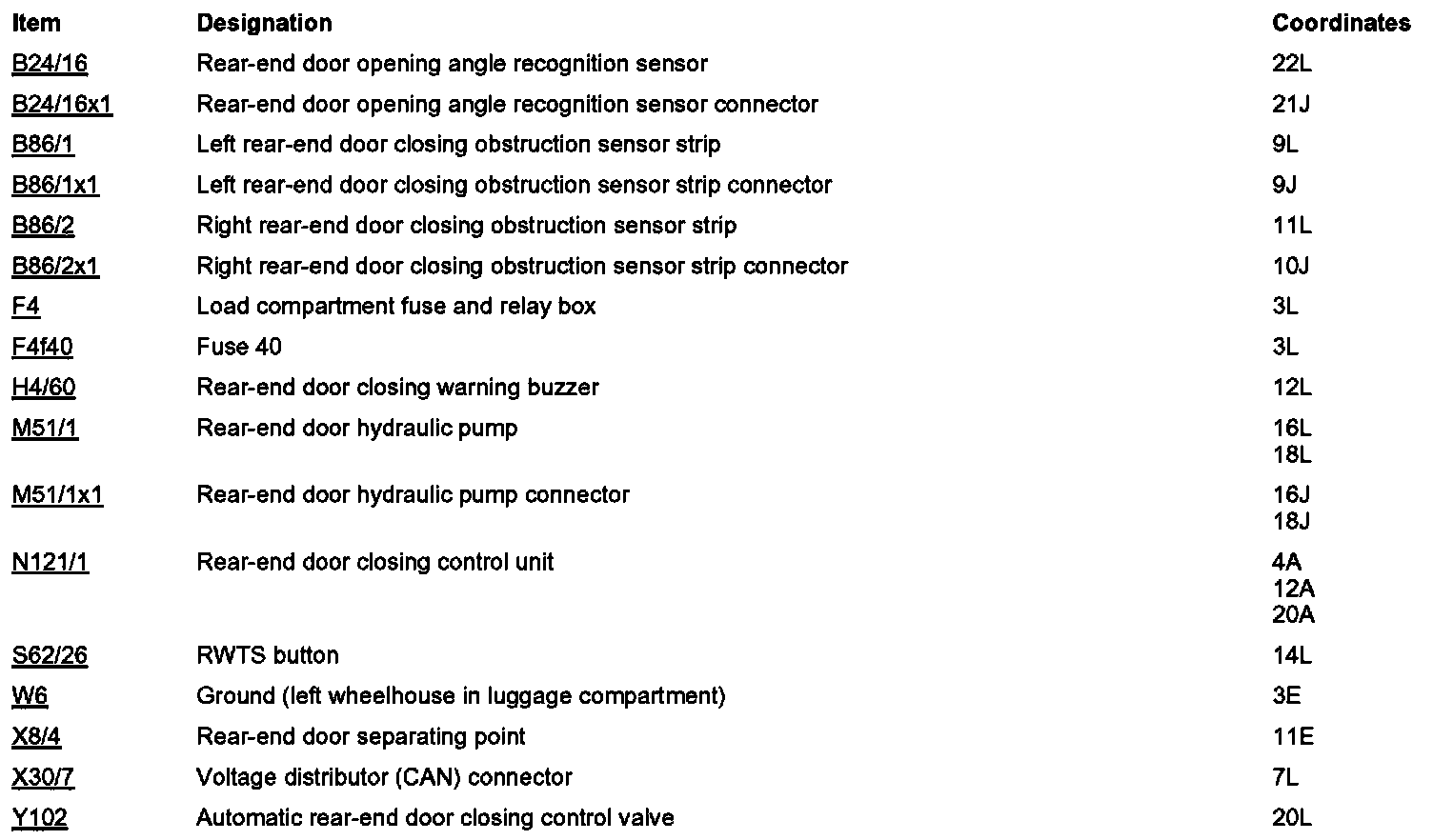

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
