AR91.30-P-0031RT Remove/Install Heated Seats and Seat Ventilation Control Unit

AR91.30-P-0031RT Remove/Install Heated Seats And Seat Ventilation Control Unit
- with CODE (401) Front comfort seats, incl. seat heating and ventilation
- with CODE (443) Steering wheel heater
- with CODE (872) Electrically heated left and right rear seats

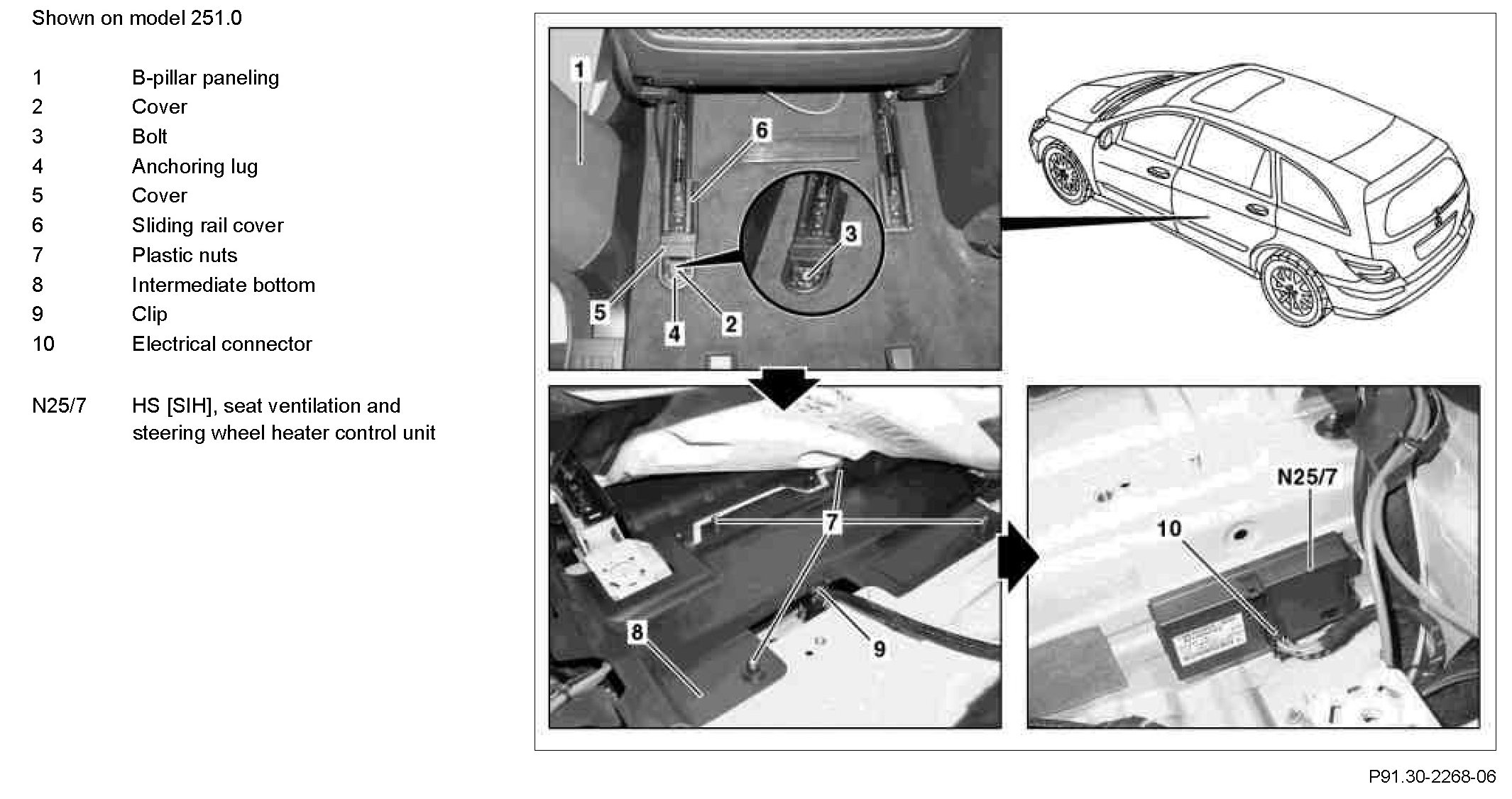

Component Identification:

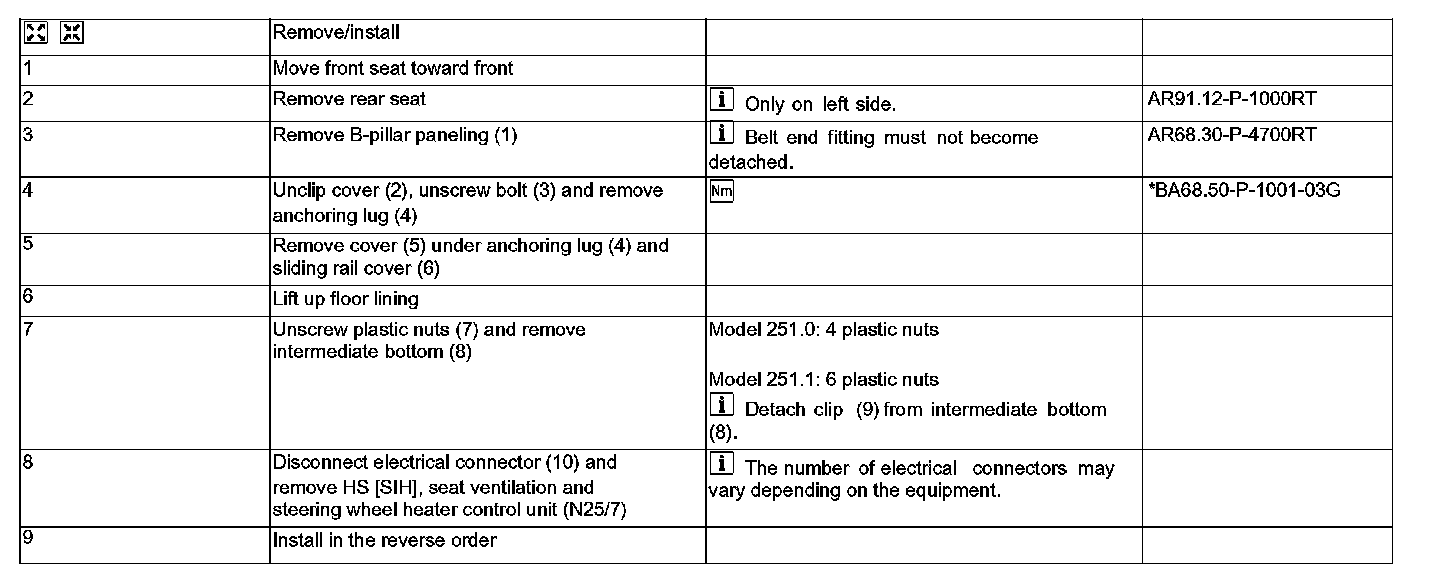

Steps 1 - 9:

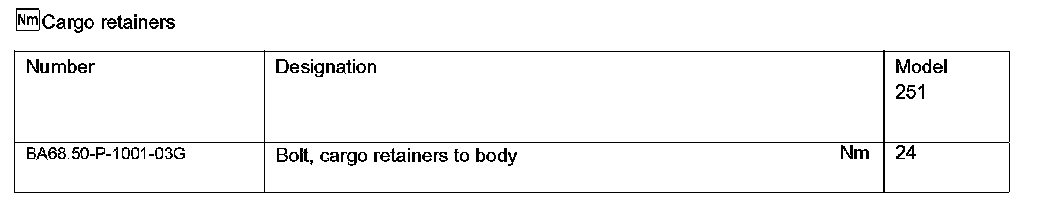

Cargo Retainers:

Special Tools:
