GF80.30-P-6000RT Infrared Remote Control Receiver, Component Description

GF80.30-P-6000RT Infrared Remote Control Receiver, Component Description

Component Identification:

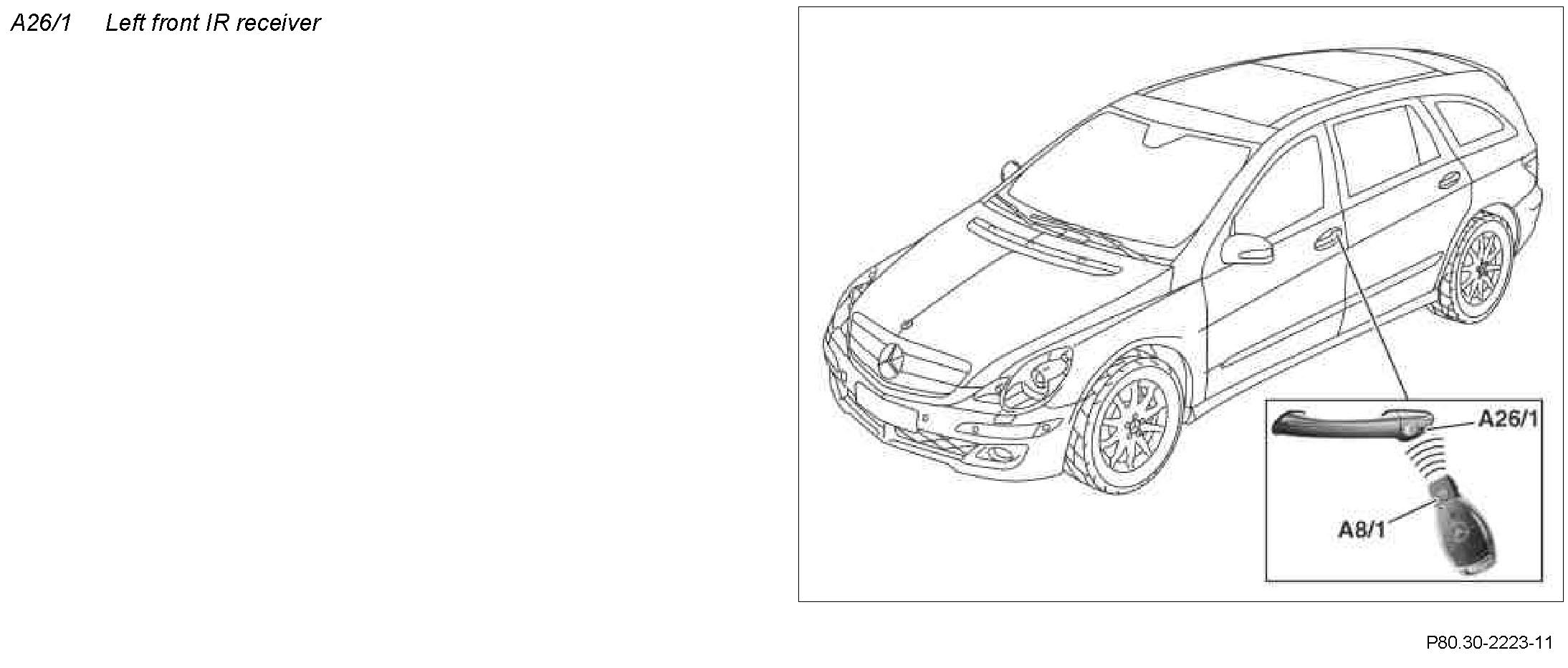

Location
The IR receiver unit is located in the driver door handle

Task
The IR receiver receives the signal from the transmitter key (A8/1) and relays it to the left front door control unit.N69/1

Receiver signals
^ Locking and unlocking central locking (CL)
^ Rear-end door remote opening
^ Automatic rear-end door, code 890
^ Power window convenience feature
^ Tilting/sliding door convenience feature (with power glass tilting/sliding roof, code 414)
^ Panoramic sliding roof convenience actuation (with panoramic sliding roof, code 413)
^ Vent window convenience actuation
