AR88.80-P-0003RT Remove/Install Covers on Rear-End Door Sealing Frame



AR88.80-P-0003RT Remove/Install Covers On Rear-End Door Sealing Frame

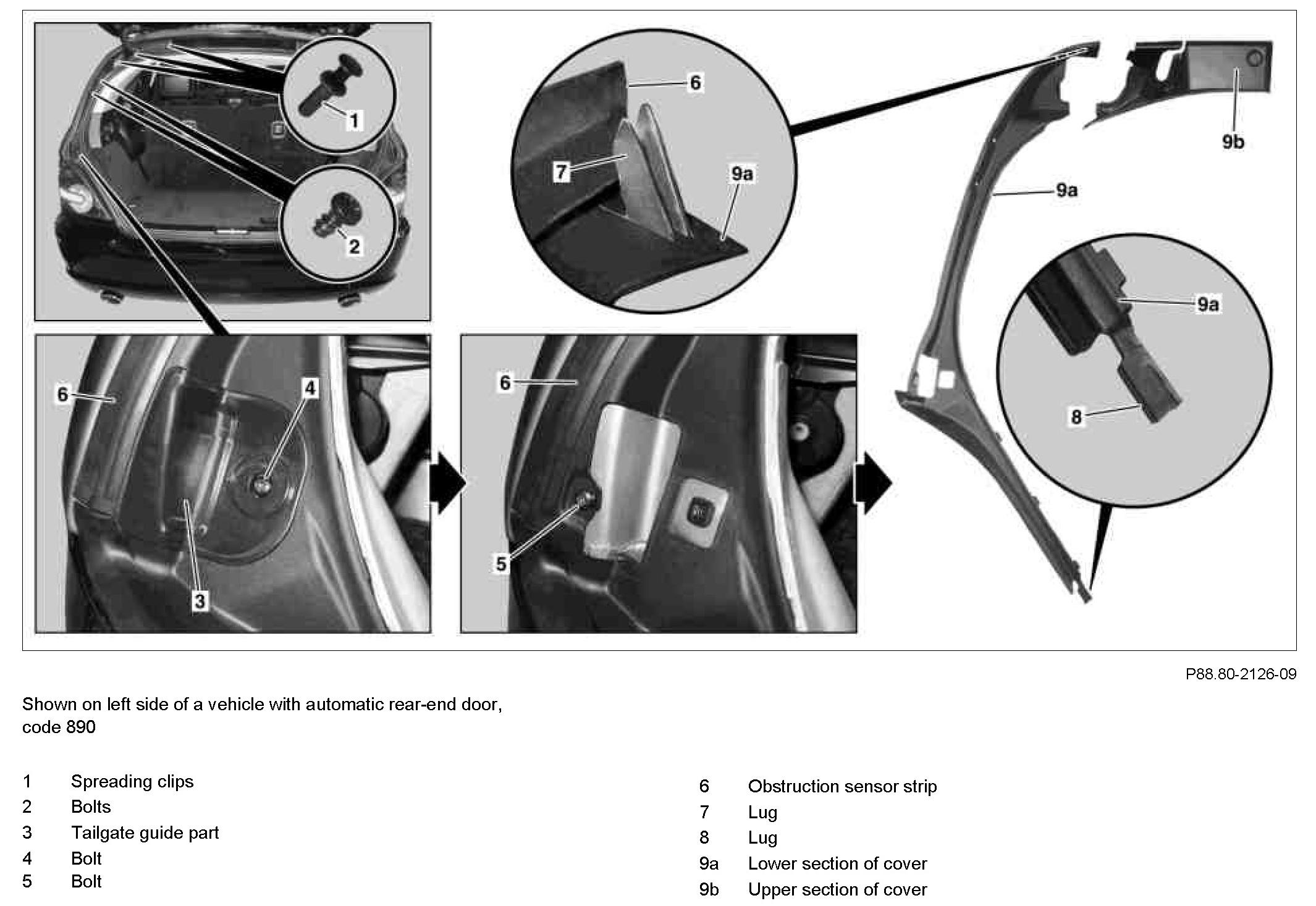

Component Identification:

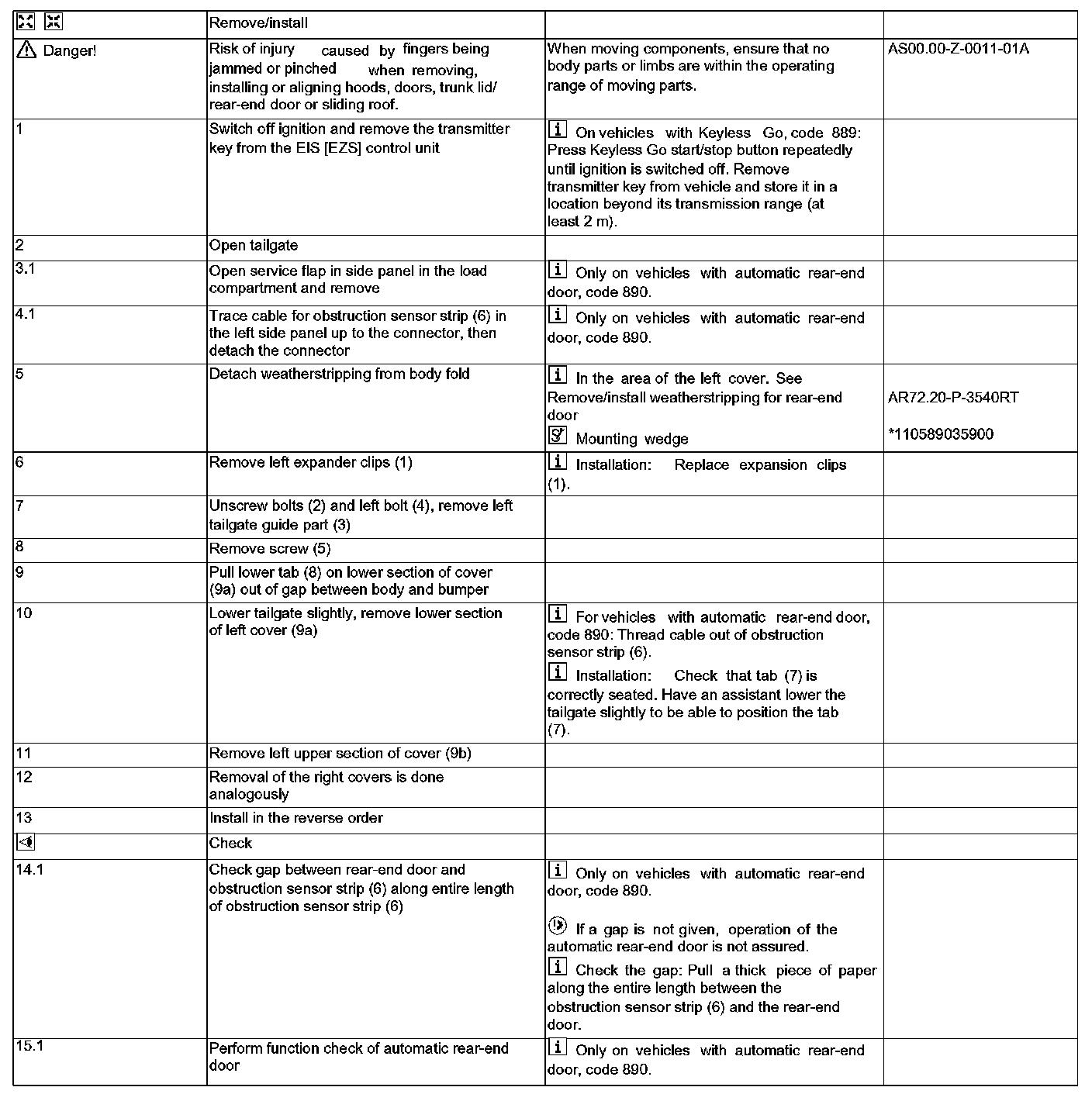

Steps 1 - 15.1:

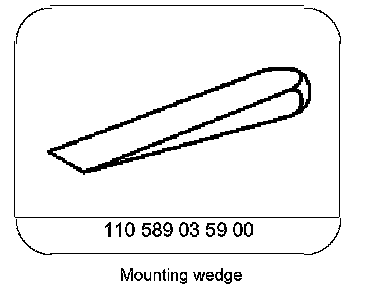

Special Tools:
