AR72.20-P-3540RT Remove/Install Sealing Frame on Rear-End Door
AR72.20-P-3540RT Remove/Install Sealing Frame on Rear-End Door
AR72.20-P-3540RT Remove/Install Sealing
Frame
On Rear-End Door

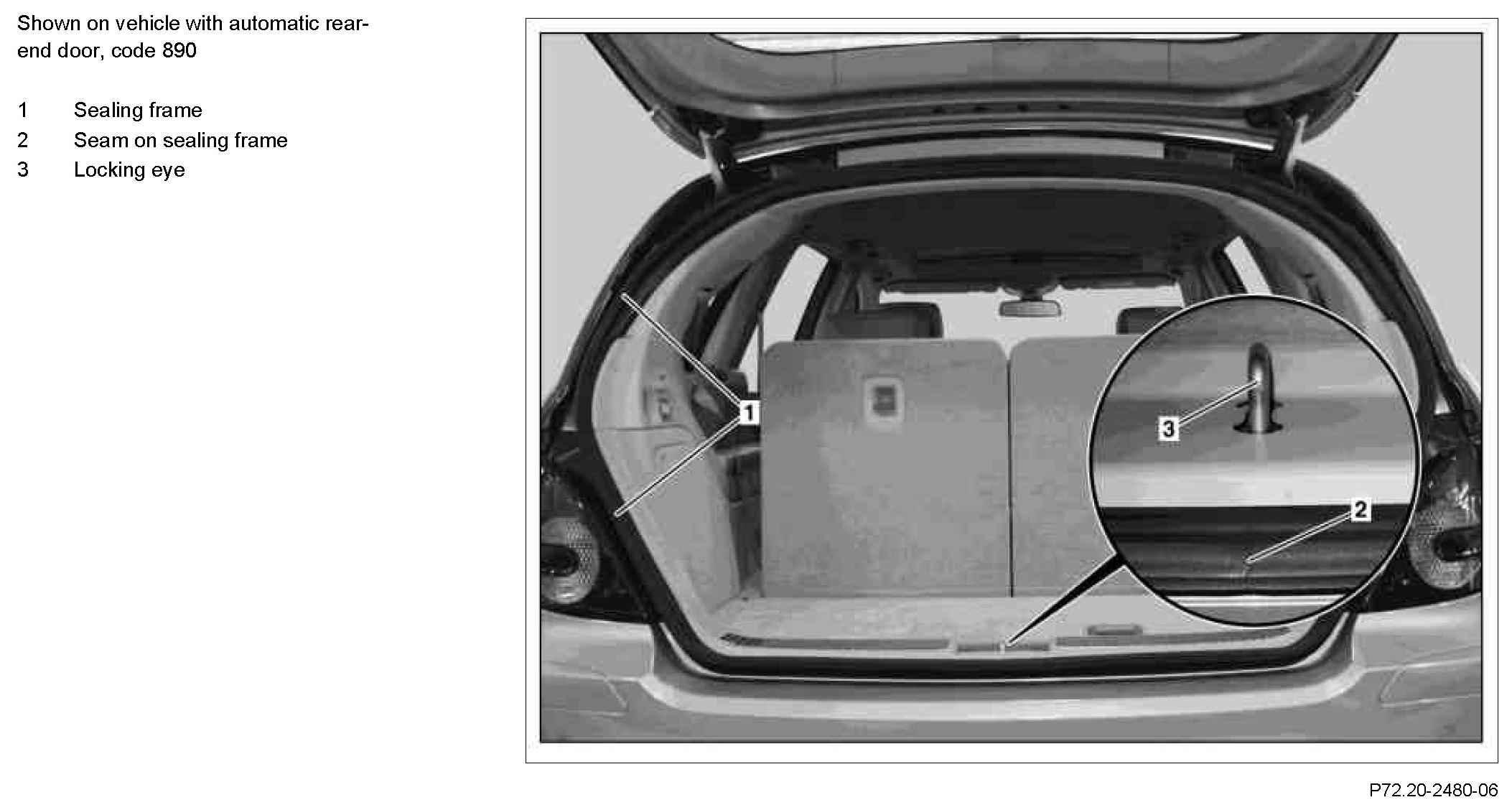

Component Identification:

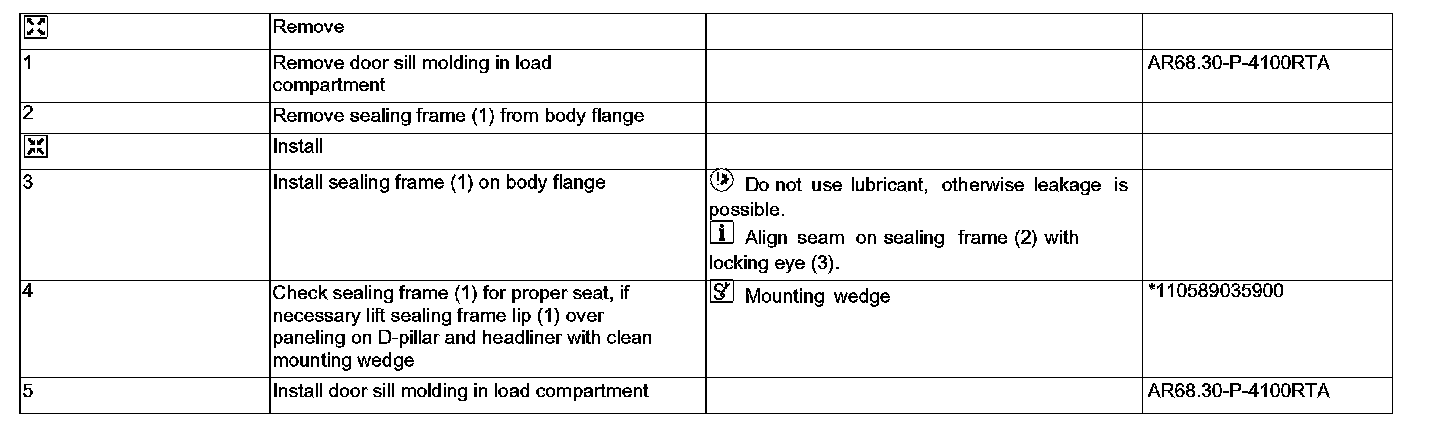

Steps 1 - 5:

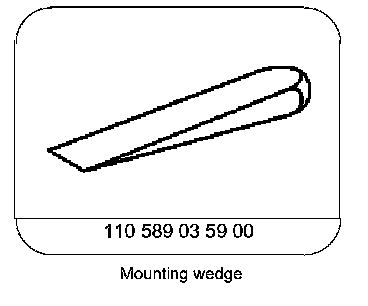

Special Tools:
