Trunk / Liftgate Hinge: Service and Repair
AR72.20-P-2560RT Remove/Install Rear-End Door Hinge

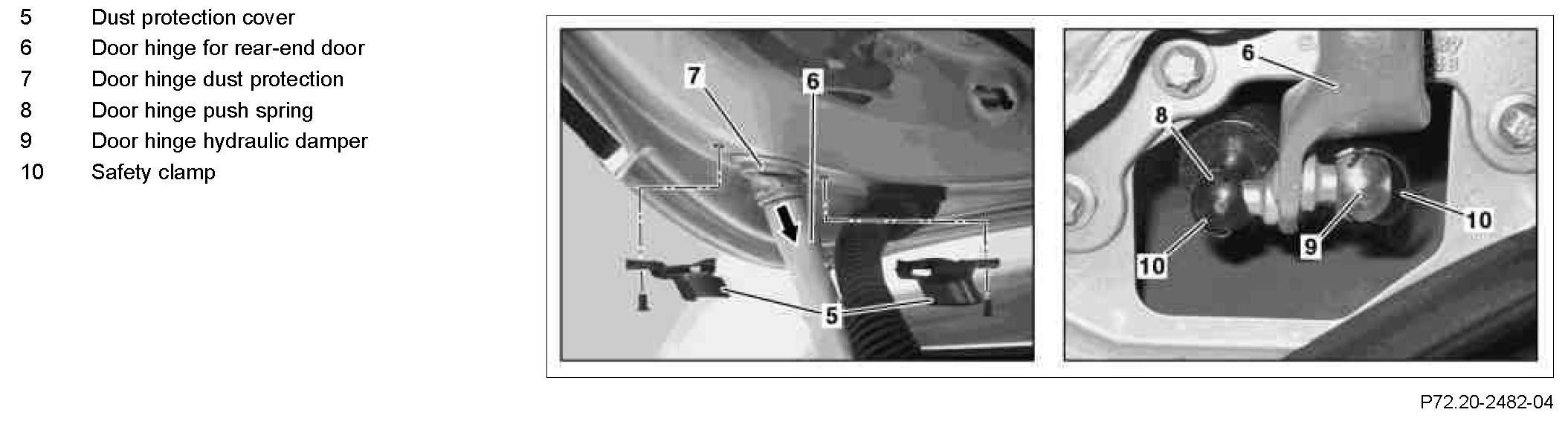

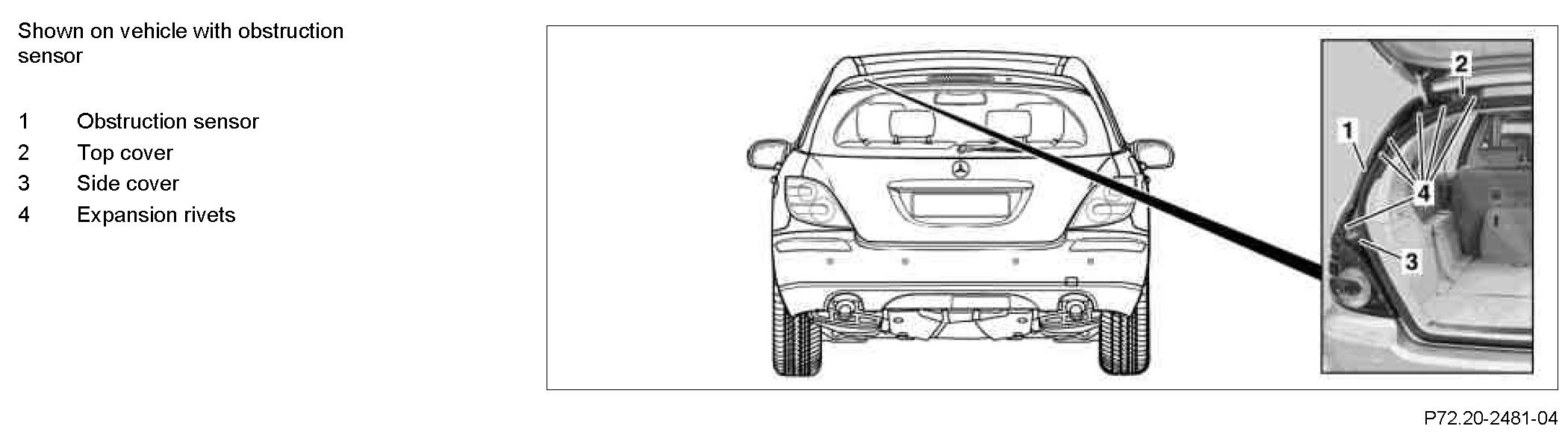

Component Identification:
Component Identification:

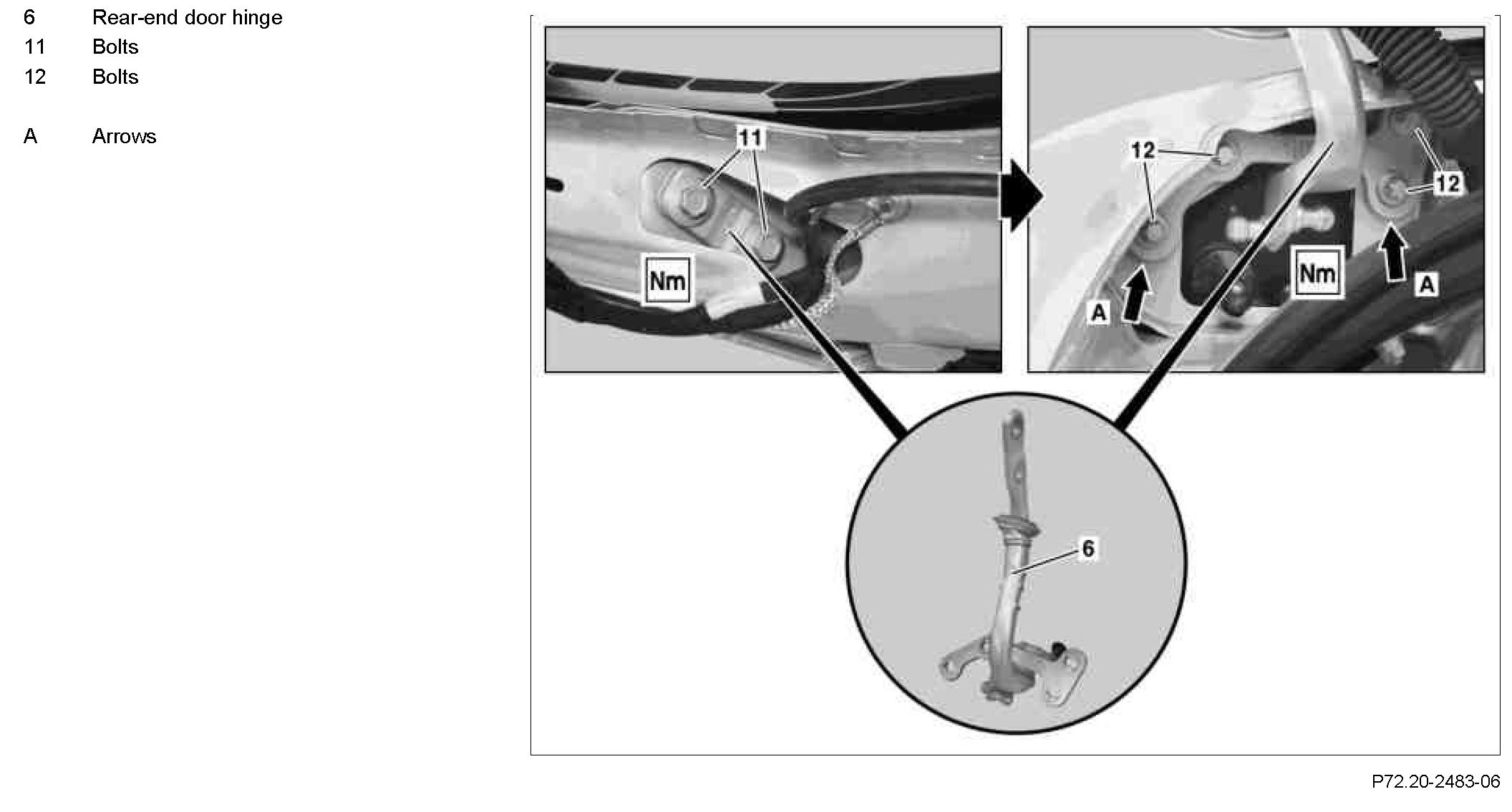

Component Identification:

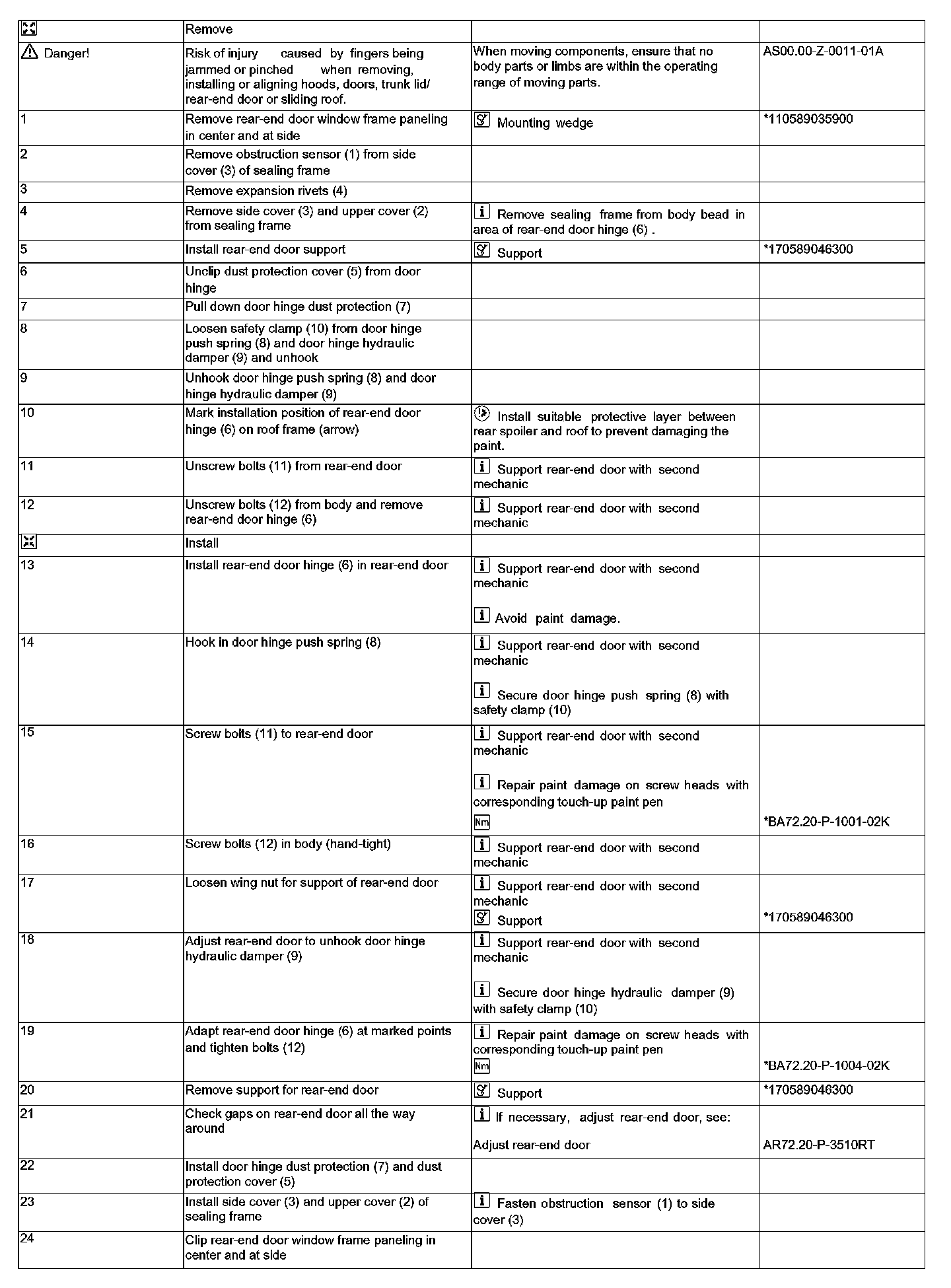

Steps 1 - 24:

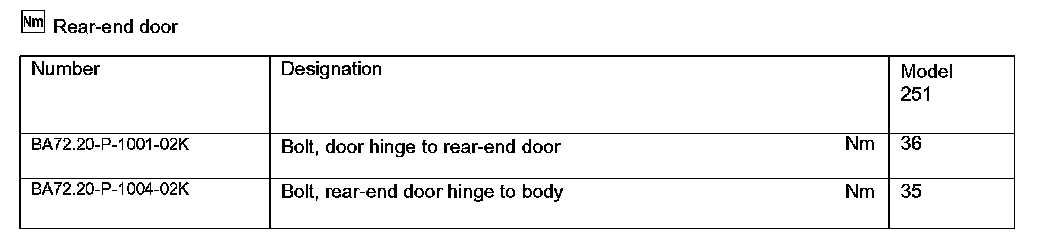

Rear-End Door:

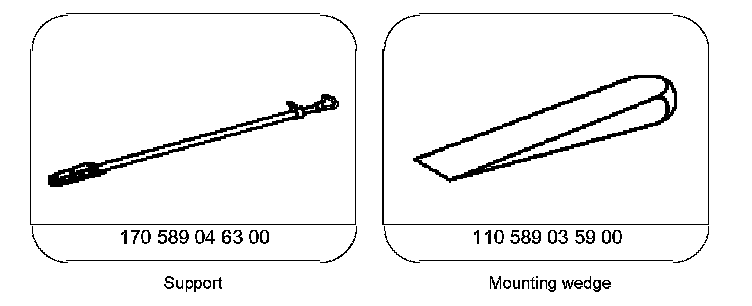

Special Tools:
AR72.20-P-2560RT Remove/Install Rear-End Door Hinge
