Mercedes Benz Truck
>>
2008
>>
R 320 CDI (251.122) V6-3.0L DSL Turbo (642.950)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Service and Repair
>>
AR68.80-P-5800RT Remove/Install Load Compartment Floor
AR68.80-P-5800RT Remove/Install Load Compartment Floor
AR68.80-P-5800RT Remove/Install Load Compartment Floor

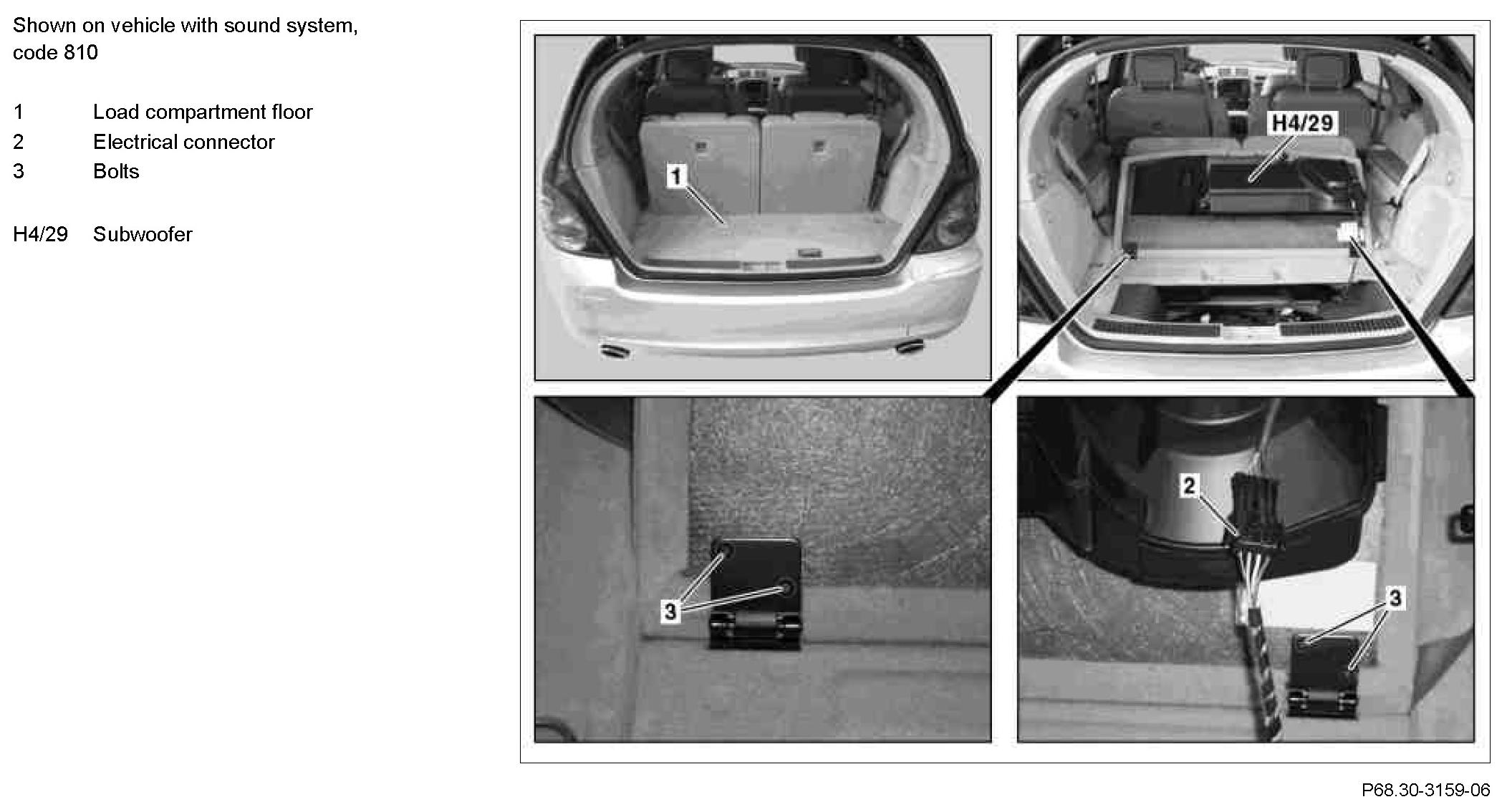

Component Identification:

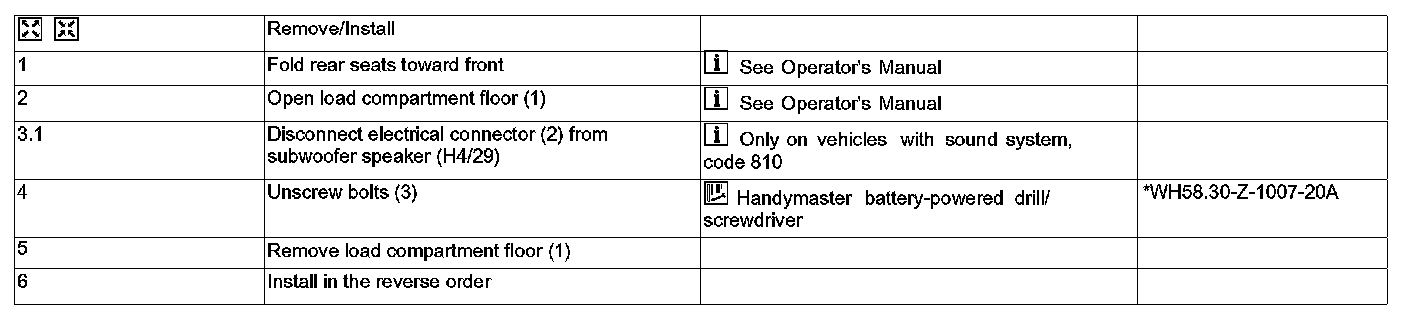

Steps 1 - 6:

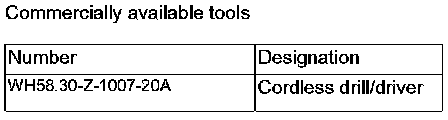

Commercially Available Tools:
