Mercedes Benz Truck
>>
2008
>>
R 320 CDI (251.122) V6-3.0L DSL Turbo (642.950)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Doors
>>
Front Door
>>
Front Door Window Glass
>>
Service and Repair
Front Door Window Glass: Service and Repair
AR72.10-P-1900RT Remove/Install Crank Window In Front Door
Component Identification:

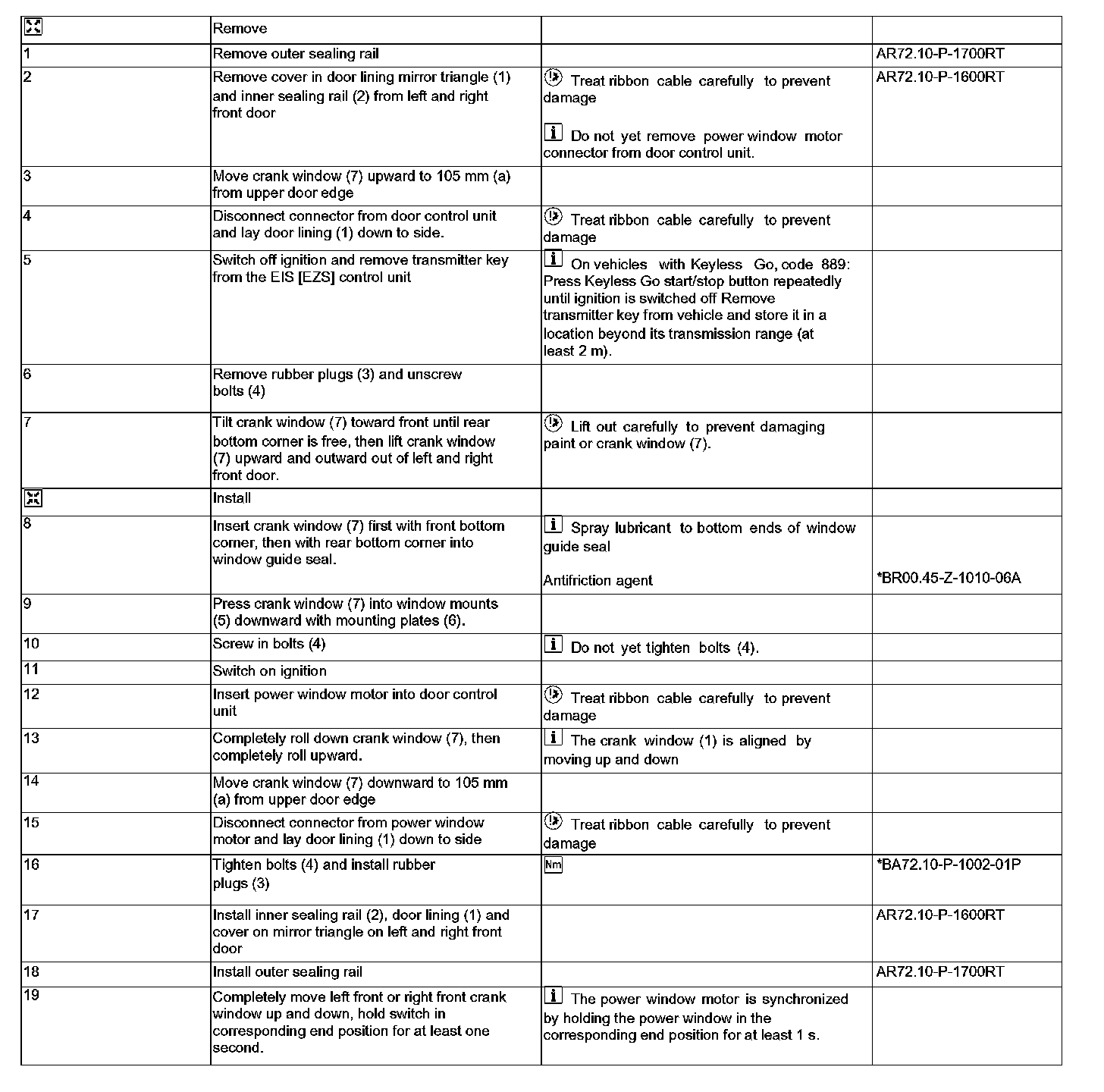

Steps 1 - 19:
Front Door:

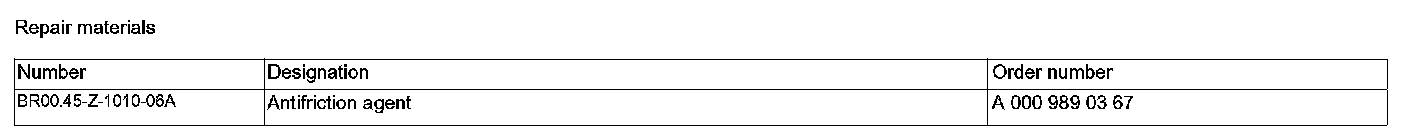

Repair Materials:
