PE82.70-P-2102RAB Voice Control System (VCS [SBS]) Control Unit Wiring Diagram

Voice Control System (VCS [SBS]) Control Unit Wiring Diagram PE82.70-P-2102RAB
- with CODE (813) Voice control system (VCS [SBS])
- except CODE (494) USA version
- Control unit N41/3
- up to model year 08

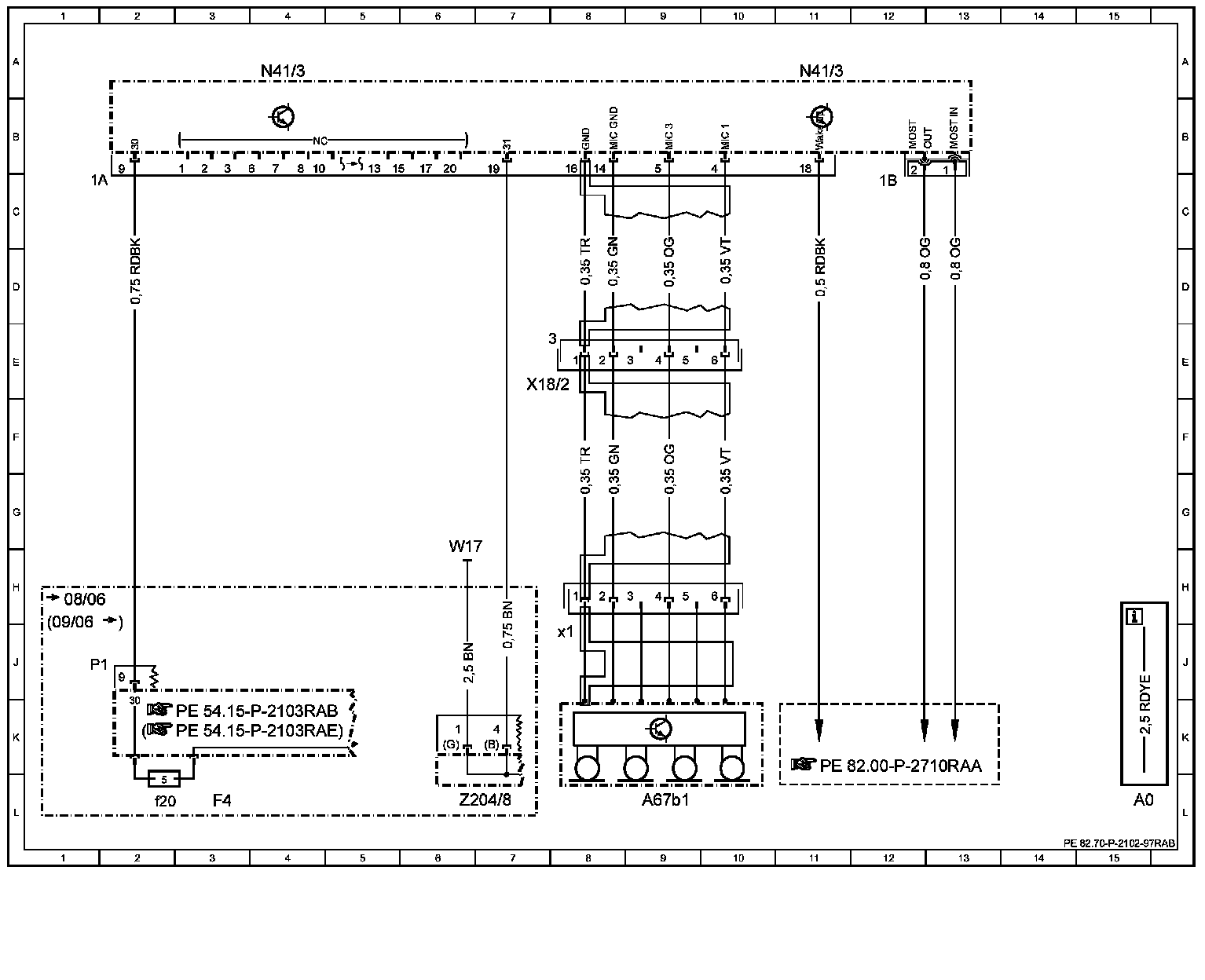

Wiring Diagram:

Component Description/Coordinates, A0 To Z204/8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
