Electrical Diagrams

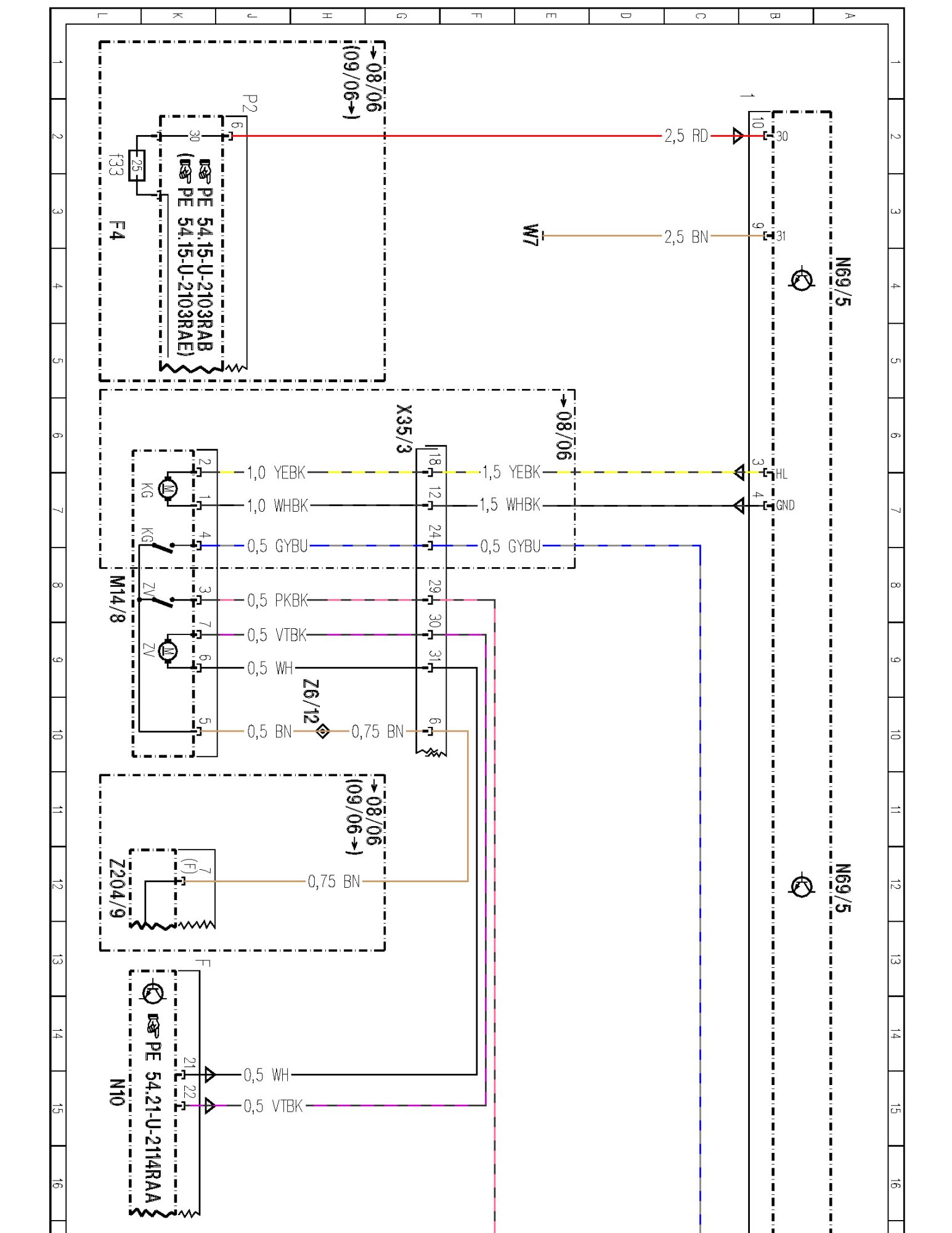

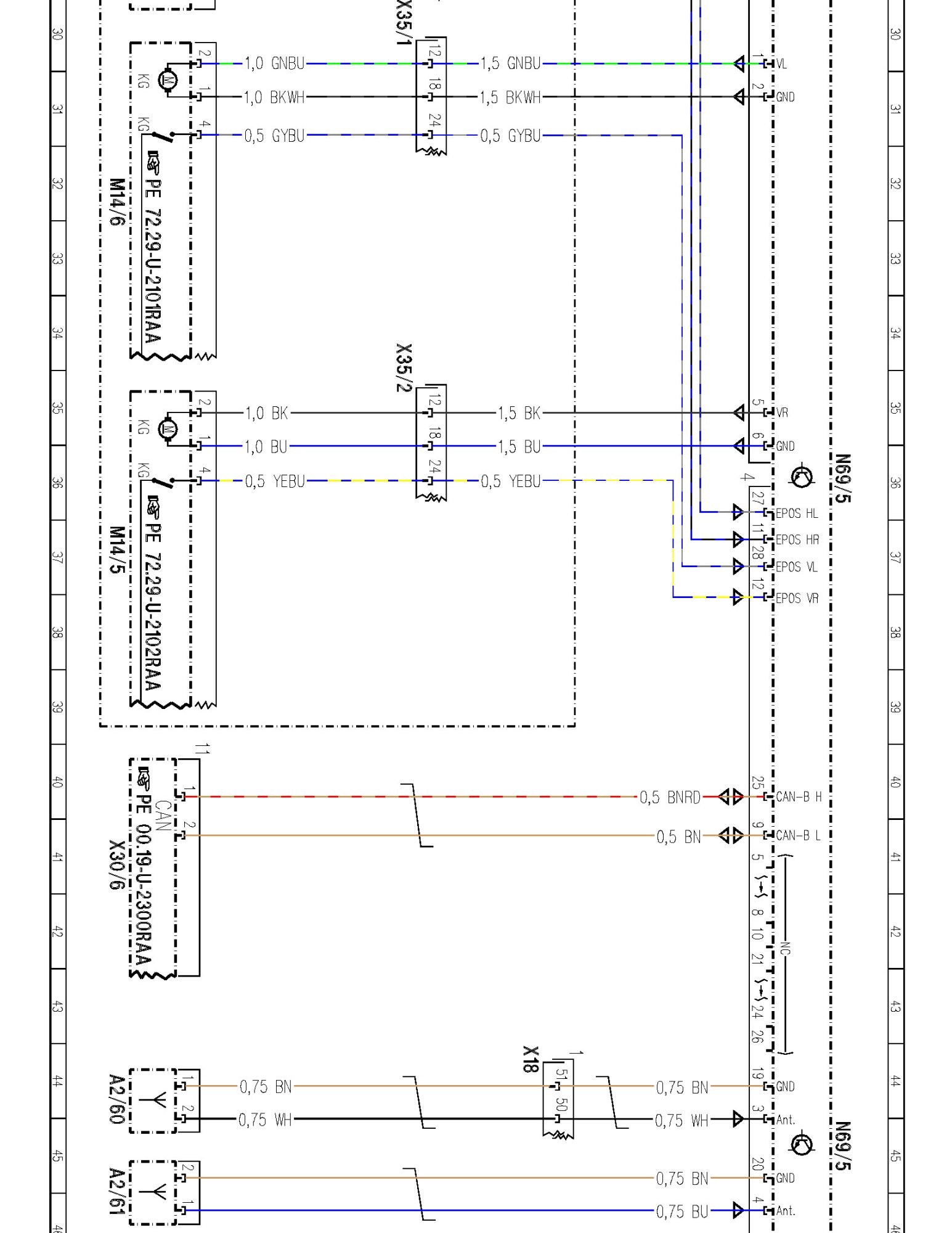

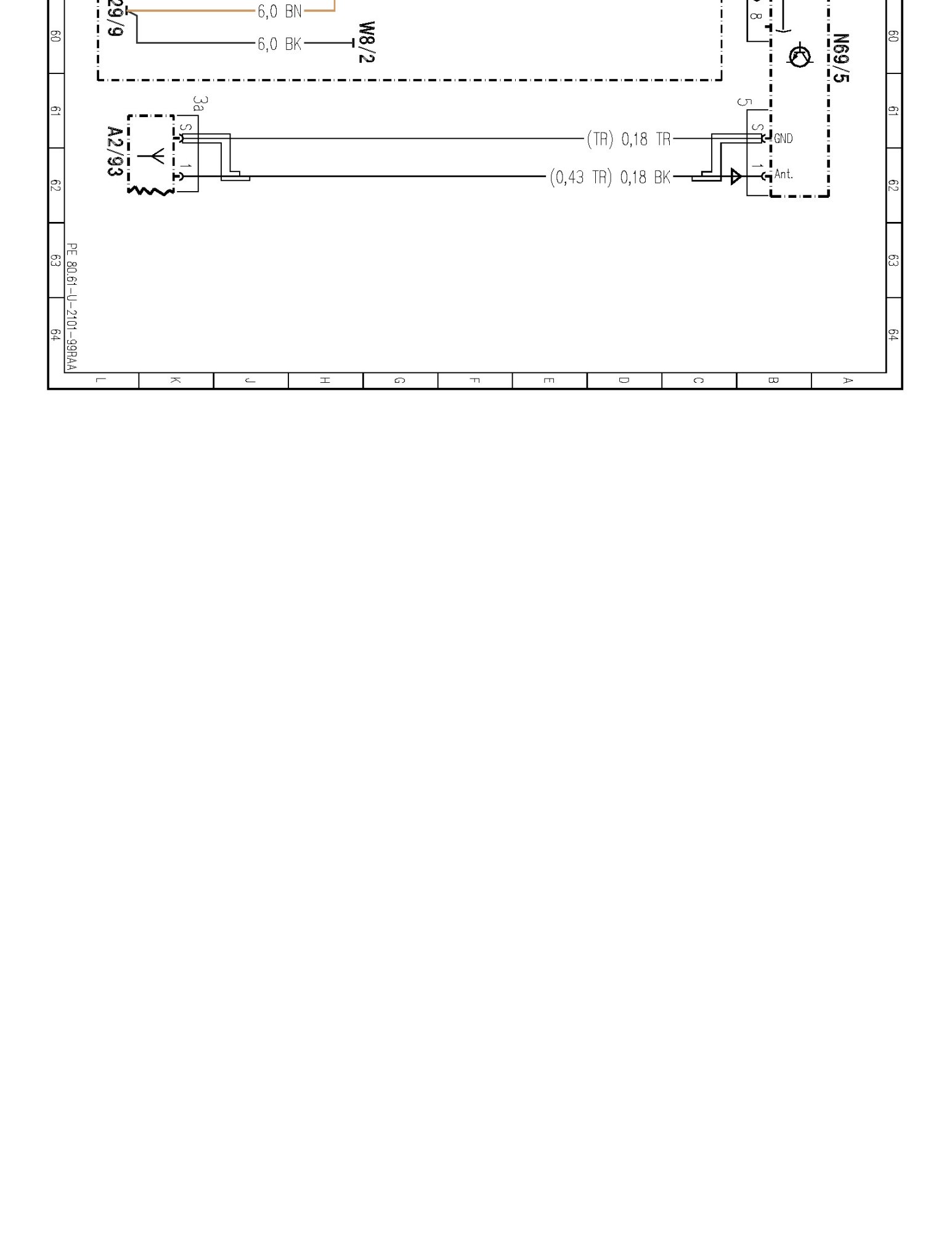

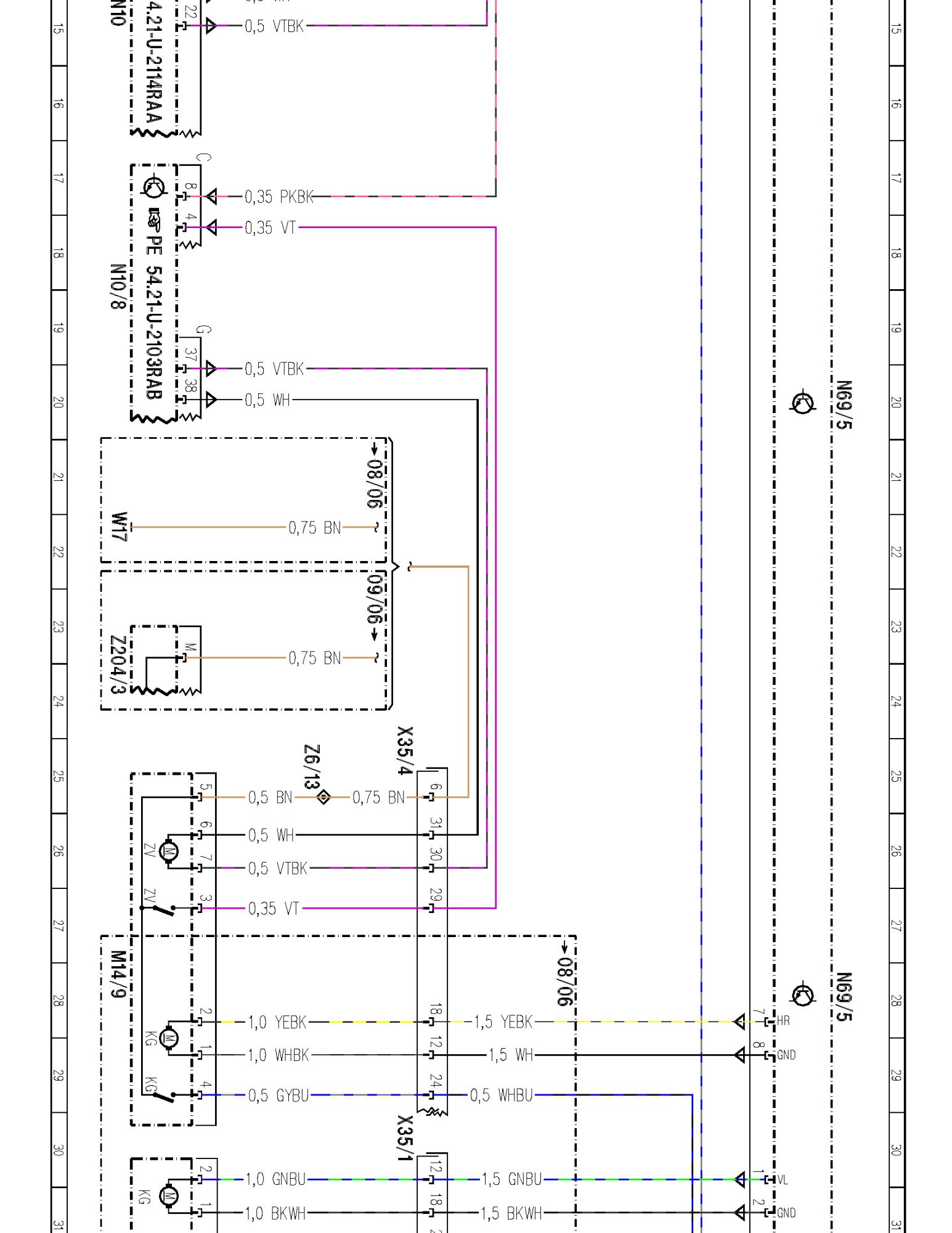

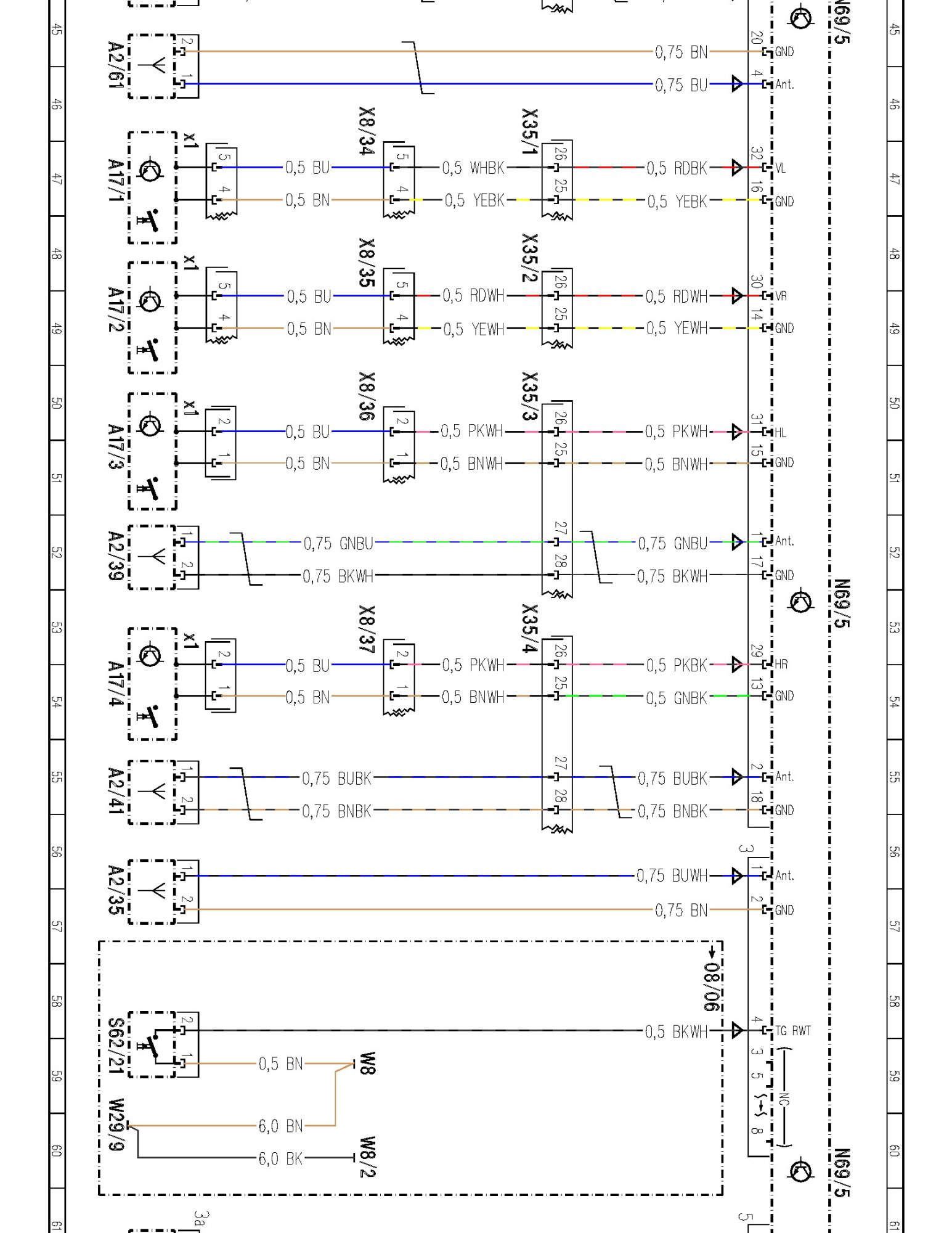

PE80.61-U-2101RAA Keyless Go Control Module
- with CODE (889) Keyless Go
- control unit N69/5

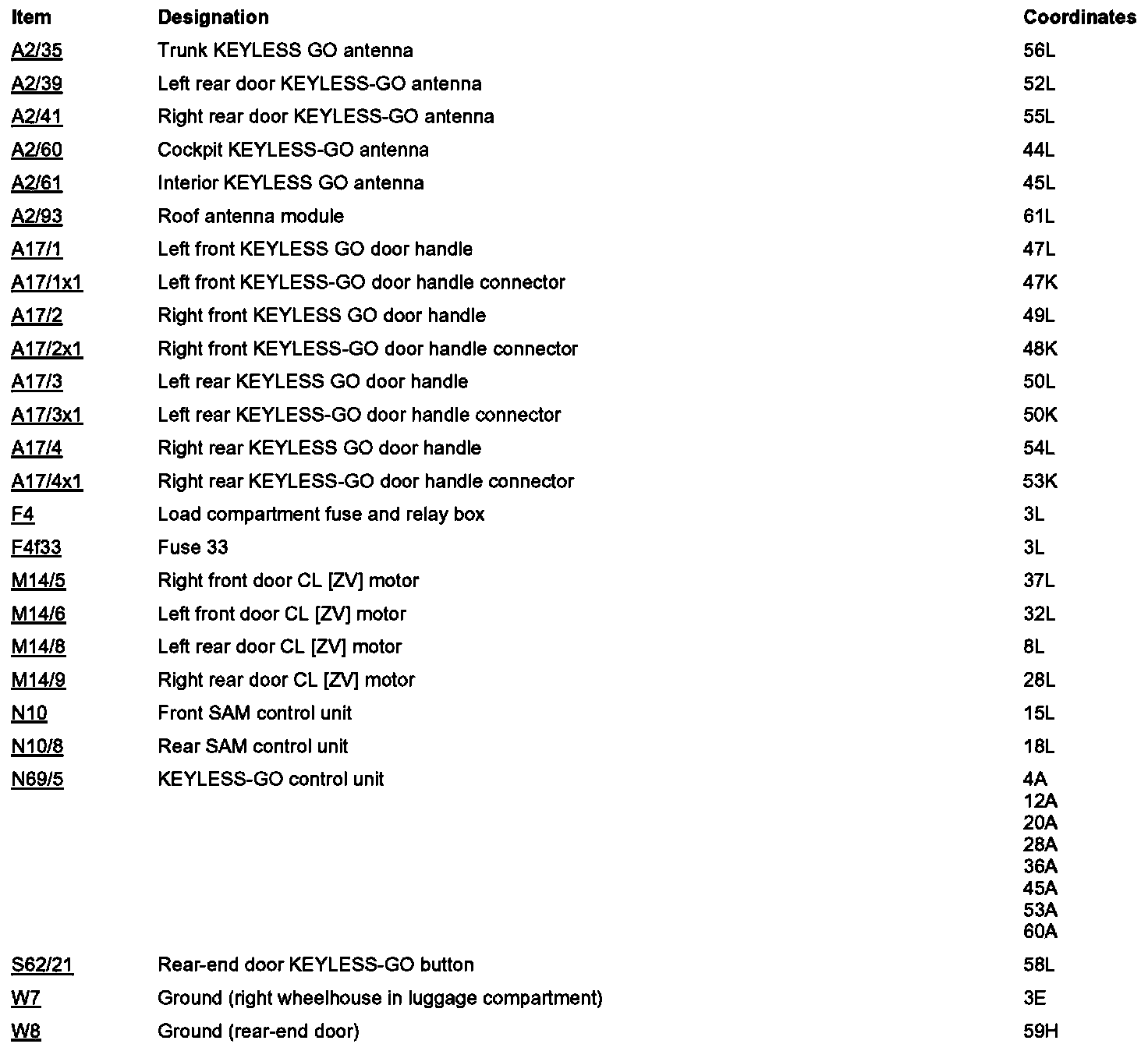

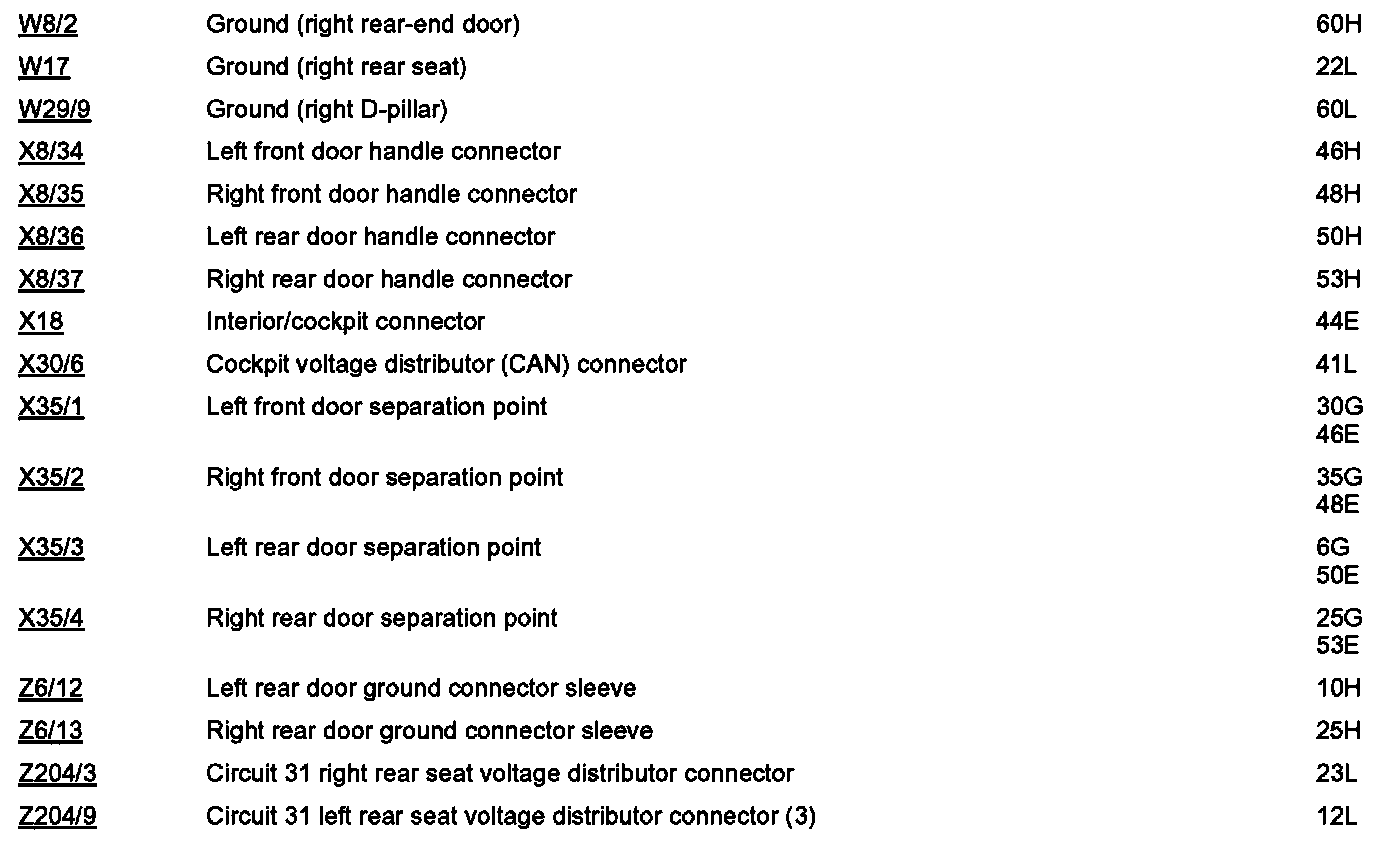

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
