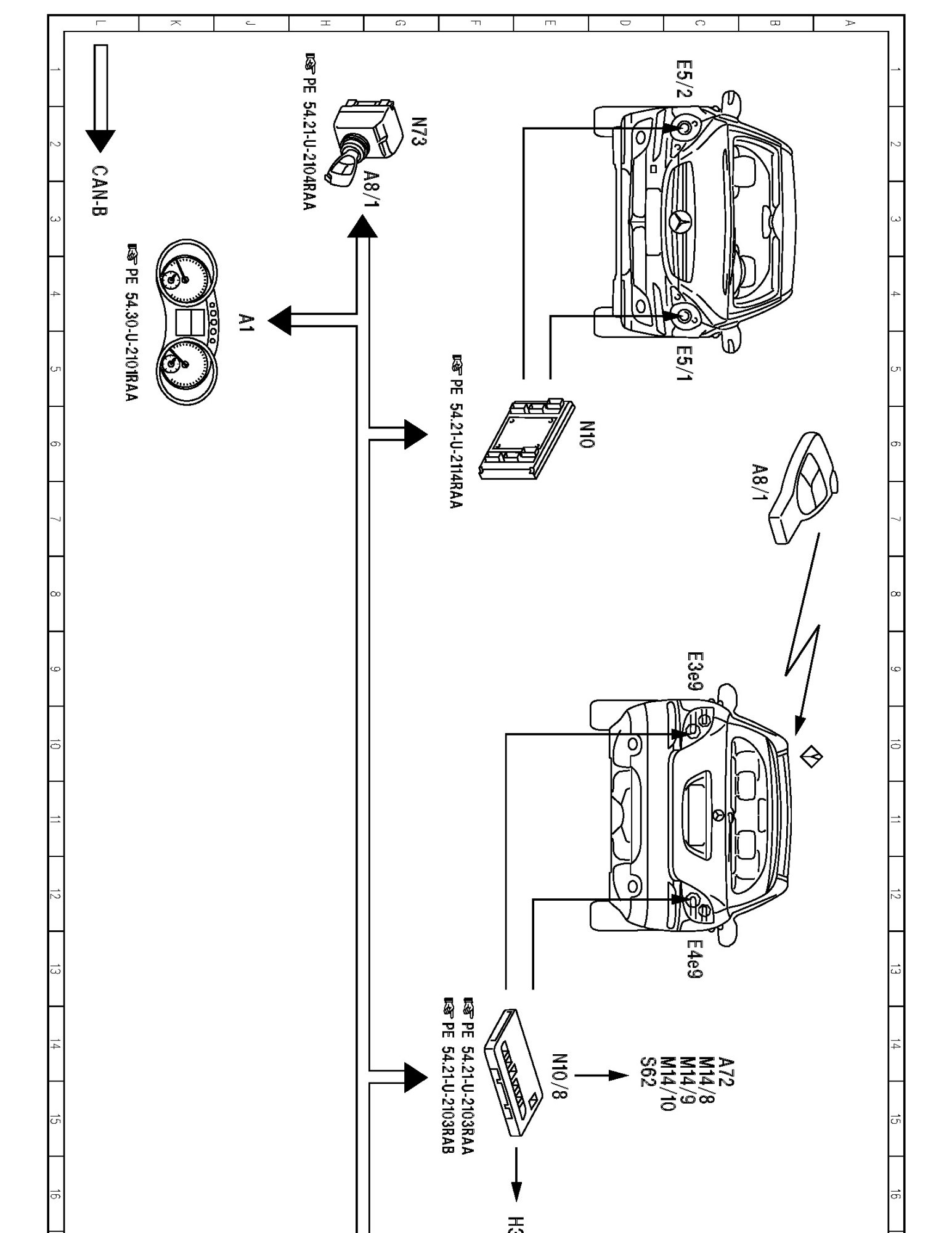

PE80.50-U-2050RAB Function Schematic For Anti-Theft Alarm (ATA) Electrical System

PE80.50-U-2050RAB Function Schematic For Anti-Theft Alarm (ATA) Electrical System
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- up to model year 2008

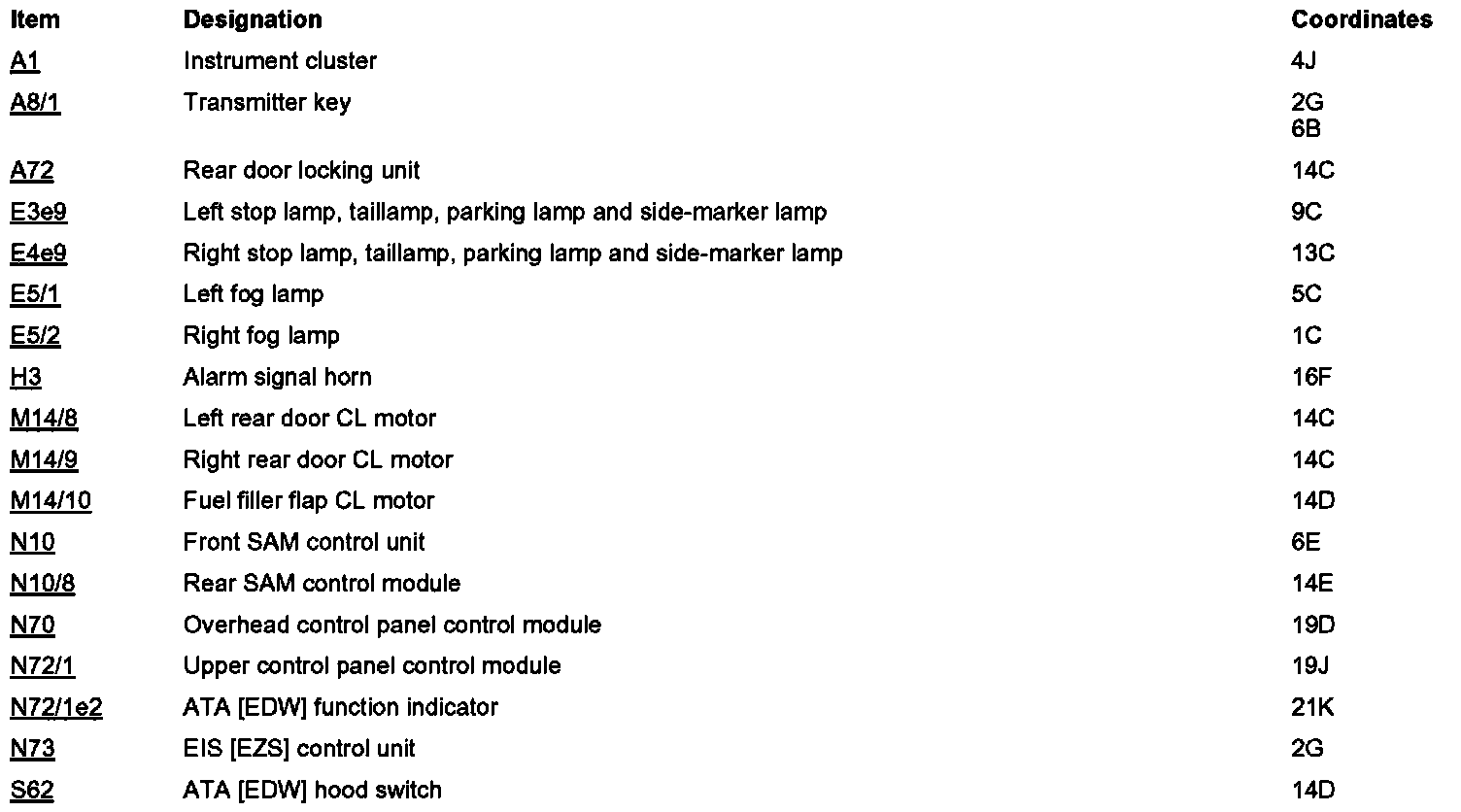

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
