ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>

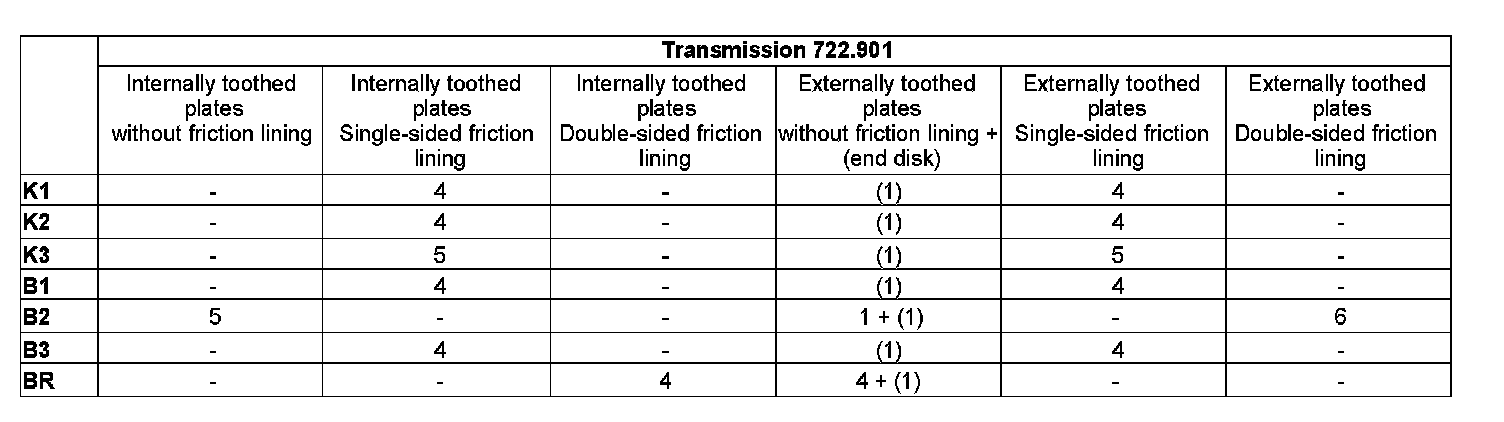

GF27.51-P-5200W Survey of Multi-Disk Components, Production Details
GF27.51-P-5200W Survey of Multi-Disk Components, Production Details
GF27.51-P-5200W Survey of Multi-Disk Components, Production Details
TRANSMISSION 722.9 /9
