Home >> Mercedes Benz Truck >> 2008 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Compressor/Pump >> Locations

Compressor/Pump: Locations



Air Compressor Motor

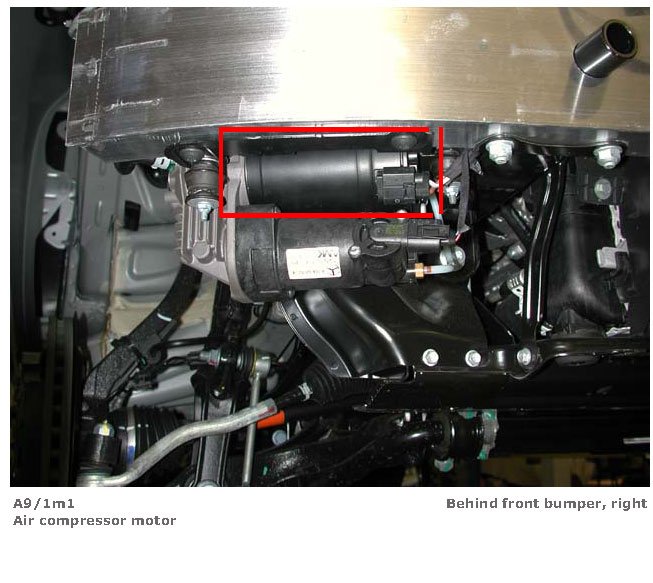

Air Compressor Motor (View 1):

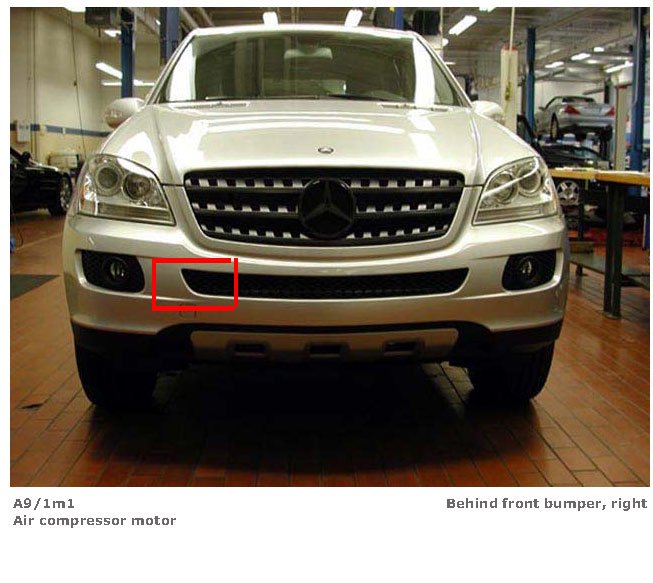

Air Compressor Motor (View 2):
