Air Spring: Service and Repair
AR32.22-P-1500GZ Remove/install air spring
- Vehicle with air suspension

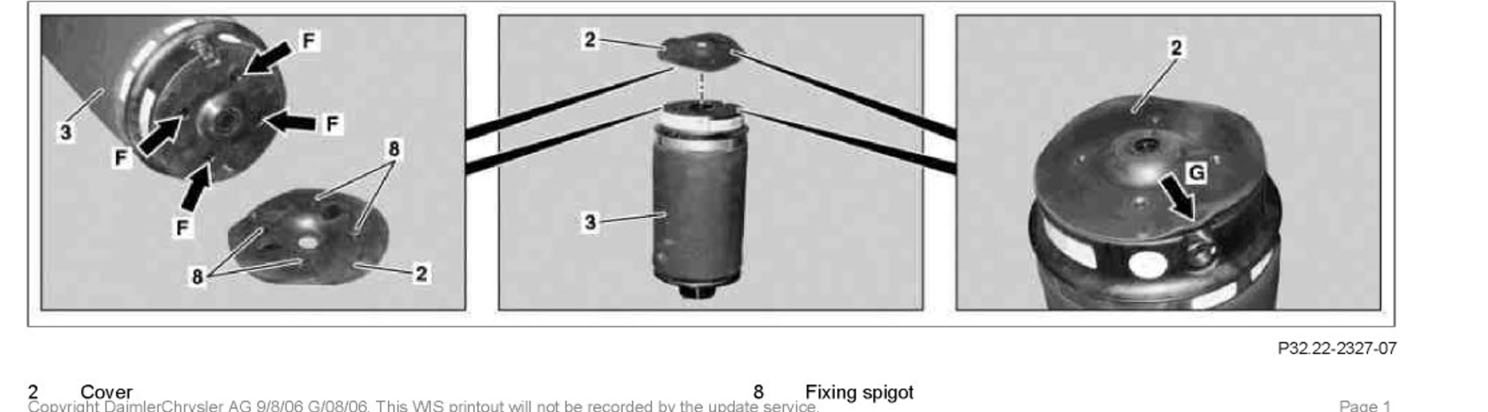

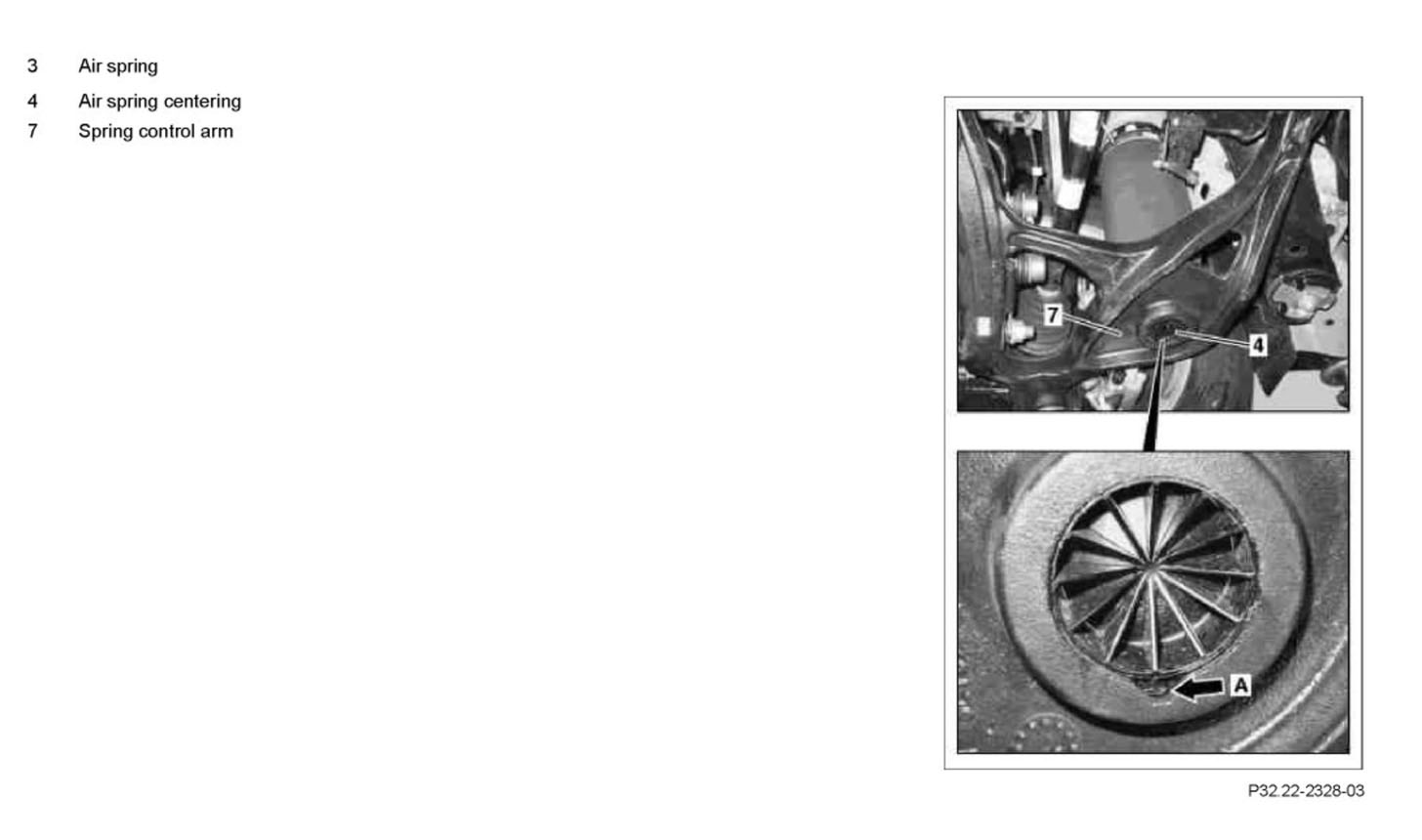

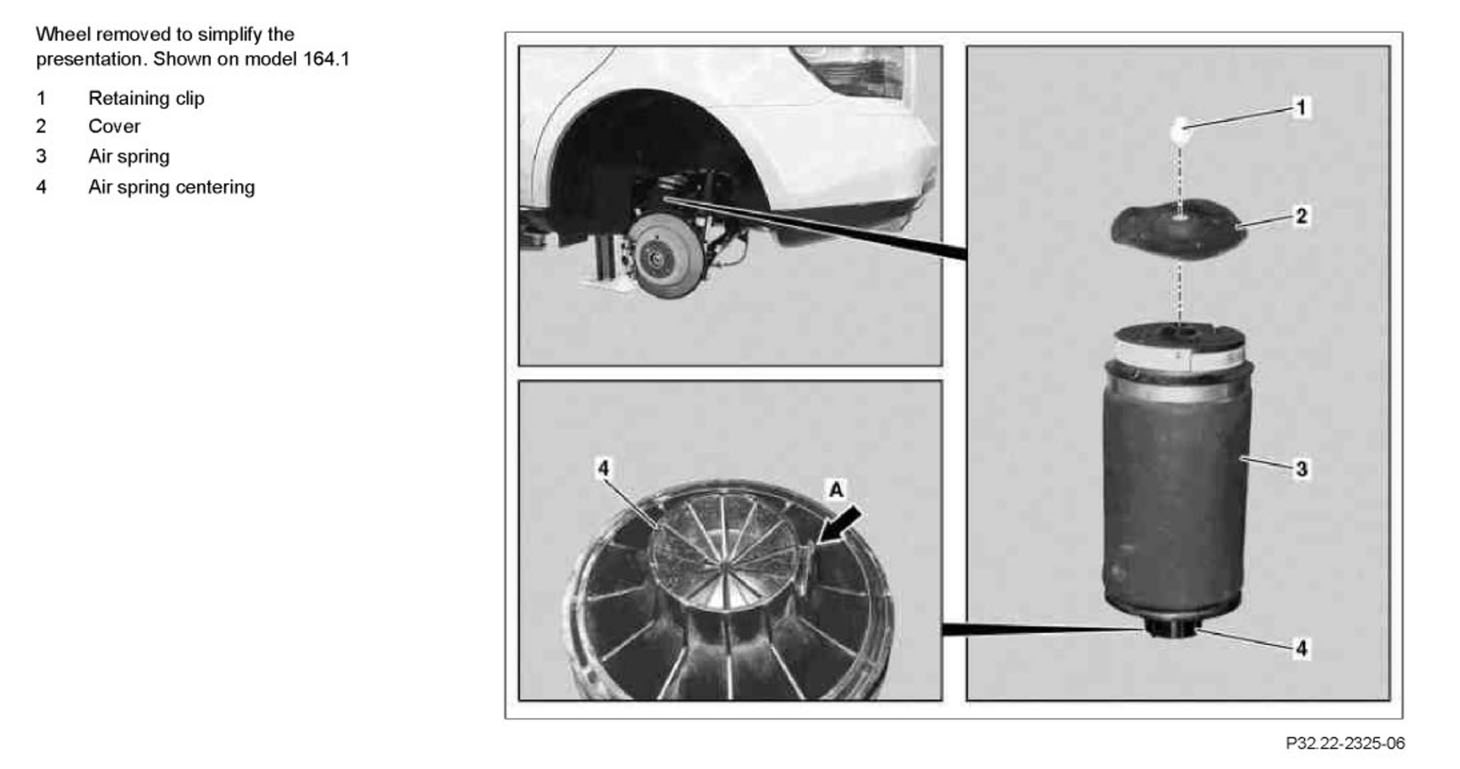

Component Identification:
Component Identification:
Component Identification:
Component Identification:

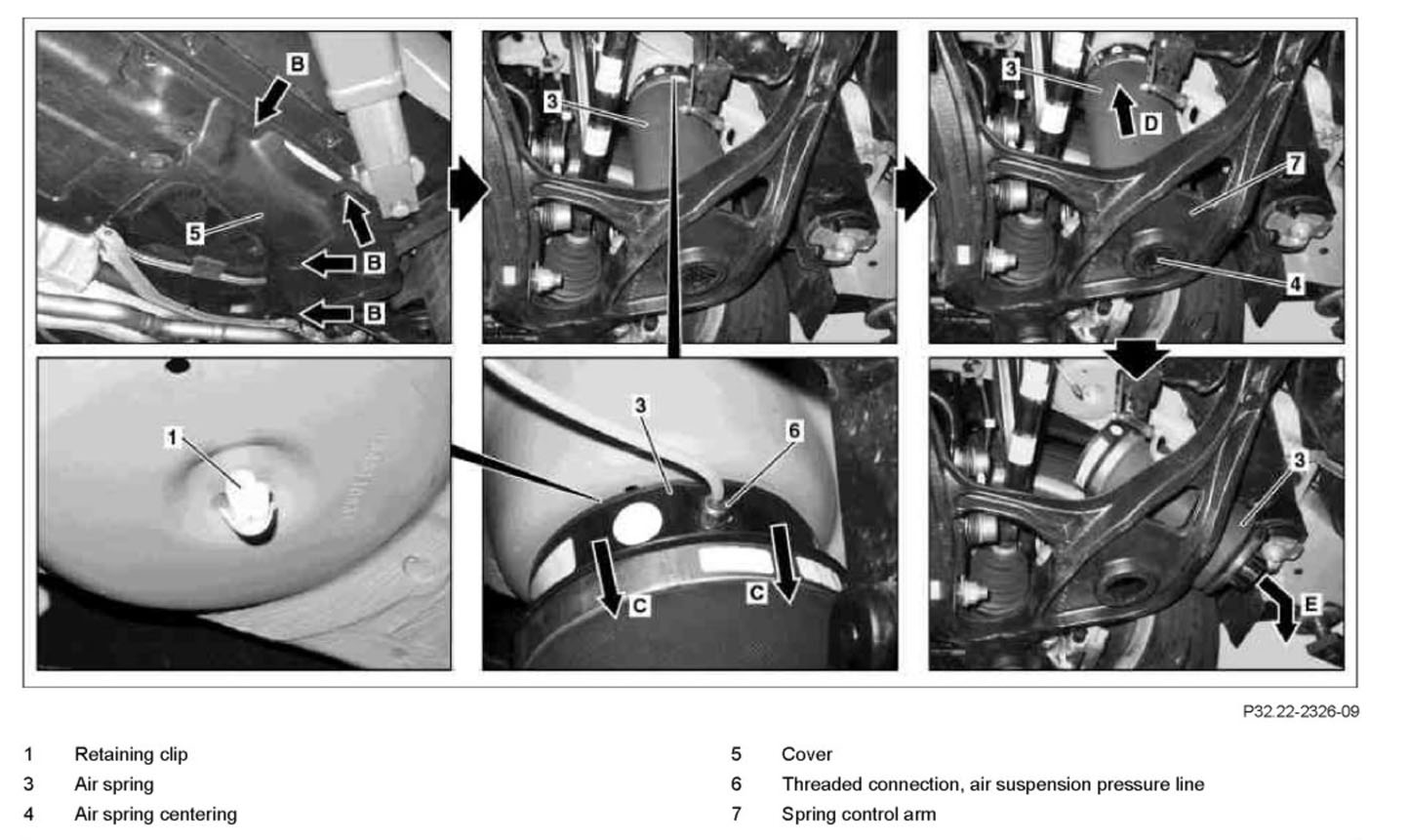

Steps 1-10:

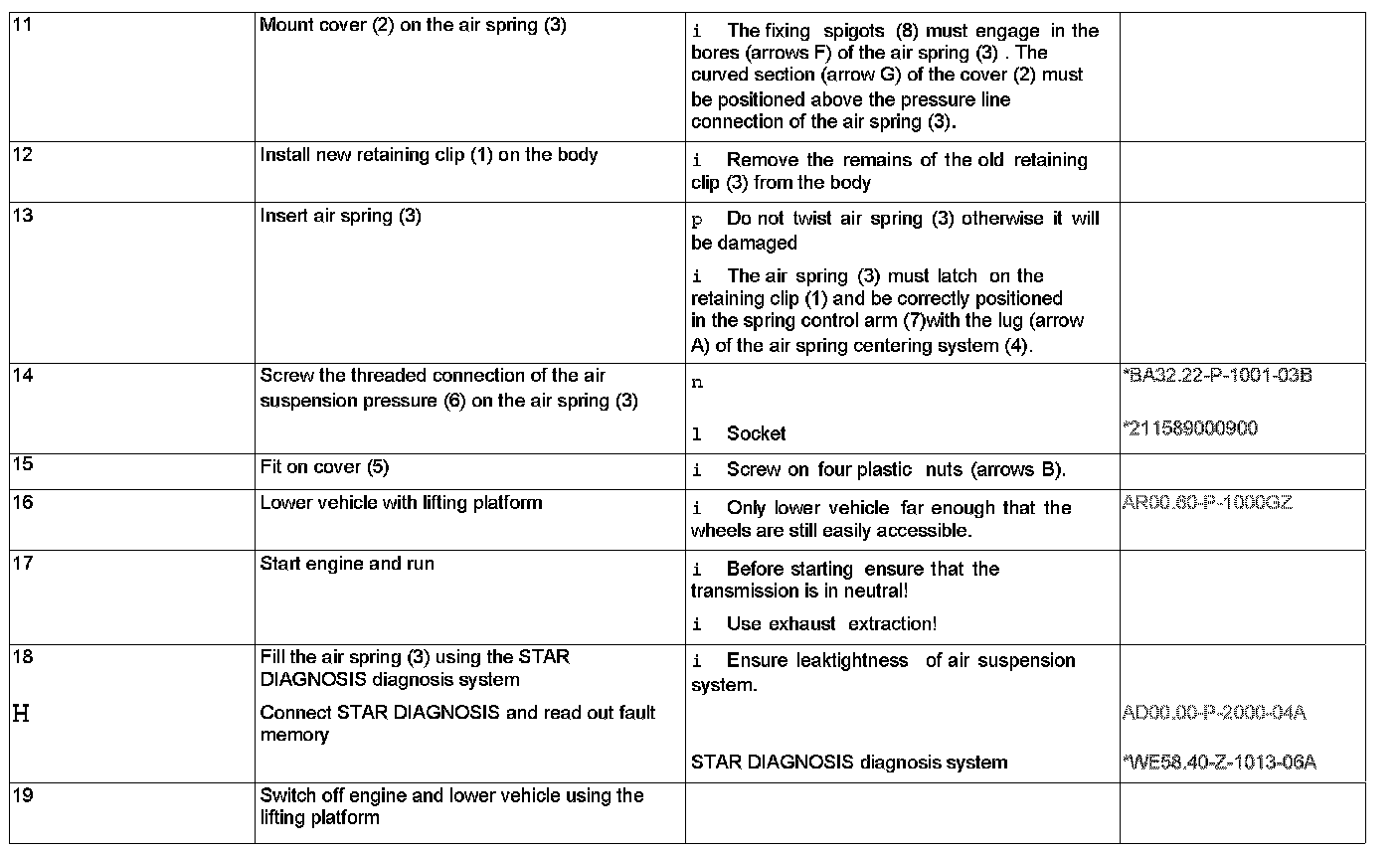

Remove/install Steps 11-19:

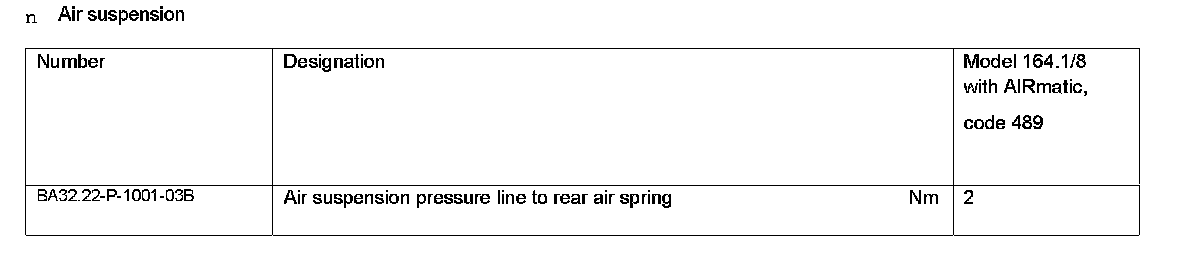

Air Suspension:

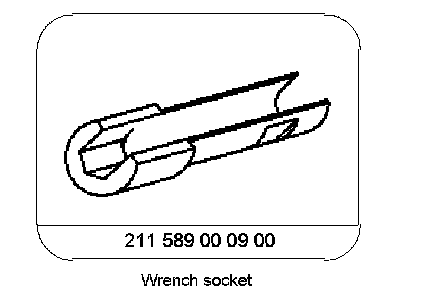

Special Tools:

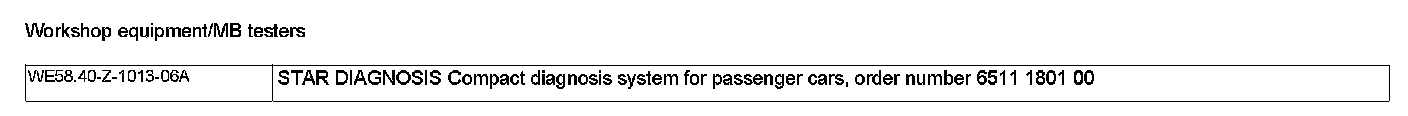

Workshop equipment/MB testers:
