Mercedes Benz Truck
>>
2008
>>
ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Service and Repair
>>
AR54.15-P-1259GZA Remove/Install Housing For Fuse and Relay Box
AR54.15-P-1259GZA Remove/Install Housing For Fuse and Relay Box
AR54.15-P-1259GZA Remove/Install Housing For Fuse And Relay Box
Component Identification:

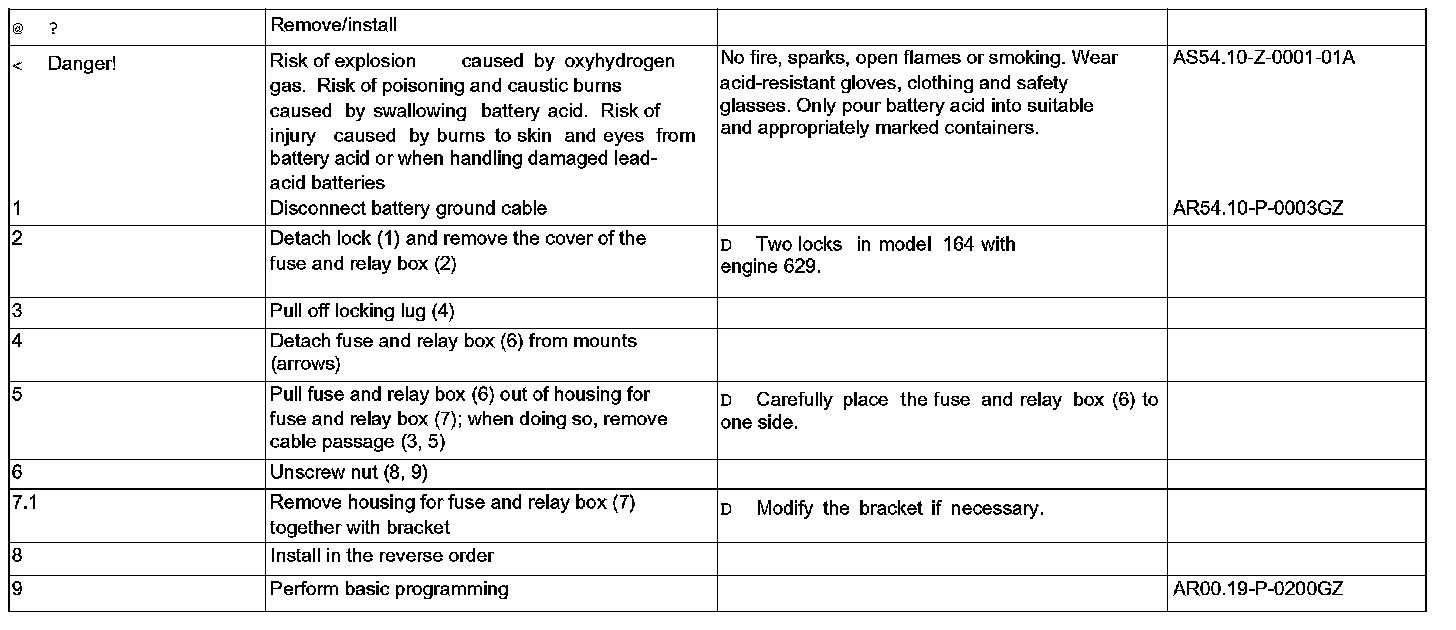

Steps 1 - 9:
