Mercedes Benz Truck
>>
2008
>>
ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>
System Specifications
>>
BA62.30-P-1000-02D Front End With Front Reinforcement
BA62.30-P-1000-02D Front End With Front Reinforcement
BA62.30-P-1000-02D Front End With Front Reinforcement

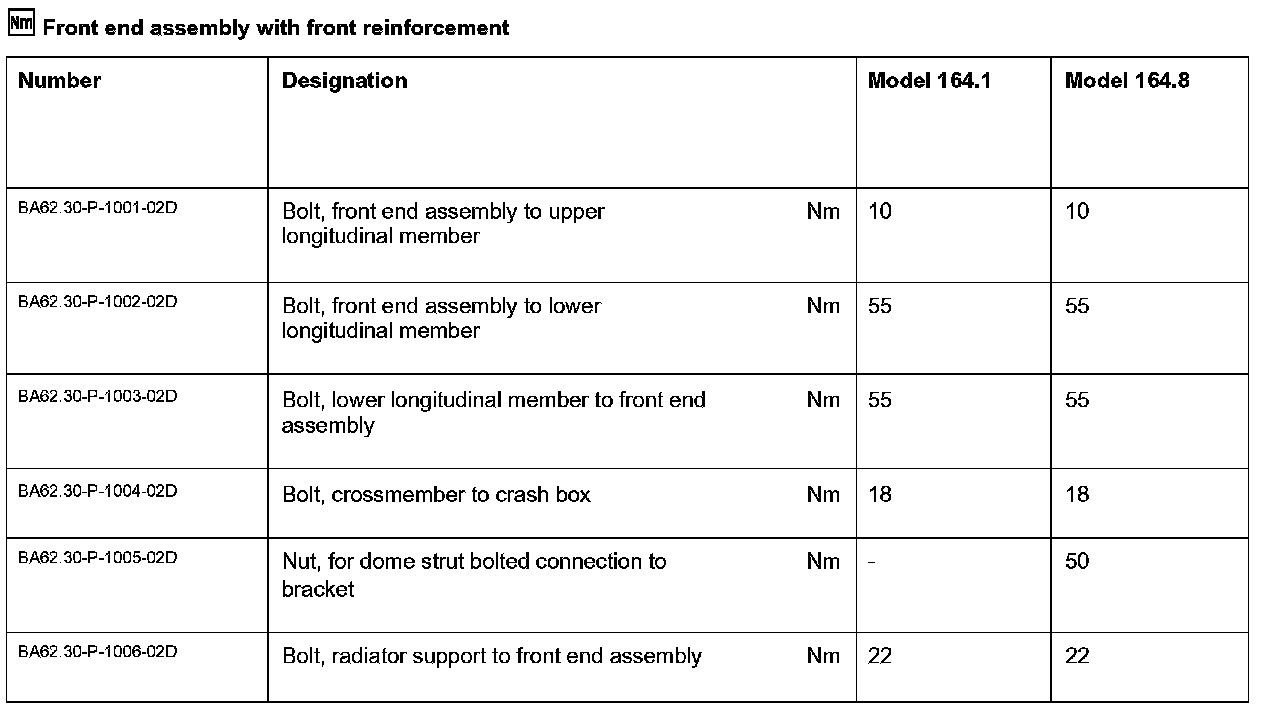

Front End Assembly With Front Reinforcement:
