Washer Fluid Level Switch: Service and Repair



AR82.35-P-6005GZ Remove/Install Fluid Level Sensor For The Windshield Washer System

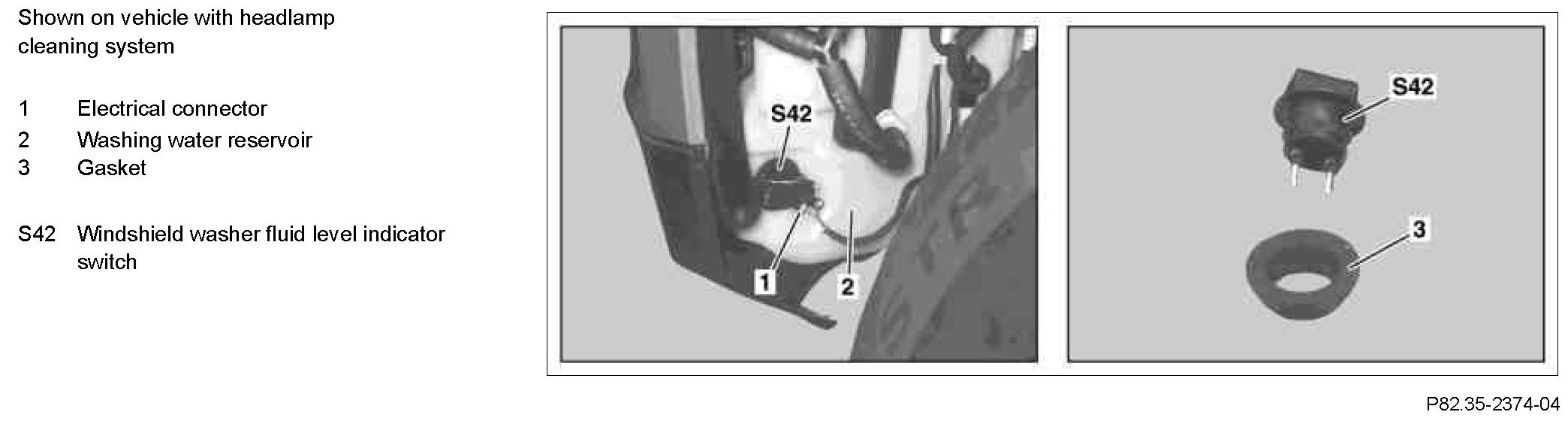

Component Identification:

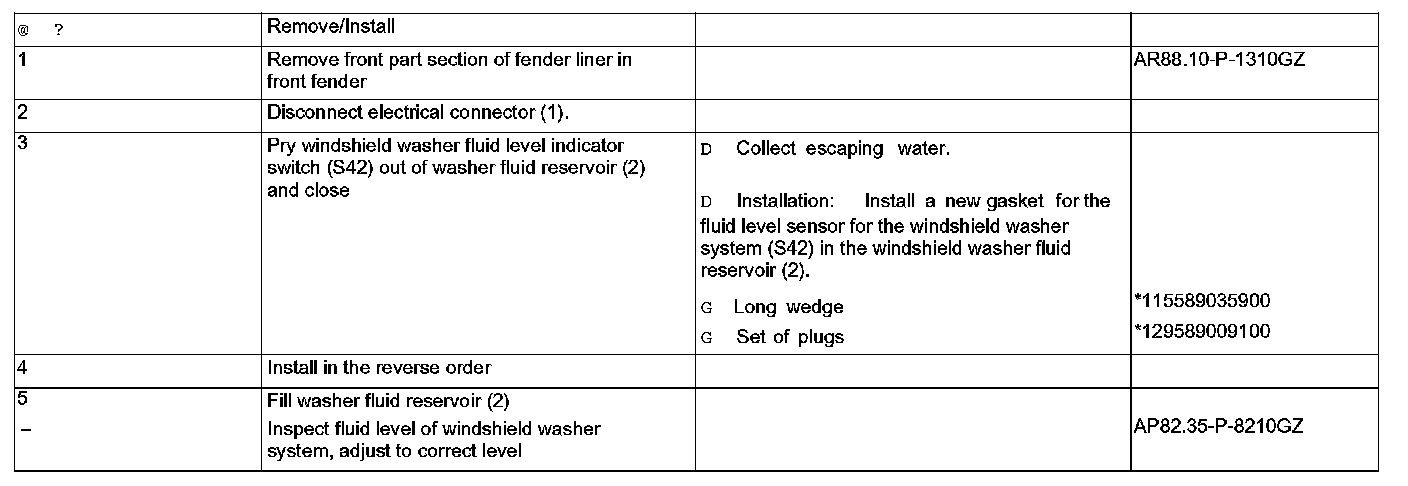

Steps 1 - 5:

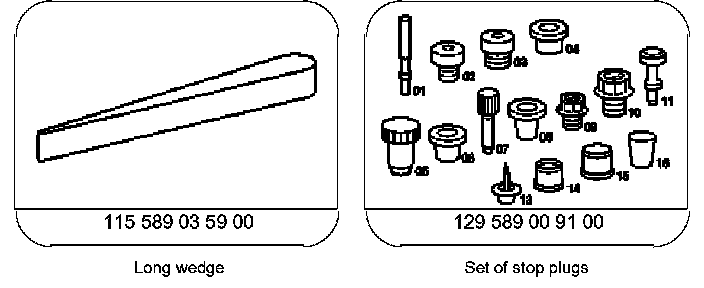

Special Tools:
