Mercedes Benz Truck
>>
2008
>>
ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Windows and Glass
>>
Power Window Switch
>>
Service and Repair
>>
AR72.29-P-0110GZ Remove/Install Front Door Power Window Switch Group
AR72.29-P-0110GZ Remove/Install Front Door Power Window Switch Group
AR72.29-P-0110GZ Remove/Install Front Door
Power Window Switch
Group

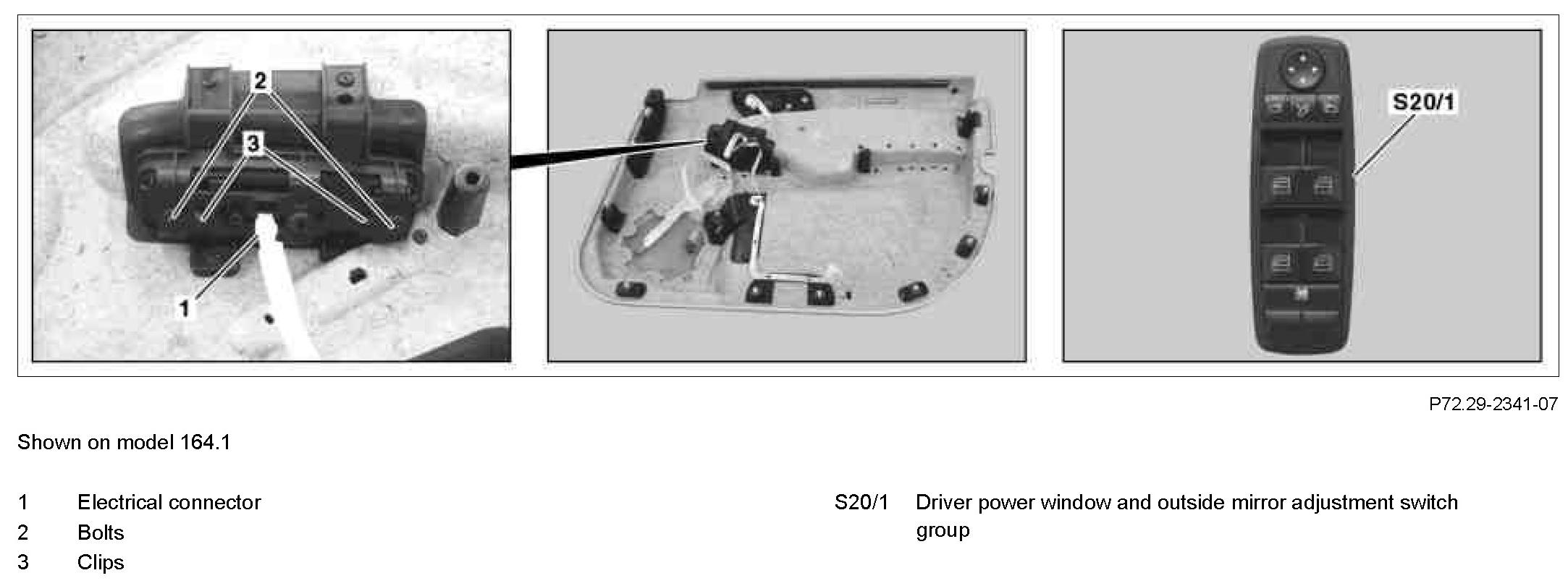

Component Identification:

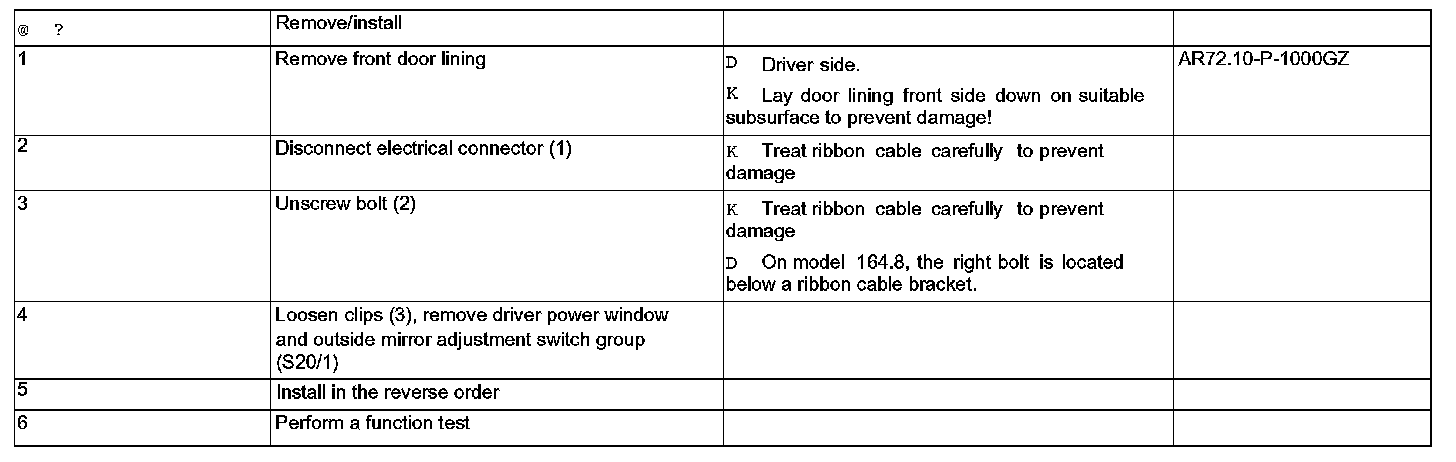

Steps 1 - 6:
