GF91.60-P-4036GZ WSS (Weight Sensing System) Sensor, Component Description

GF91.60-P-4036GZ WSS (Weight Sensing System) Sensor, Component Description
- with CODE (494) USA version

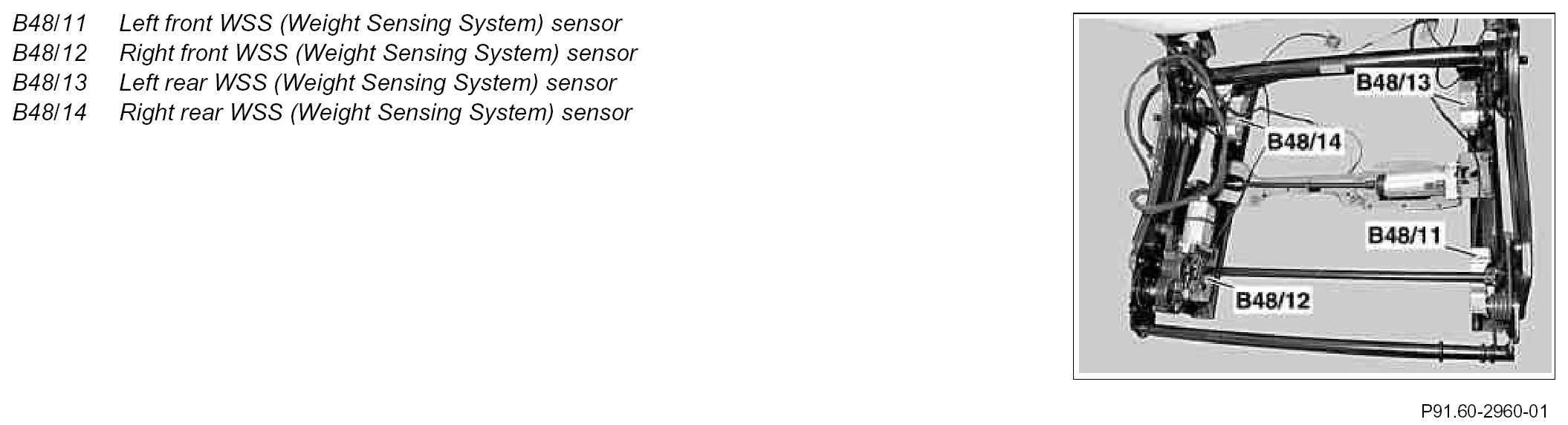

Component Identification:

The WSS (Weight Sensing System) sensors,
^ left front WSS sensor (Weight Sensing System) (B48/11),
^ right front WSS sensor (Weight Sensing System) (B48/12),
^ left rear WSS sensor (Weight Sensing System) (B48/13) and
^ right rear WSS (Weight Sensing System) sensor (B48/14), are located in the front passenger seat frame.

The sensors record the applied weight. The recorded values are sent to the WSS (Weight Sensing System) control unit (N2/13) and called on and evaluated for the triggering of the restraint system.
