Home >> Mercedes Benz Truck >> 2008 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Fuel Delivery and Air Induction >> Fuel Pressure Sensor/Switch >> Service and Repair

Fuel Pressure Sensor/Switch: Service and Repair



AR07.16-P-1055GZB Remove/Install Rail Pressure Sensor

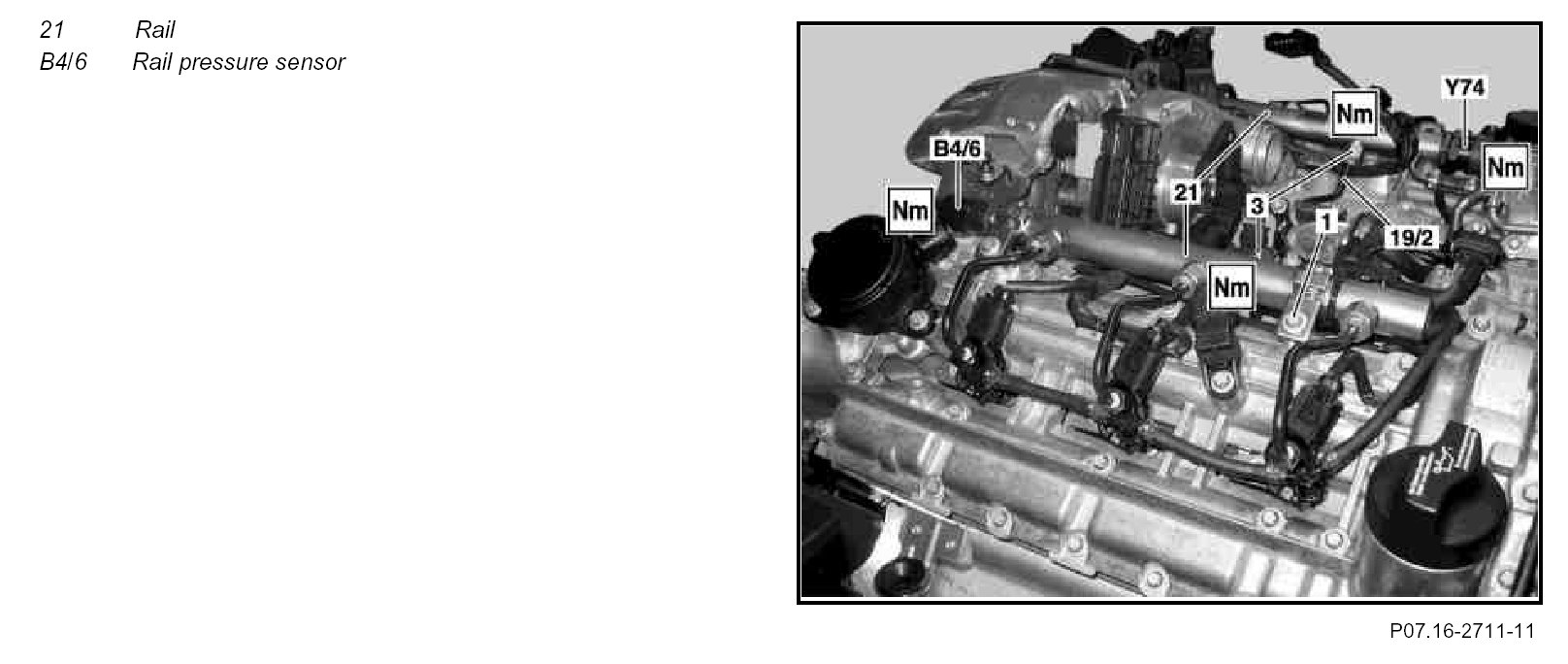

Component Identification:

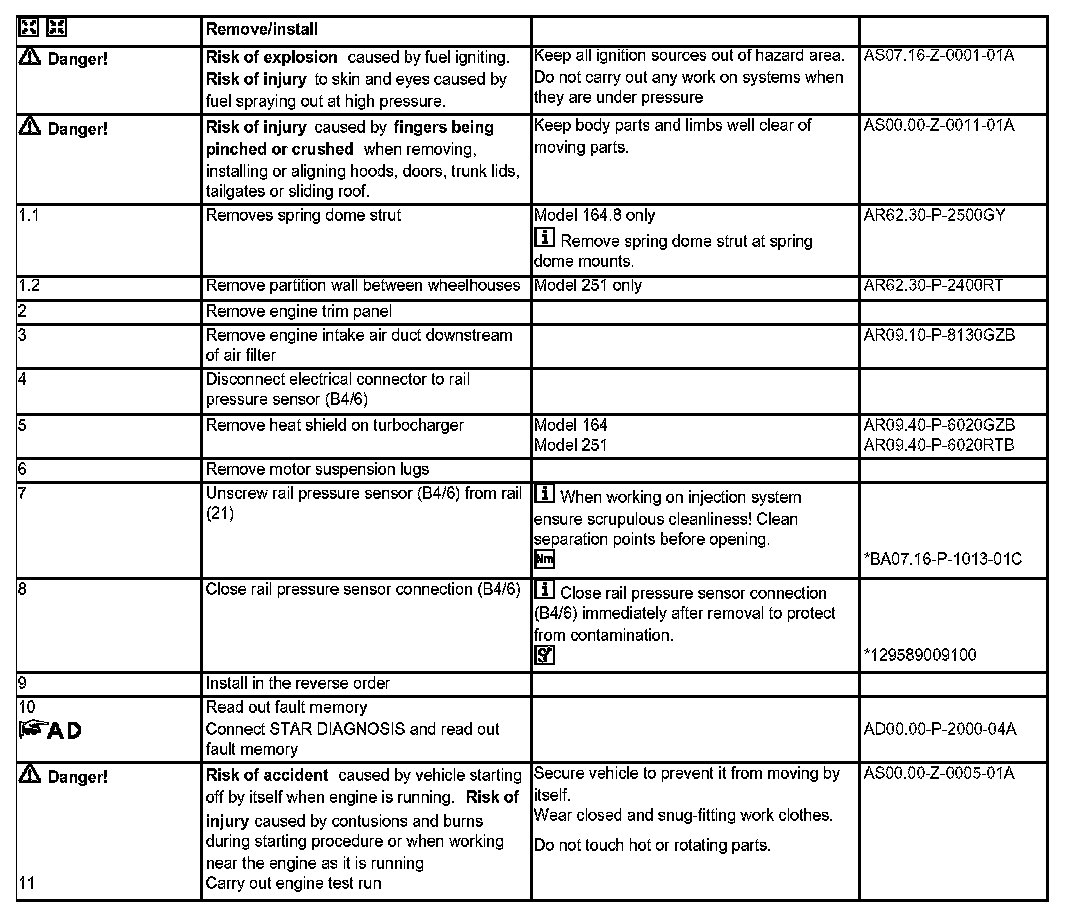

Steps 1.1 - 11:




Common Rail Diesel Injection (CDI):

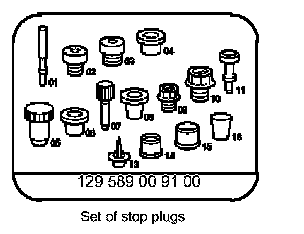

Special Tools:
