AR82.10-P-0005GZ Remove/Install Rear Axle Level Sensor



AR82.10-P-0005GZ Remove/Install Rear Axle Level Sensor

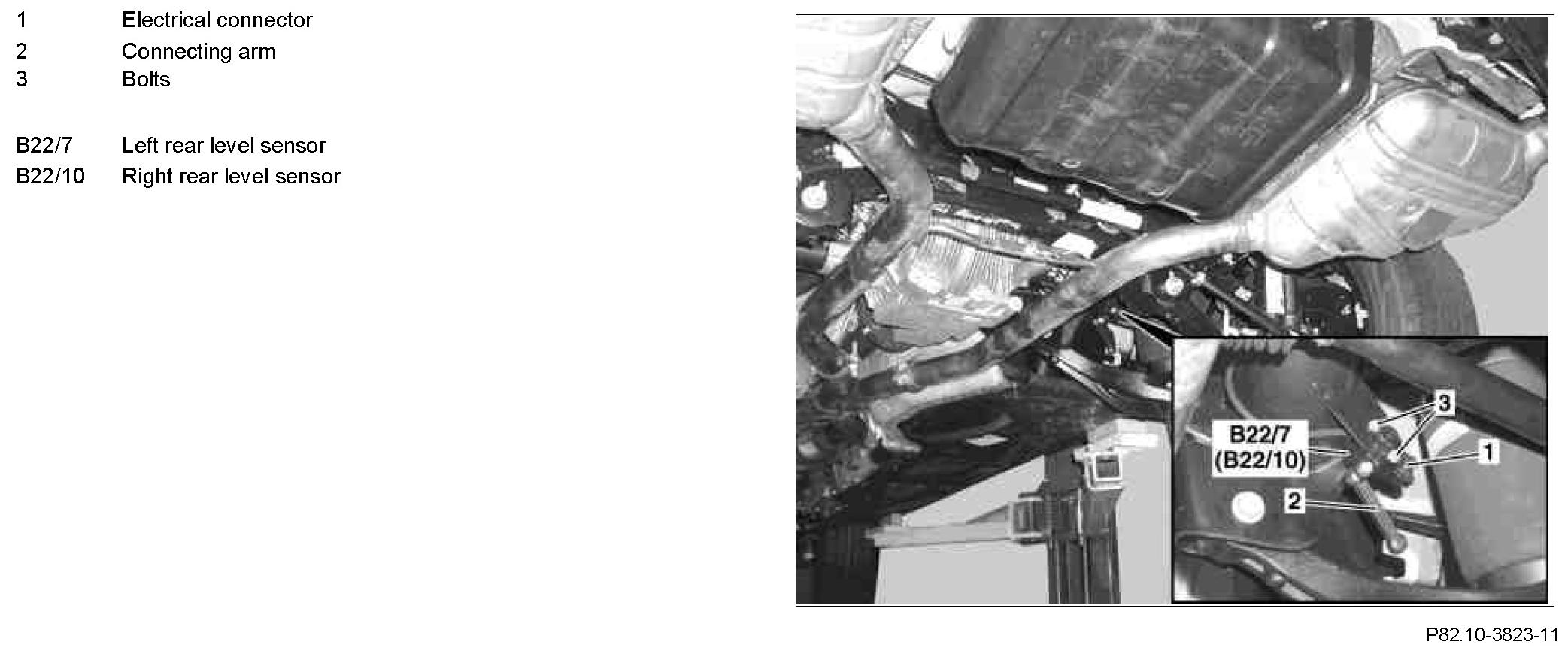

Component Identification:

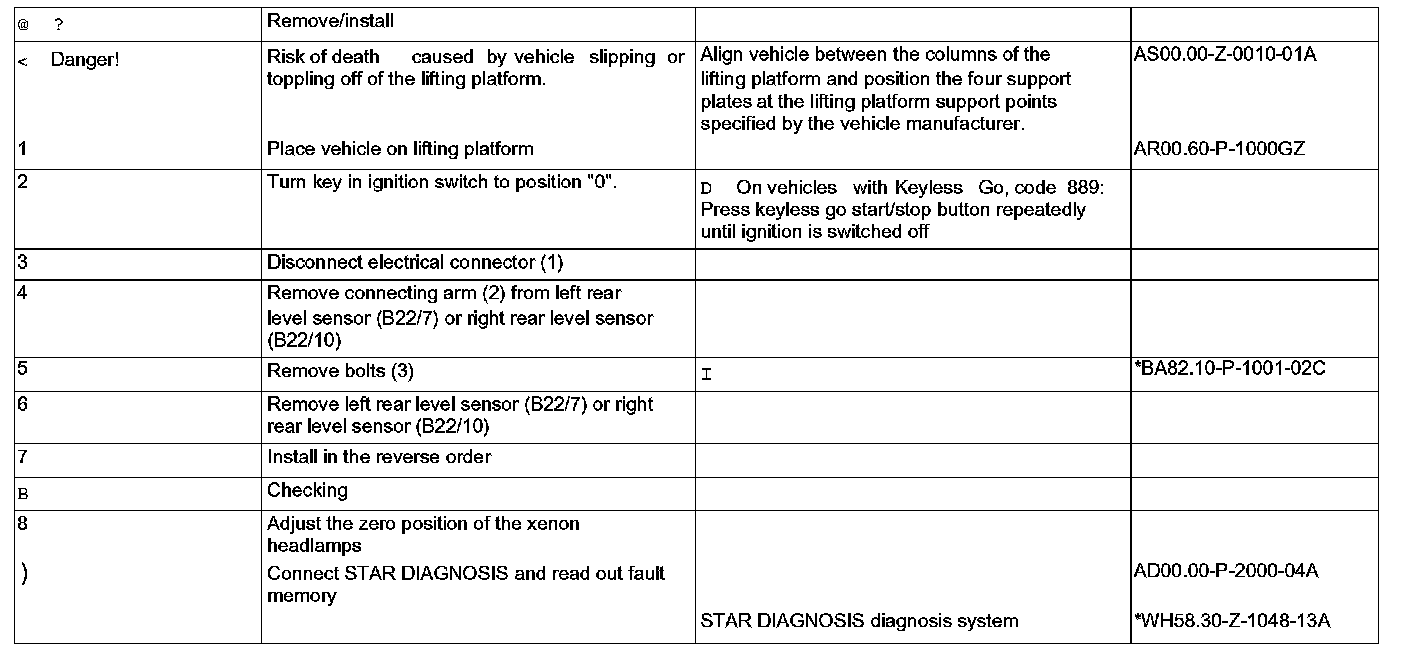

Steps 1 - 8:

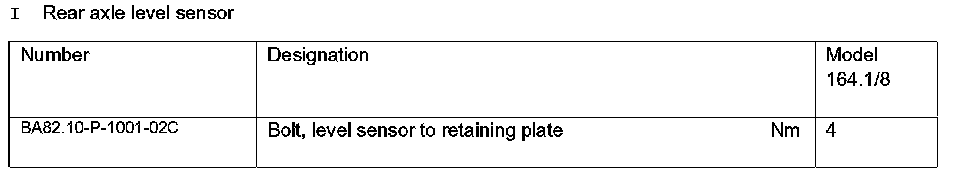

Rear Axle Level Sensor:

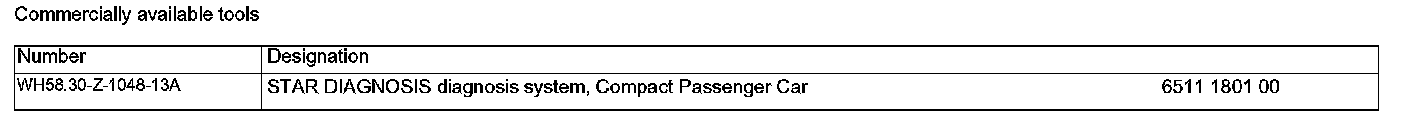

Commercially Available Tools:
