Refrigerant Pressure Sensor / Switch: Description and Operation

GF83.40-P-2193GZ Refrigerant Pressure Sensor, Component Description

Component Identification:

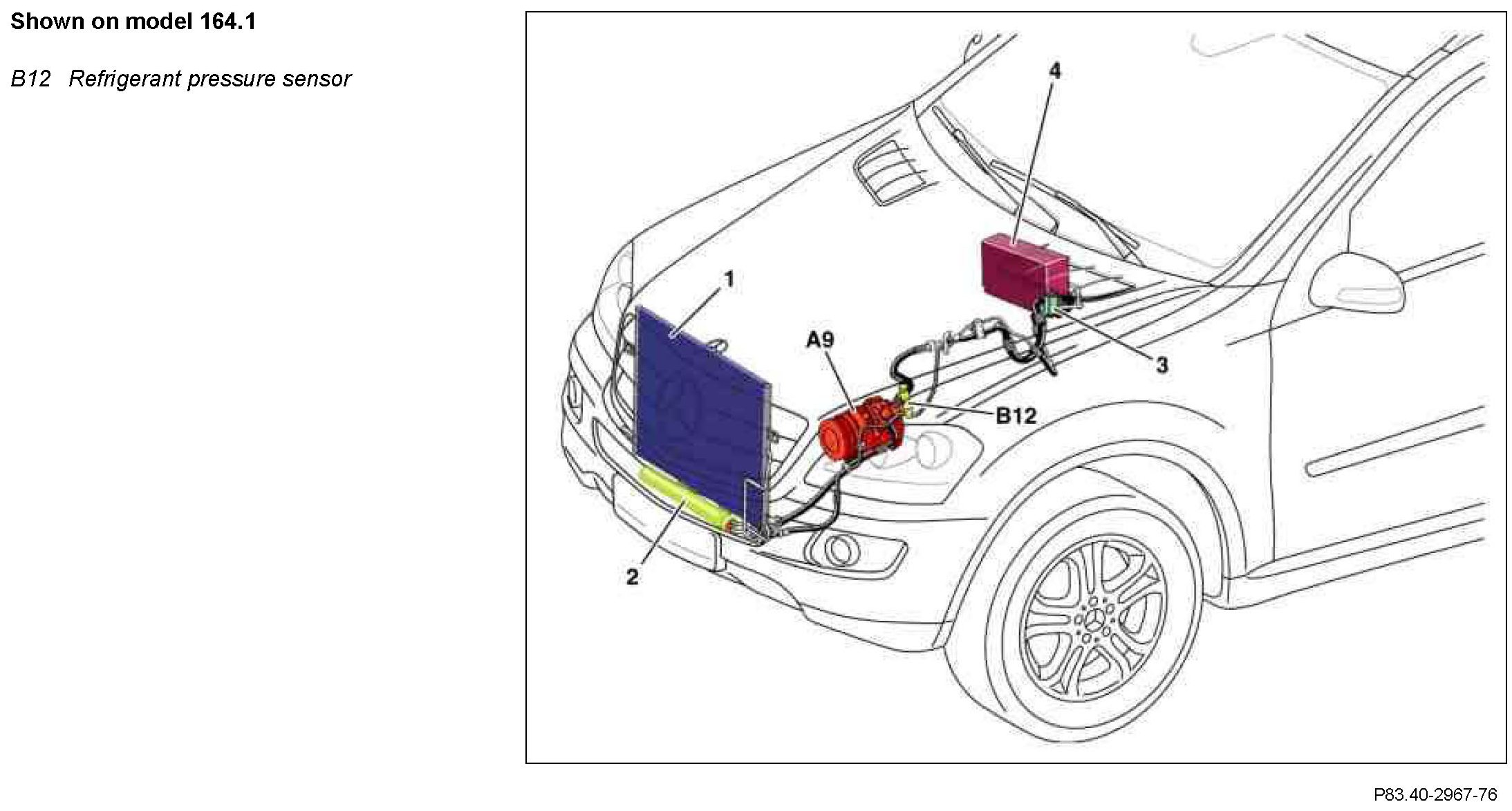

Location
The refrigerant pressure sensor is located in the engine compartment at the front left on the high pressure line between the refrigerant compressor (A9) and condenser.

Task
The refrigerant pressure sensor serves for measuring the refrigerant pressure. The reading is read in by the AAC control and operating unit (N22) or comfort AAC control and operating unit (N22/7).
