GF83.57-P-2127GZK In-Car Temperature Sensor, Component Description

GF83.57-P-2127GZK In-car Temperature Sensor, Component Description
- with CODE (581) Comfort automatic air conditioning [models 164.1/8]

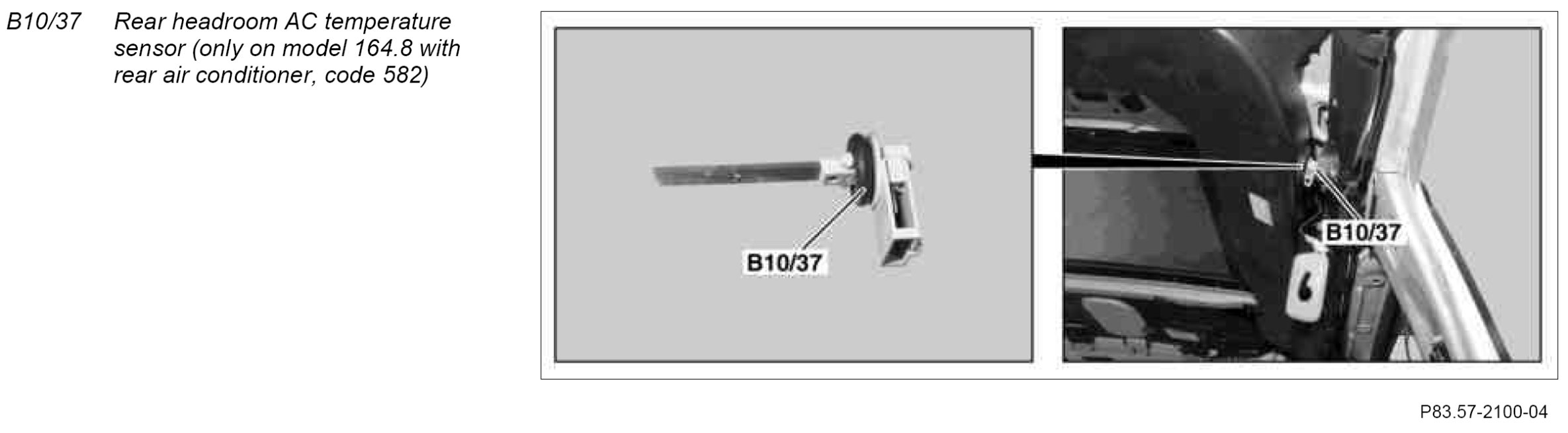

- with CODE (582) Rear air conditioner [models 164.8]

Component Identification:

Location

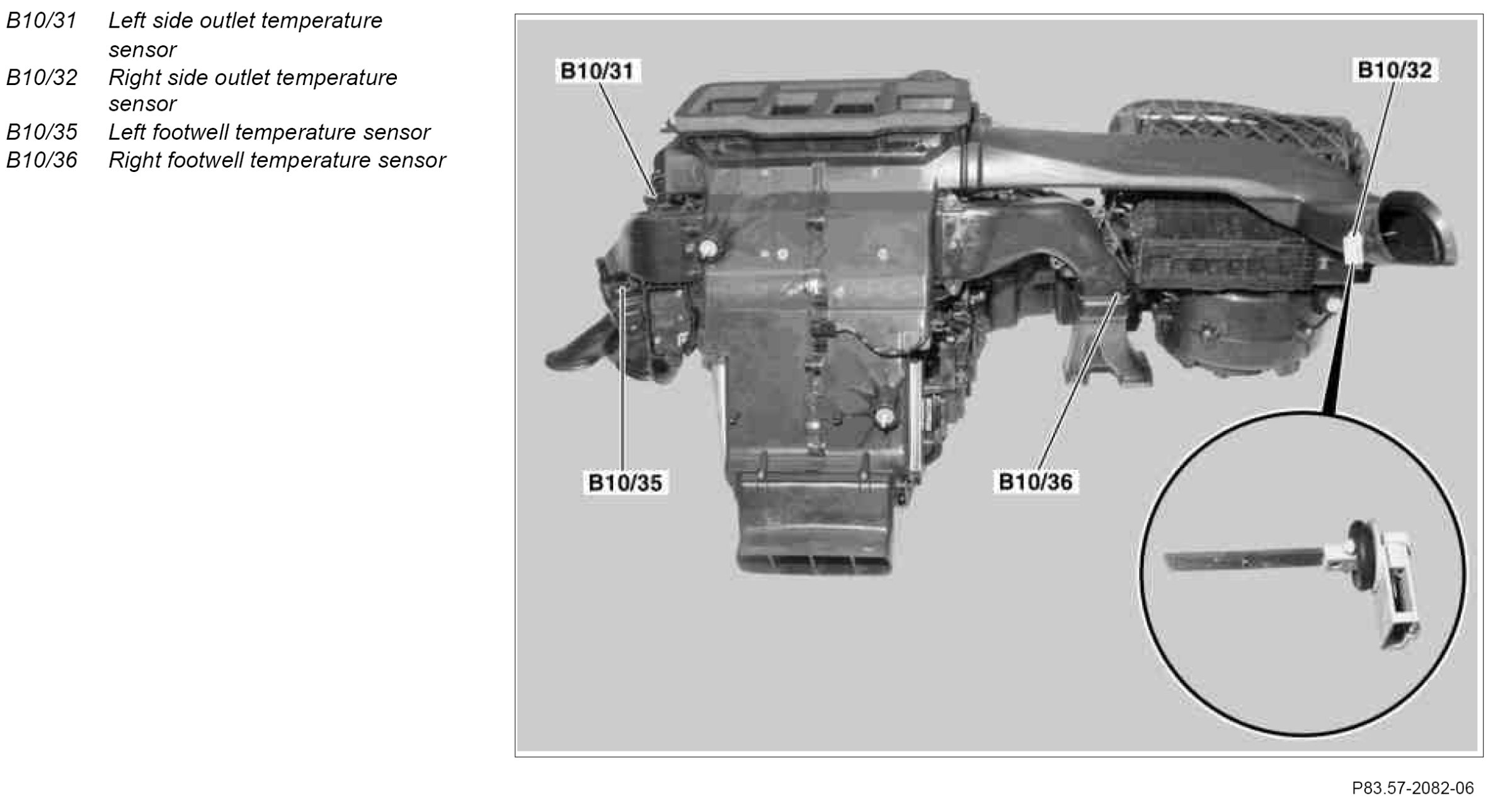

The air conditioning temperature sensors are installed in the individual air outlet ducts, as shown in the figure.

Component Identification:

Location

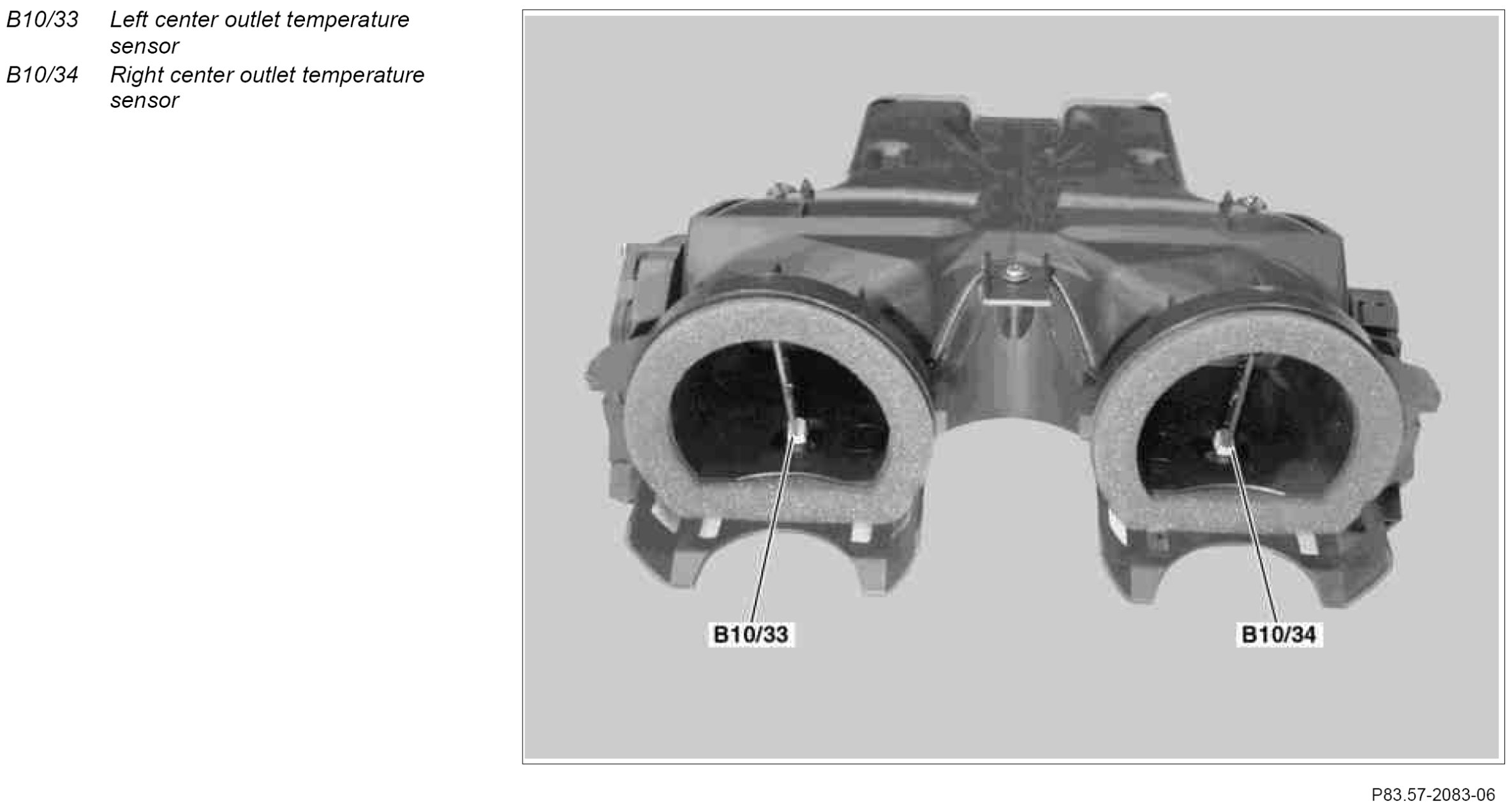

The center outlet temperature sensors are installed as shown in the figure.

Component Identification:

Location

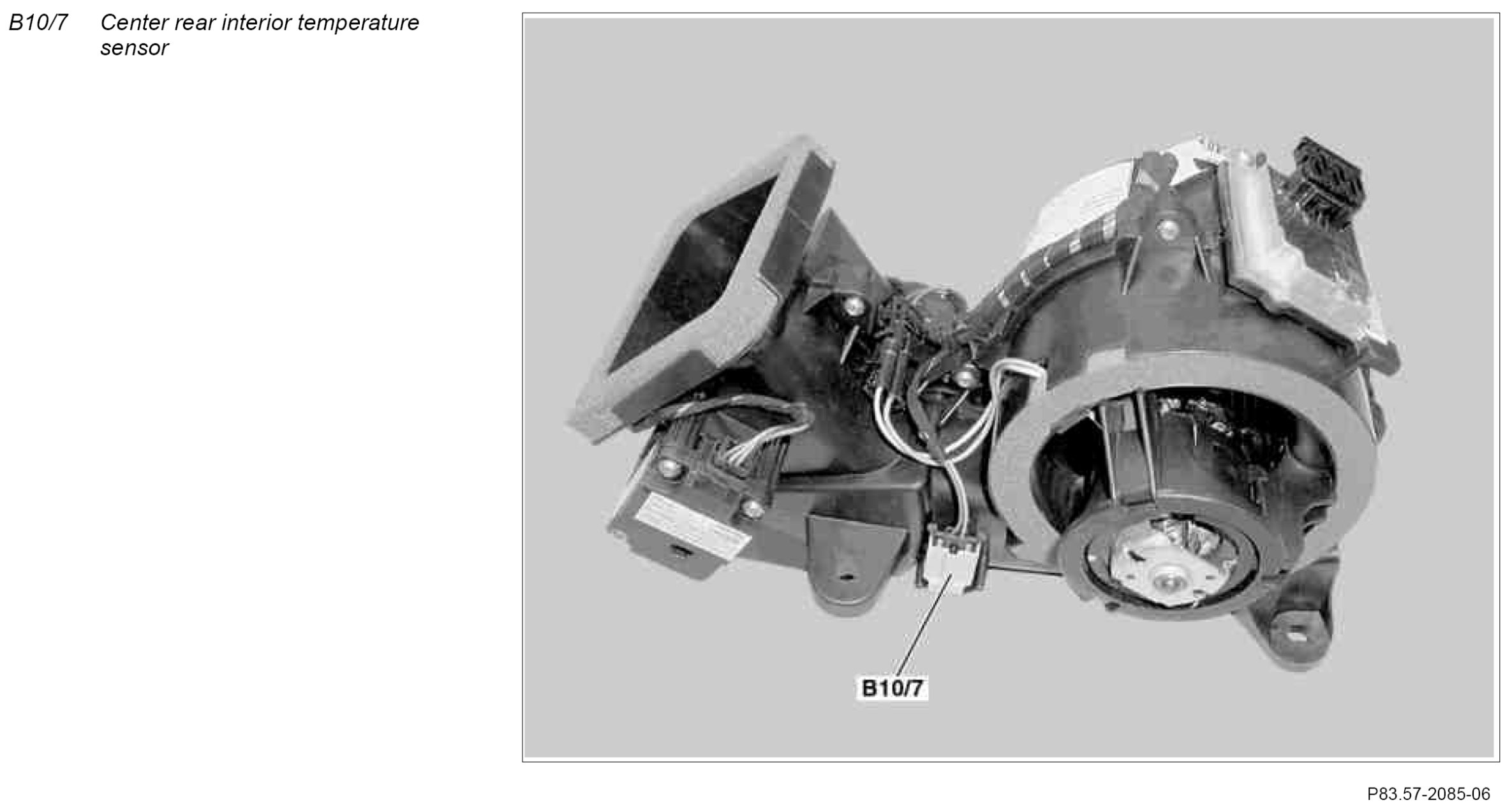

The center rear interior temperature sensor is installed as follows in the adjoining picture.

Component Identification:

Task
The temperature sensors measure the temperature of the discharged air at the particular air flap and forward them to the comfort AAC [KLA] control and operating unit (N22/7).

The comfort AAC control and operating unit compares the measured temperature value of the discharged air to the setting on the temperature selector wheel. The blending air flap is readjusted, depending on the result. In addition, this also measures the recirculated interior temperature.
